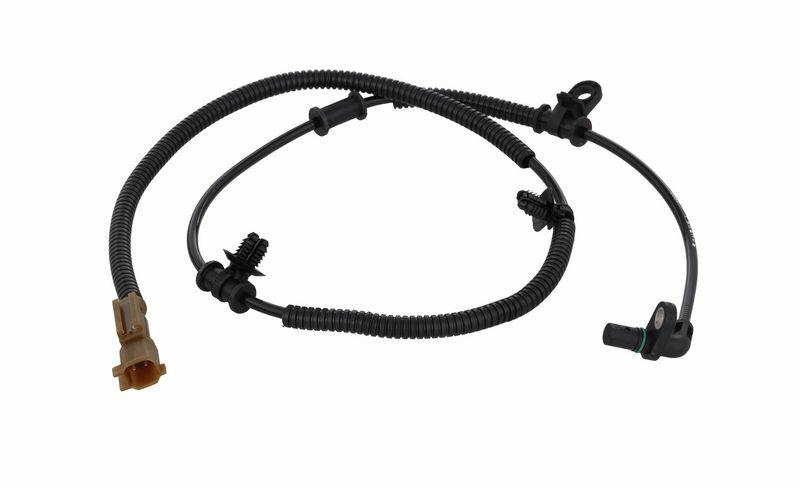

Bosch 0265004569 ABS Wheel Speed Sensor - Front
| Brand | Bosch 0265004569 |
|---|---|
| Position | Front |
| Length | 900 |
| Wiring Harness Length | 815 |
| Terminal Type | Pin |
| Mounting Hardware Included | Yes |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Terminal Quantity | 2 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Automotive Item Weight (lbs) | 0.178574 lb |
| Private Brand? | No |
| Product Length | 35.433071 in |
| Product line | ABS Wheel Speed Sensor |
| Fits | Ford · 3 vehicles |
OE-style replacement. Built as an ABS wheel speed sensor for direct service on the specified application.
Square connector design. Single-connector layout with male terminals for a clean electrical connection.
Long lead length. 900 mm sensor lead with an 815 mm wiring harness length for routing flexibility.
Cross-references FL3Z2C204A for the same application. See all 1.
ABS Wheel Speed Sensor for Ford F-150
Bosch ABS Wheel Speed Sensor 0265004569 is a direct-fit brake sensor for the front axle on select Ford F-150 applications. It is built around a square connector, male terminals, and a single-connector layout for a straightforward replacement.
Key Features
- Fits 2015-2017 Ford F-150, front.
- ABS wheel speed sensor for brake system signal monitoring.
- Square connector with male connector and male terminal design.
- Pin terminal type with two terminals for the specified application.
- Includes mounting hardware.
- Part number 0265004569 for accurate ordering and lookup.
Detailed Description
This Bosch wheel speed sensor is intended for vehicles that rely on accurate wheel-speed input for ABS operation. The sensor uses a 900 mm lead length and an 815 mm wiring harness length, giving it the reach needed for the listed Ford F-150 front installation. The compact sensor layout, single connector, and pin-style terminals support a clean replacement on the specified application. Part number 0265004569 is also cross-referenced to FL3Z2C204A for the same application.
What It Helps Solve
- ABS warning light caused by a failed wheel speed sensor.
- Erratic wheel-speed signal input to the brake control system.
- Loss of ABS function related to sensor circuit failure.
- Connector or harness mismatch on the specified front application.
Installation Notes and Tips
Verify connector shape, terminal style, and lead length against the original sensor before installation. Confirm the front mounting location and route the harness to avoid contact with moving or hot components. Use the vehicle service procedure for sensor removal and replacement on the Ford F-150.
Quality Assurance
Bosch supplies brake and sensor components with OE-style engineering and application-specific fitment. The part is identified by Bosch 0265004569 for catalog and service reference.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Ford | F-150 | Limited | 3.5L | V6 | Front | ABS Wheel Speed Sensor |
| 2016 | Ford | F-150 | — | — | — | Front | ABS Wheel Speed Sensor |
| 2015 | Ford | F-150 | — | — | — | Front | ABS Wheel Speed Sensor |
