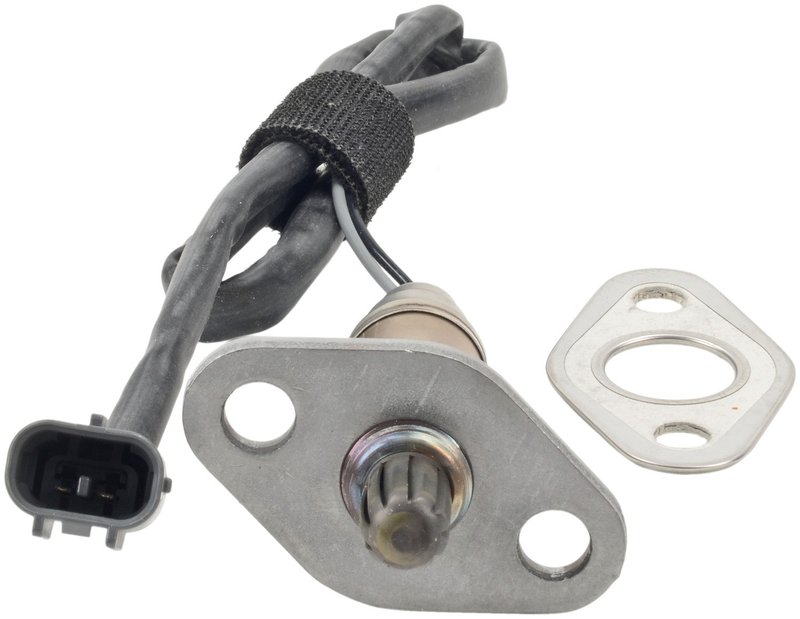

Bosch 12201 Oxygen Sensor - Downstream or Upstream

Bosch Oxygen Sensor for OE-Style Emissions Control

Bosch Engineered Oxygen Sensor 12201 is a specific-fit narrow-band oxygen sensor built for direct replacement in select Toyota and Geo applications. It provides accurate air-fuel-ratio feedback to the ECU for stable closed-loop operation, cleaner combustion, and consistent emissions control.

Compatible With 1991-1995 Toyota Previa, 1991-1994 Toyota Tercel, 1992-1994 Toyota Paseo, 1993-1995 Toyota Corolla, 1994-1995 Toyota Celica, and select Geo Prizm applications. Bosch 12201 is a practical OE-style solution for upstream and downstream positions where a narrow-band, non-heated sensor is specified.

Key Features

• Bosch Engineered Oxygen Sensor, part number 12201
• Narrow-band, non-heated oxygen sensor type
• Specific fit for listed Toyota and Geo applications
• Blade terminals with a rectangular male connector
• Wiring harness included for direct replacement use
• Flange mounting with 18 mm thread diameter and 22 mm hex size
• Metal housing for durability in high-temperature exhaust environments
• 21.1 in wiring harness length and 24.8 in overall length

Product Details

Bosch Engineered Oxygen Sensor 12201 uses Bosch’s long-running OE oxygen sensor development to deliver precise switching-type signal output for engine management systems. Bosch introduced its original oxygen sensor design in 1976 and later advanced planar narrowband technology for faster light-off and quicker closed-loop response. This sensor follows that engineering approach with ceramic sensing elements, controlled heater strategy in the Bosch design family, and materials selected for thermal and vibration resistance. It is a direct-fit replacement for vehicles that call for a narrow-band, non-heated sensor in upstream or downstream locations, including Toyota Corolla, Toyota Tercel, Toyota Previa, Toyota Paseo, Toyota Celica, and Geo Prizm applications. This part cross-references 94854938 and 8946519405 for the same application.

Common Issues This Sensor Can Address

• Rich or lean fuel trim caused by an aging oxygen sensor
• Delayed closed-loop operation after startup
• Check engine light related to oxygen sensor signal faults
• Rough idle or unstable combustion from inaccurate exhaust feedback
• Failed emissions inspection tied to sensor performance

Installation Notes and Tips

Verify the vehicle’s original sensor style, connector shape, thread size, and mounting location before installation. This Bosch 12201 uses a rectangular male connector, blade terminals, and an 18 mm thread diameter, so it should be matched to the factory configuration on the listed applications. Inspect the exhaust bung threads and wiring routing before tightening the sensor, and confirm the harness length is sufficient for the upstream or downstream position on the vehicle.

Quality Assurance

Bosch supplies oxygen sensors with OE development experience spanning more than five decades. Bosch Engineered Oxygen Sensor 12201 is built to the same OE-focused standards that support stable signal accuracy and durable operation in demanding exhaust conditions.
