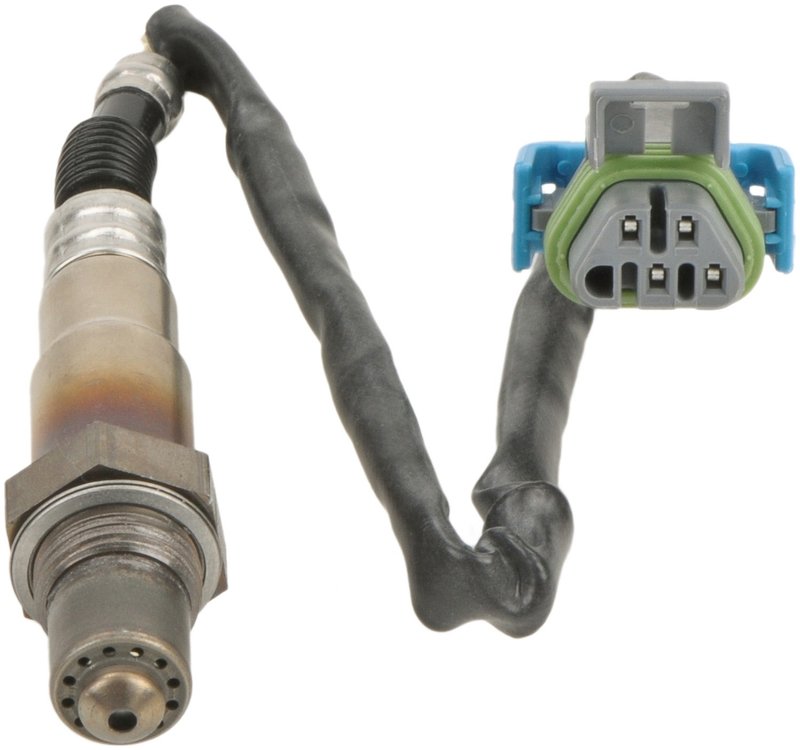

Bosch 13686 Oxygen Sensor - Downstream, Downstream Right or Upstream

Overview of Bosch Engineered Oxygen Sensor 13686

The Bosch Engineered Oxygen Sensor 13686 is designed for specific fitment on select Buick, Cadillac, Chevrolet, GMC, and Pontiac models. This narrow-band heated oxygen sensor ensures accurate emission control and optimal engine performance by monitoring exhaust gases effectively.

• Specific fit for Buick Allure, Cadillac Escalade, Chevrolet Silverado 1500 HD, GMC Sierra 2500 HD, Pontiac Grand Prix, and more
• Heated narrow-band oxygen sensor with 4-wire design for precise readings
• Threaded mounting type with 18 mm thread diameter and 22 mm hex size for secure installation
• Includes wiring harness with 12.6-inch length and trapezoid female connector
• Durable metal housing finished in steel for long-lasting performance

Detailed Product Features and Specifications

The Bosch Engineered Oxygen Sensor 13686 features a 4-wire narrow-band heated sensor type, which provides reliable oxygen level detection in the exhaust system. The sensor’s wiring harness length measures 12.6 inches, with an overall length of 15.9 inches, allowing for proper routing and connection. It uses a trapezoid-shaped female connector with four female terminals, ensuring compatibility with the vehicle’s wiring system. The sensor mounts via a threaded design with an 18 mm thread diameter and an 18 mm thread size, secured using a 22 mm hex wrench. Constructed with a metal housing and finished in steel, this sensor is built to withstand harsh engine conditions. The part is a standard replacement grade, suitable for maintaining factory-level emission control performance.

About the Bosch Engineered Oxygen Sensor Line

The Bosch Engineered Oxygen Sensor line focuses on delivering precise emission control components engineered to meet or exceed OEM specifications. This product line emphasizes durability and accurate sensor response, which is critical for maintaining engine efficiency and reducing harmful emissions. The 13686 oxygen sensor is part of this line, designed specifically for certain GM vehicles to ensure proper fit and function.

Compatible Vehicles and Common Applications

• Buick Allure and LaCrosse
• Cadillac Escalade, Escalade EXT, and Yukon XL 1500/2500
• Chevrolet Avalanche 2500, Silverado 1500 HD, 2500 HD, 3500, Suburban 2500
• GMC Sierra 1500, 1500 HD, 2500, 2500 HD, 3500, Savana 3500
• Pontiac Grand Prix

Common Issues Addressed by Bosch Oxygen Sensor 13686

• Engine misfires caused by incorrect air-fuel mixture readings
• Increased emissions due to faulty oxygen sensor signals
• Poor fuel economy resulting from inefficient combustion
• Check engine light triggered by sensor failure or degradation
• Failed emissions tests related to sensor malfunction

Installation Notes and Tips

Installation requires a 22 mm hex socket for sensor removal and tightening. Ensure the sensor threads are clean and free of debris before installation. The wiring harness included should be routed carefully to avoid contact with hot or moving engine parts. This sensor is a specific fit, so verify compatibility with your vehicle’s make and model before installation. No mounting bracket is included, as the sensor mounts directly via threading.

Quality Assurance and Warranty

The Bosch Engineered Oxygen Sensor 13686 is manufactured to meet OEM standards for durability and performance. It features a heated sensor element for faster response times and improved emission control. While specific warranty details are not provided here, Bosch products typically come with a limited warranty covering defects in materials and workmanship.
