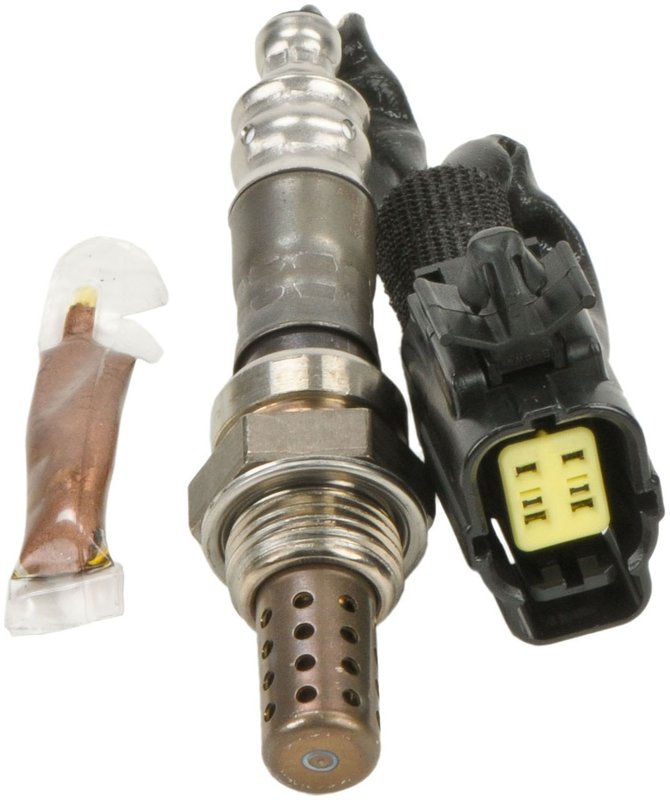

Bosch 13870 Oxygen Sensor - Upstream

Bosch Validated Oxygen Sensor for Mazda Protege

The Bosch Validated Oxygen Sensor 13870 is a specific-fit, narrow-band heated O2 sensor for upstream applications on select Mazda models. It provides air-fuel-ratio feedback to the ECU for stable combustion control and emissions monitoring.

Key Features

• Specific-fit oxygen sensor for direct application matching
• Narrow-band heated sensor design for closed-loop fuel control
• 4-wire configuration with female connector and pin terminals
• Threaded mounting with 18 mm thread diameter and 22 mm hex size
• Steel-finish metal housing with included wiring harness
• Wiring harness length: 6.9 in; overall length: 10.6 in

Product Details

Bosch Validated Oxygen Sensor 13870 uses Bosch narrow-band sensor technology to measure exhaust oxygen content and send precise feedback to the ECU. Bosch’s oxygen sensor development traces back to its original thimble sensor design and later planar narrowband designs, which improved light-off speed, lambda accuracy, and closed-loop response. This part is built with a heated ceramic sensing element, optimized heater control, and high-temperature-resistant materials for consistent operation under thermal and vibration stress. It is a direct replacement for upstream service on 2001-2003 Mazda Protege and 2002-2003 Mazda Protege5. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues This Part Can Address

• Check engine light related to oxygen sensor performance
• Rich or lean fuel mixture readings at the ECU
• Delayed closed-loop fuel control after startup
• Reduced emissions monitoring accuracy
• Rough combustion control caused by a worn upstream sensor

Installation Notes

Install as an upstream threaded oxygen sensor using the correct 18 mm thread size and 22 mm hex. Verify connector shape, terminal count, and harness routing before installation. Use the vehicle’s existing mounting location and confirm the sensor position matches the listed fitment for 2001-2003 Mazda Protege and 2002-2003 Mazda Protege5.

Quality Assurance

Bosch supplies this oxygen sensor from its OE development background, using validated sensor technology and durable materials selected for long-term exhaust service. Bosch Validated Oxygen Sensor 13870 is built to meet standard replacement needs for Mazda Protege and Mazda Protege5 upstream applications.
