Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

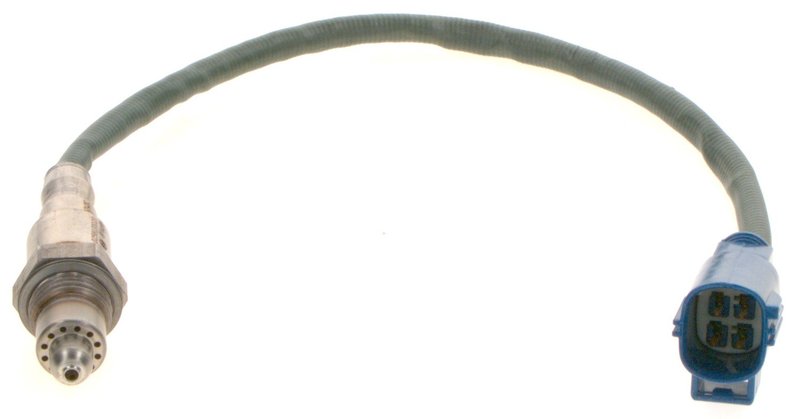

Bosch 16158 Oxygen Sensor
| Brand | Bosch 16158 |
|---|---|
| Position | Downstream Right, Downstream, Downstream Front, and Downstream Left |
| Wiring Harness Length | 12.6 |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 4 |
| Grade Type | Standard replacement |
| Connector Shape | Rectangle |
| Terminal Quantity | 4 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Overall Length | 15.7 |
| Mounting Type | Threaded |
| Automotive Color / Finish | Steel |
| Automotive Item Weight (lbs) | 0.182984 lb |
| Heated (Oxygen Sensor) | Yes |
| Hex Size (Oxygen Sensor) | 22 mm |
| Housing Material | Metal |
| Length (Sealing Surface To End Of Connector) | 14.6 in |
| Mounting Bracket Included | No |
| Oxygen Sensor Type | Narrow-band heated |
| Sensor Type | Narrow-band |
| Thread Diameter (Oxygen Sensor) | 18 mm |
| Thread Size | 18 |
| Wiring Harness Included | Yes |
| Product line | Actual OE Oxygen Sensor |
| Fits | Jaguar and Land Rover · 42 vehicles |
OE-style replacement. Bosch Actual OE Oxygen Sensor line for specific-fit applications.
Heated narrow-band design. Provides fast closed-loop response and stable air-fuel feedback.
Threaded metal construction. Uses an 18 mm thread and 22 mm hex for service fitment.
Cross-references LR140038 and T2H48054 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE Oxygen Sensor Replacement
Bosch 16158 is an Actual OE Oxygen Sensor built for specific Jaguar and Land Rover applications. It delivers narrow-band, heated air-fuel ratio feedback for stable combustion control and emissions management across changing operating conditions.
Compatible With Jaguar F-Pace, Jaguar XF, Jaguar F-Type, Jaguar XE, and Land Rover Range Rover Velar applications listed below.
Key Features
- Actual OE Oxygen Sensor line from Bosch
- Narrow-band heated sensor for closed-loop fuel control
- Threaded mounting with 18 mm thread diameter and 22 mm hex size
- 4-wire design with blade terminals and rectangular connector
- Metal housing with high-temperature-resistant construction
- Wiring harness included for specific-fit applications
Detailed Description
Bosch 16158 uses advanced ceramic sensing elements and optimized heater control to provide accurate switching-type oxygen sensor readings to the ECU. That helps maintain consistent air-fuel management, quicker closed-loop operation, and reliable performance under heat and vibration. This Bosch oxygen sensor is a direct-fit replacement for the listed Jaguar and Land Rover models, including downstream applications on the F-Pace, XF, F-Type, XE, and Range Rover Velar.
This part cross-references LR140038 and T2H48054 for the same application.
What It Helps Address
- Check engine light caused by a failing downstream oxygen sensor
- Unstable fuel trim feedback from an aging narrow-band sensor
- Slow sensor response during closed-loop operation
- Emissions test failures related to oxygen sensor performance
- Rough combustion control from inaccurate air-fuel ratio readings
Installation Notes and Tips
Verify the exact year, chassis note, and downstream position before ordering, since several applications are chassis-specific. Use the listed 18 mm thread size and 22 mm hex size to confirm service-tool compatibility. The connector is male with a rectangular shape, and the harness length should be checked against the original routing before installation.
Quality Assurance
Bosch draws on more than five decades of OE oxygen sensor development, and this 16158 sensor reflects that OE-proven engineering approach. It is built as a standard replacement part for specific-fit applications.
| Year | Make | Model | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2025 | Jaguar | F-Pace | — | — | — | 5.0L | V8 | N/A | Actual OE Oxygen Sensor |
| 2024 | Jaguar | F-Pace | — | — | — | 5.0L | V8 | N/A | Actual OE Oxygen Sensor |
| 2024 | Jaguar | XF | — | — | — | 2.0L | L4 | Downstream Front | Actual OE Oxygen Sensor |
| 2023 | Jaguar | F-Pace | — | — | — | 5.0L | V8 | N/A | Actual OE Oxygen Sensor |
| 2023 | Jaguar | XF | — | — | — | 2.0L | L4 | Downstream Front | Actual OE Oxygen Sensor |
| 2022 | Jaguar | F-Pace | — | — | — | 5.0L | V8 | Downstream Right | Actual OE Oxygen Sensor |
| 2022 | Jaguar | XF | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2022 | Land Rover | Range Rover Velar | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2021 | Jaguar | F-Pace | — | — | — | 5.0L | V8 | Downstream Right | Actual OE Oxygen Sensor |
| 2021 | Jaguar | F-Type | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2021 | Jaguar | XF | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2021 | Land Rover | Range Rover Velar | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2020 | Jaguar | F-Pace | — | — | — | 2.0L | L4 | Downstream | Located After Primary Converter; From Chassis # LCY86341; Actual OE Oxygen Sensor |
| 2020 | Jaguar | F-Pace | — | — | — | 3.0L | V6 | Downstream Right | Located After Secondary Converter; From Chassis # LA649166; Actual OE Oxygen Sensor |
| 2020 | Jaguar | F-Pace | — | — | — | 5.0L | V8 | Downstream Right | Located After Secondary Converter; From Chassis # LA649166; Actual OE Oxygen Sensor |
| 2020 | Jaguar | F-Type | — | RWD | — | 2.0L | L4 | Downstream | Located After Primary Converter; From Chassis # LCY86341; Actual OE Oxygen Sensor |
| 2020 | Jaguar | F-Type | Coupe | AWD | — | 2.0L | L4 | Downstream | Located After Primary Converter; From Chassis # K69156; Actual OE Oxygen Sensor |
| 2020 | Jaguar | F-Type | Convertible | AWD | — | 2.0L | L4 | Downstream | Located After Primary Converter; From Chassis # LCY86341; Actual OE Oxygen Sensor |
| 2020 | Jaguar | XE | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2020 | Jaguar | XF | — | — | — | 3.0L | V6 | Downstream Right | Located After Secondary Converter; From Chassis # LCY86341; Actual OE Oxygen Sensor |
| 2020 | Jaguar | XF | — | — | — | 2.0L | L4 | Downstream | Located After Primary Converter; From Chassis # LCY86341; Actual OE Oxygen Sensor |
| 2020 | Land Rover | Range Rover Velar | — | — | — | 2.0L | L4 | Downstream | Located After Primary Converter; From Chassis # LA274284; Actual OE Oxygen Sensor |
| 2020 | Land Rover | Range Rover Velar | — | — | — | 3.0L | V6 | Downstream Right | Located After Secondary Converter; To Chassis # LA274283; Actual OE Oxygen Sensor |
| 2020 | Land Rover | Range Rover Velar | — | — | — | 5.0L | V8 | Downstream Right | Located After Secondary Converter; From Chassis # LA274284; Actual OE Oxygen Sensor |
| 2020 | Land Rover | Range Rover Velar | — | — | — | 5.0L | V8 | Downstream Right | Located After Secondary Converter; To Chassis # LA274283; Actual OE Oxygen Sensor |
| 2020 | Land Rover | Range Rover Velar | — | — | — | 3.0L | V6 | Downstream Right | Located After Secondary Converter; From Chassis # LA274284; Actual OE Oxygen Sensor |
| 2020 | Land Rover | Range Rover Velar | — | — | — | 2.0L | L4 | Downstream | Located After Primary Converter; To Chassis # LA274283; Actual OE Oxygen Sensor |
| 2019 | Jaguar | F-Pace | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2019 | Jaguar | F-Type | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2019 | Jaguar | XE | — | — | — | 5.0L | V8 | Downstream Right | Located After Secondary Converter; From Chassis # LCP64747; Actual OE Oxygen Sensor |
| 2019 | Jaguar | XF | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2019 | Land Rover | Range Rover Velar | — | — | — | 2.0L | L4 | Downstream | Located After Primary Converter; Actual OE Oxygen Sensor |
| 2019 | Land Rover | Range Rover Velar | — | — | — | 3.0L | V6 | Downstream Right | Located After Secondary Converter; Actual OE Oxygen Sensor |
| 2018 | Jaguar | F-Pace | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2018 | Jaguar | F-Type | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2018 | Jaguar | XE | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2018 | Jaguar | XF | — | — | — | 2.0L | L4 | Downstream | Actual OE Oxygen Sensor |
| 2018 | Land Rover | Range Rover Velar | — | — | — | 3.0L | V6 | Downstream Right | Located After Secondary Converter; Actual OE Oxygen Sensor |
| 2018 | Land Rover | Range Rover Velar | — | — | — | 2.0L | L4 | Downstream | Located After Primary Converter; Actual OE Oxygen Sensor |
| 2017 | Jaguar | F-Pace | — | — | — | 3.0L | V6 | Downstream Left | Actual OE Oxygen Sensor |
| 2017 | Jaguar | F-Type | — | — | Manual | 3.0L | V6 | Downstream | Actual OE Oxygen Sensor |
| 2017 | Jaguar | XE | — | AWD | — | 3.0L | V6 | Downstream Right | Actual OE Oxygen Sensor |
