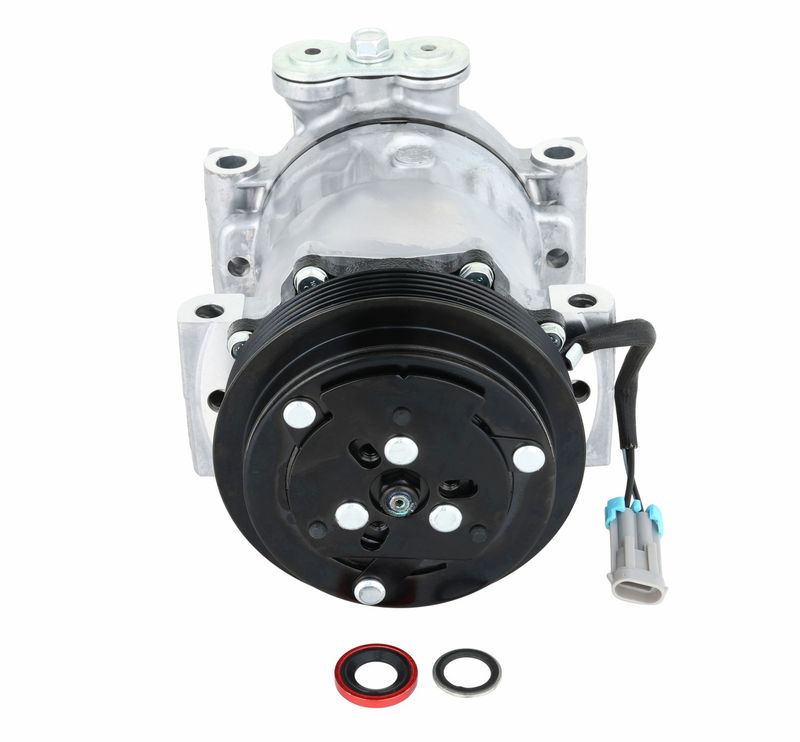

Bosch 1986AC1008 A/C Compressor
| Brand | Bosch 1986AC1008 |
|---|---|
| Refrigerant Type | R134a r1234yf |
| Compatible Refrigerant Oil Type | Pag 46 |
| Oil Filled | Yes |
| Pulley Groove Quantity | 6 |
| Outside Pulley Diameter | 130 |
| Coil Voltage | 12 |
| Automotive Item Weight (lbs) | 16.137838 lb |
| With or without seal ring | With seal ring |
| Product line | A/C Compressor |
| Fits | Cadillac, Chevrolet, GMC, and Oldsmobile · 123 vehicles |
OE-matched design. Casting, pulley, and connector specifications align with OE dimensions.
Refrigerant ready. Supports R134A and R1234YF systems with PAG 46 oil fill.
Tested for service. Endurance, vibration, leak, salt spray, and noise testing help verify durability.
Cross-references 1136519, 19151514 and 52499054 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style A/C Compressor Replacement
Bosch A/C Compressor 1986AC1008 is built for direct replacement applications that require OE-matched casting, pulley, and connector specifications. It is engineered for R134A and R1234YF refrigerant systems and comes oil filled with PAG 46 for service-ready installation.
Key Features
- OE manufacturing experience with release and quality testing
- Supports R134A and R1234YF refrigerant systems
- Oil filled with PAG 46 compatible refrigerant oil
- 6-groove pulley with 130 mm outside diameter
- 12-volt coil and seal ring included
Detailed Description
This Bosch A/C compressor is designed to match OE specification details for fit and function, including casting, pulley, and connector alignment. Bosch 1986AC1008 is tested for endurance, performance, vibration, leak, salt spray, and noise resistance, giving it the construction focus needed for demanding HVAC service. It is a fitment-based replacement for a wide range of GM trucks, SUVs, and vans, including Chevrolet C1500, Chevrolet Tahoe, GMC Yukon, and Cadillac Escalade applications. This part cross-references Monroe Shocks & Struts (e.g., 1136519, 19151514) for the same application.
What It Is Used For
- Restoring compressor operation in a failed A/C system
- Replacing a noisy or leaking compressor assembly
- Addressing weak cooling caused by worn internal compressor components
- Correcting belt drive issues related to pulley wear
- Servicing HVAC systems that require R134A or R1234YF refrigerant
Installation Notes and Tips
Verify refrigerant type, oil specification, pulley groove count, and connector match before installation. Confirm the vehicle application against the fitment list for Chevrolet, GMC, Cadillac, and Oldsmobile models. Follow standard A/C service procedures, including system evacuation, flushing as required, and proper oil balancing for the replacement compressor. Bosch states that the casting, pulley, and connector specifications are aligned to OE dimensions for easier installation.
Quality Assurance
Bosch subjects this compressor to endurance, performance, vibration, leak, salt spray, and noise testing before release. The brandβs OE manufacturing background and specification control are used to support consistent replacement quality for Bosch 1986AC1008.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2000 | Cadillac | Escalade | — | — | A/C Compressor |
| 2000 | Chevrolet | C2500 | — | — | A/C Compressor |
| 2000 | Chevrolet | C3500 | — | — | A/C Compressor |
| 2000 | Chevrolet | K2500 | — | — | A/C Compressor |
| 2000 | Chevrolet | K3500 | — | — | A/C Compressor |
| 2000 | Chevrolet | Tahoe | 5.7L | V8 | A/C Compressor |
| 2000 | GMC | C2500 | — | — | A/C Compressor |
| 2000 | GMC | C3500 | — | — | A/C Compressor |
| 2000 | GMC | K2500 | — | — | A/C Compressor |
| 2000 | GMC | K3500 | — | — | A/C Compressor |
| 2000 | GMC | Yukon | 5.7L | V8 | A/C Compressor |
| 1999 | Cadillac | Escalade | — | — | A/C Compressor |
| 1999 | Chevrolet | C1500 | — | — | A/C Compressor |
| 1999 | Chevrolet | C1500 Suburban | — | — | A/C Compressor |
| 1999 | Chevrolet | C2500 | — | — | A/C Compressor |
| 1999 | Chevrolet | C2500 Suburban | — | — | A/C Compressor |
| 1999 | Chevrolet | C3500 | — | — | A/C Compressor |
| 1999 | Chevrolet | K1500 | — | — | A/C Compressor |
| 1999 | Chevrolet | K1500 Suburban | — | — | A/C Compressor |
| 1999 | Chevrolet | K2500 | — | — | A/C Compressor |
| 1999 | Chevrolet | K2500 Suburban | — | — | A/C Compressor |
| 1999 | Chevrolet | K3500 | — | — | A/C Compressor |
| 1999 | Chevrolet | P30 | 6.5L | V8 | A/C Compressor |
| 1999 | Chevrolet | Tahoe | — | — | A/C Compressor |
| 1999 | GMC | C1500 | — | — | A/C Compressor |
| 1999 | GMC | C1500 Suburban | — | — | A/C Compressor |
| 1999 | GMC | C2500 | — | — | A/C Compressor |
| 1999 | GMC | C2500 Suburban | — | — | A/C Compressor |
| 1999 | GMC | C3500 | — | — | A/C Compressor |
| 1999 | GMC | K1500 | — | — | A/C Compressor |
| 1999 | GMC | K1500 Suburban | — | — | A/C Compressor |
| 1999 | GMC | K2500 | — | — | A/C Compressor |
| 1999 | GMC | K2500 Suburban | — | — | A/C Compressor |
| 1999 | GMC | K3500 | — | — | A/C Compressor |
| 1999 | GMC | P3500 | 6.5L | V8 | A/C Compressor |
| 1999 | GMC | Yukon | — | — | A/C Compressor |
| 1998 | Chevrolet | Blazer | — | — | A/C Compressor |
| 1998 | Chevrolet | C1500 | — | — | A/C Compressor |
| 1998 | Chevrolet | C1500 Suburban | — | — | A/C Compressor |
| 1998 | Chevrolet | C2500 | — | — | A/C Compressor |
| 1998 | Chevrolet | C2500 Suburban | — | — | A/C Compressor |
| 1998 | Chevrolet | C3500 | — | — | A/C Compressor |
| 1998 | Chevrolet | K1500 | — | — | A/C Compressor |
| 1998 | Chevrolet | K1500 Suburban | — | — | A/C Compressor |
| 1998 | Chevrolet | K2500 | — | — | A/C Compressor |
| 1998 | Chevrolet | K2500 Suburban | — | — | A/C Compressor |
| 1998 | Chevrolet | K3500 | — | — | A/C Compressor |
| 1998 | Chevrolet | P30 | 6.5L | V8 | A/C Compressor |
| 1998 | Chevrolet | S10 | 4.3L | V6 | A/C Compressor |
| 1998 | Chevrolet | Tahoe | — | — | A/C Compressor |
| 1998 | GMC | C1500 | — | — | A/C Compressor |
| 1998 | GMC | C1500 Suburban | — | — | A/C Compressor |
| 1998 | GMC | C2500 | — | — | A/C Compressor |
| 1998 | GMC | C2500 Suburban | — | — | A/C Compressor |
| 1998 | GMC | C3500 | — | — | A/C Compressor |
| 1998 | GMC | Jimmy | — | — | A/C Compressor |
| 1998 | GMC | K1500 | — | — | A/C Compressor |
| 1998 | GMC | K1500 Suburban | — | — | A/C Compressor |
| 1998 | GMC | K2500 | — | — | A/C Compressor |
| 1998 | GMC | K2500 Suburban | — | — | A/C Compressor |
| 1998 | GMC | K3500 | — | — | A/C Compressor |
| 1998 | GMC | P3500 | 6.5L | V8 | A/C Compressor |
| 1998 | GMC | Sonoma | 4.3L | V6 | A/C Compressor |
| 1998 | GMC | Yukon | — | — | A/C Compressor |
| 1998 | Oldsmobile | Bravada | — | — | A/C Compressor |
| 1997 | Chevrolet | Blazer | — | — | A/C Compressor |
| 1997 | Chevrolet | C1500 | — | — | A/C Compressor |
| 1997 | Chevrolet | C1500 Suburban | — | — | A/C Compressor |
| 1997 | Chevrolet | C2500 | — | — | A/C Compressor |
| 1997 | Chevrolet | C2500 Suburban | — | — | A/C Compressor |
| 1997 | Chevrolet | C3500 | — | — | A/C Compressor |
| 1997 | Chevrolet | K1500 | — | — | A/C Compressor |
| 1997 | Chevrolet | K1500 Suburban | — | — | A/C Compressor |
| 1997 | Chevrolet | K2500 | — | — | A/C Compressor |
| 1997 | Chevrolet | K2500 Suburban | — | — | A/C Compressor |
| 1997 | Chevrolet | K3500 | — | — | A/C Compressor |
| 1997 | Chevrolet | P30 | 6.5L | V8 | A/C Compressor |
| 1997 | Chevrolet | S10 | 4.3L | V6 | A/C Compressor |
| 1997 | Chevrolet | Tahoe | — | — | A/C Compressor |
| 1997 | GMC | C1500 | — | — | A/C Compressor |
| 1997 | GMC | C1500 Suburban | — | — | A/C Compressor |
| 1997 | GMC | C2500 | — | — | A/C Compressor |
| 1997 | GMC | C2500 Suburban | — | — | A/C Compressor |
| 1997 | GMC | C3500 | — | — | A/C Compressor |
| 1997 | GMC | Jimmy | — | — | A/C Compressor |
| 1997 | GMC | K1500 | — | — | A/C Compressor |
| 1997 | GMC | K1500 Suburban | — | — | A/C Compressor |
| 1997 | GMC | K2500 | — | — | A/C Compressor |
| 1997 | GMC | K2500 Suburban | — | — | A/C Compressor |
| 1997 | GMC | K3500 | — | — | A/C Compressor |
| 1997 | GMC | P3500 | 6.5L | V8 | A/C Compressor |
| 1997 | GMC | Sonoma | 4.3L | V6 | A/C Compressor |
| 1997 | GMC | Yukon | — | — | A/C Compressor |
| 1997 | Oldsmobile | Bravada | — | — | A/C Compressor |
| 1996 | Chevrolet | Blazer | — | — | A/C Compressor |
| 1996 | Chevrolet | C1500 | — | — | A/C Compressor |
| 1996 | Chevrolet | C1500 Suburban | — | — | A/C Compressor |
| 1996 | Chevrolet | C2500 | — | — | A/C Compressor |
| 1996 | Chevrolet | C2500 Suburban | — | — | A/C Compressor |
| 1996 | Chevrolet | C3500 | — | — | A/C Compressor |
| 1996 | Chevrolet | K1500 | — | — | A/C Compressor |
| 1996 | Chevrolet | K1500 Suburban | — | — | A/C Compressor |
| 1996 | Chevrolet | K2500 | — | — | A/C Compressor |
| 1996 | Chevrolet | K2500 Suburban | — | — | A/C Compressor |
| 1996 | Chevrolet | K3500 | — | — | A/C Compressor |
| 1996 | Chevrolet | P30 | 6.5L | V8 | A/C Compressor |
| 1996 | Chevrolet | S10 | 4.3L | V6 | A/C Compressor |
| 1996 | Chevrolet | Tahoe | — | — | A/C Compressor |
| 1996 | GMC | C1500 | — | — | A/C Compressor |
| 1996 | GMC | C1500 Suburban | — | — | A/C Compressor |
| 1996 | GMC | C2500 | — | — | A/C Compressor |
| 1996 | GMC | C2500 Suburban | — | — | A/C Compressor |
| 1996 | GMC | C3500 | — | — | A/C Compressor |
| 1996 | GMC | Jimmy | — | — | A/C Compressor |
| 1996 | GMC | K1500 | — | — | A/C Compressor |
| 1996 | GMC | K1500 Suburban | — | — | A/C Compressor |
| 1996 | GMC | K2500 | — | — | A/C Compressor |
| 1996 | GMC | K2500 Suburban | — | — | A/C Compressor |
| 1996 | GMC | K3500 | — | — | A/C Compressor |
| 1996 | GMC | P3500 | 6.5L | V8 | A/C Compressor |
| 1996 | GMC | Sonoma | 4.3L | V6 | A/C Compressor |
| 1996 | GMC | Yukon | — | — | A/C Compressor |
| 1996 | Oldsmobile | Bravada | — | — | A/C Compressor |
