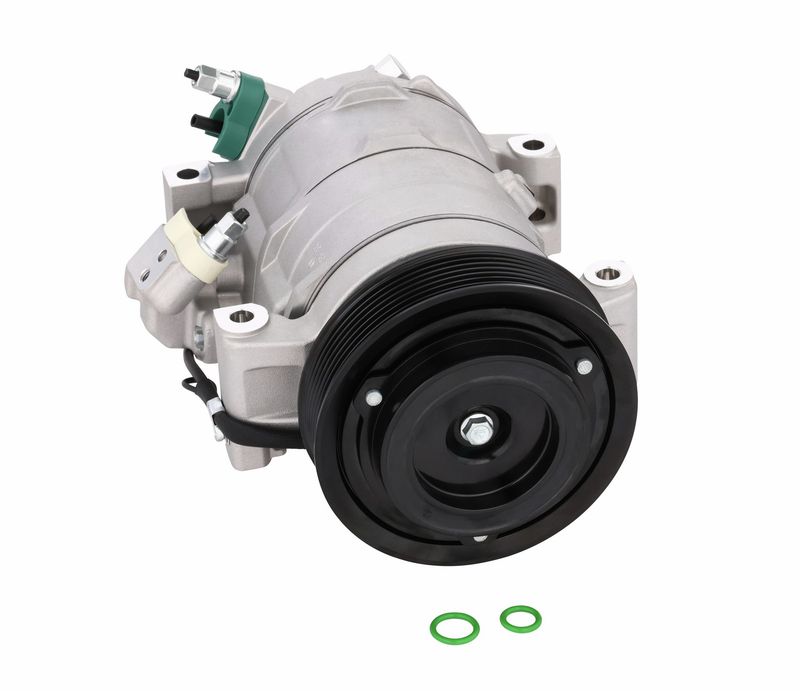

Bosch 1986AC1060 A/C Compressor

Overview

Bosch A/C Compressor 1986AC1060 is built for direct replacement service on select Honda Accord applications. It combines OE-based manufacturing experience with precise casting, pulley, and connector specifications to match the original design.

Compatible With 2013-2017 Honda Accord, A/C compressor application. Part number 1986AC1060 is engineered for R134A and R1234YF refrigerant systems and uses PAG 46 oil.

Key Features

• OE-style replacement compressor with Bosch manufacturing standards
• Configured for R134A and R1234YF refrigerant systems
• Pre-filled with PAG 46 oil
• 7-groove pulley with 122 mm outside diameter
• Includes seal ring for the compressor connection

Detailed Description

Bosch 1986AC1060 is an A/C compressor for 2013-2017 Honda Accord models. Bosch subjects these compressors to endurance, performance, vibration, leak, salt spray, and noise testing, then matches the casting, pulley, and connector details to OE specifications for a straightforward replacement. The 12-volt coil and sealed design support proper system operation in the original HVAC layout. This part cross-references Honda 388105A2A01 for the same application.

Common Repair Uses

• Restores refrigerant compression when the original unit is worn or failing
• Addresses A/C cooling loss caused by internal compressor damage
• Helps correct noise, vibration, or rough compressor operation
• Supports repair of leaks at the compressor assembly
• Replaces a compressor that no longer maintains proper system pressure

Installation Notes and Tips

Verify refrigerant type, oil specification, pulley configuration, and connector match before installation. Flush the system as required by the repair procedure and confirm the correct oil balance for the vehicle. Replace the seal ring during installation and evacuate and recharge the system according to service specifications.

Quality Assurance

Bosch applies a rigorous release process and multiple quality tests, including endurance, leak, vibration, salt spray, performance, and noise evaluation, to help ensure consistent compressor operation.
