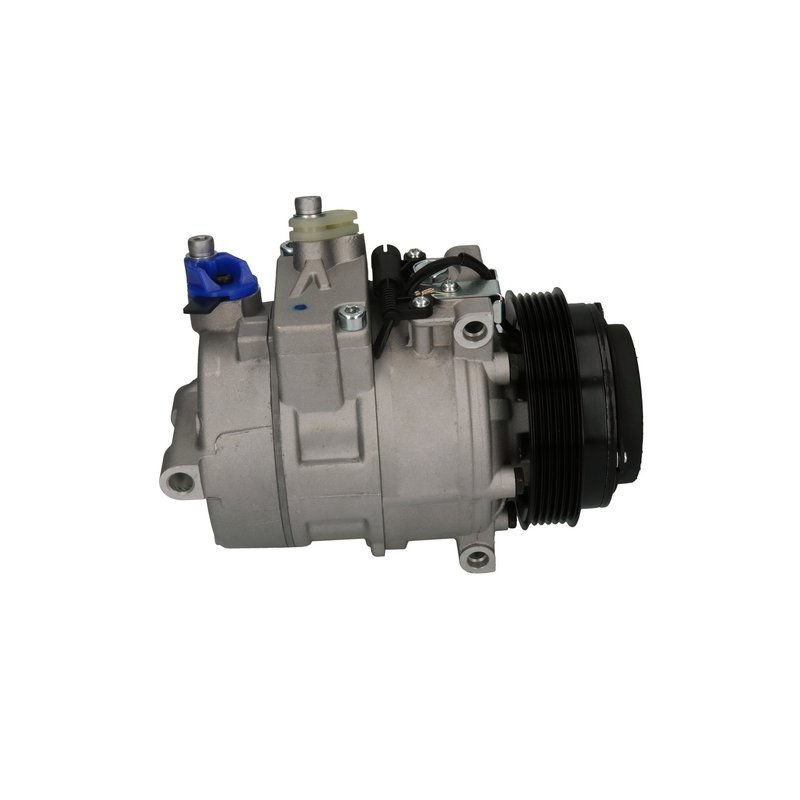

Bosch 1986AD1013 A/C Compressor

Overview

Bosch A/C Compressor 1986AD1013 is an OE-style replacement built for vehicles that use R134A refrigerant and PAG 46 oil. It is filled with oil, includes a seal ring, and uses a 12-volt coil with a 6-groove pulley for direct system integration.

Compatible with Chrysler Crossfire and a wide range of Mercedes-Benz applications, this Bosch A/C compressor is engineered to match OE casting, pulley, and connector specifications. The 1986AD1013 is a fitment-based replacement for Mercedes-Benz E320, C230, and SLK230 applications where exact compressor specifications matter.

Key Features

• R134A refrigerant type for supported HVAC systems
• PAG 46 oil specification with oil already filled
• 6-groove pulley and 120 mm outside pulley diameter
• 12-volt coil for electrical compatibility
• Includes seal ring for compressor sealing interface
• Bosch OE manufacturing experience and release testing process

Detailed Description

Bosch A/C Compressor 1986AD1013 is designed as a direct replacement for select Chrysler and Mercedes-Benz HVAC systems. The compressor is built around OE-matched casting, pulley, and connector specifications, which helps maintain proper alignment and system fitment during replacement. This part number, 1986AD1013, is listed for applications including Mercedes-Benz E430, CLK320, and ML320, along with additional Mercedes-Benz models across multiple years.

As part of Bosch’s A/C Compressor line, this unit is subjected to endurance, performance, vibration, leak, salt spray, and noise testing before release. That product-line focus supports consistent compressor operation under demanding conditions while keeping the replacement process straightforward for technicians working on Mercedes-Benz and Chrysler Crossfire HVAC repairs.

What It Is Used For

• Restoring refrigerant compression in a failed HVAC system
• Addressing weak or inconsistent cabin cooling output
• Replacing a compressor with internal wear or seizure
• Correcting noise, vibration, or leak-related compressor issues
• Servicing R134A systems that require PAG 46 oil

Installation Notes and Tips

Verify refrigerant type, oil specification, pulley groove count, and connector match before installation. This compressor is listed with a 12-volt coil and a 6-groove pulley, so those details should be confirmed against the original unit. Follow proper evacuation, oil balancing, and recharge procedures during HVAC service.

Quality Assurance

Bosch applies OE manufacturing experience and a stringent release process to this compressor line. Testing includes endurance, performance, vibration, leak, salt spray, and noise evaluation to help ensure consistent operation under demanding conditions. This part cross-references Mercedes-Benz and Chrysler applications (e.g., 0002307011, 5097010AA) for the same application.
