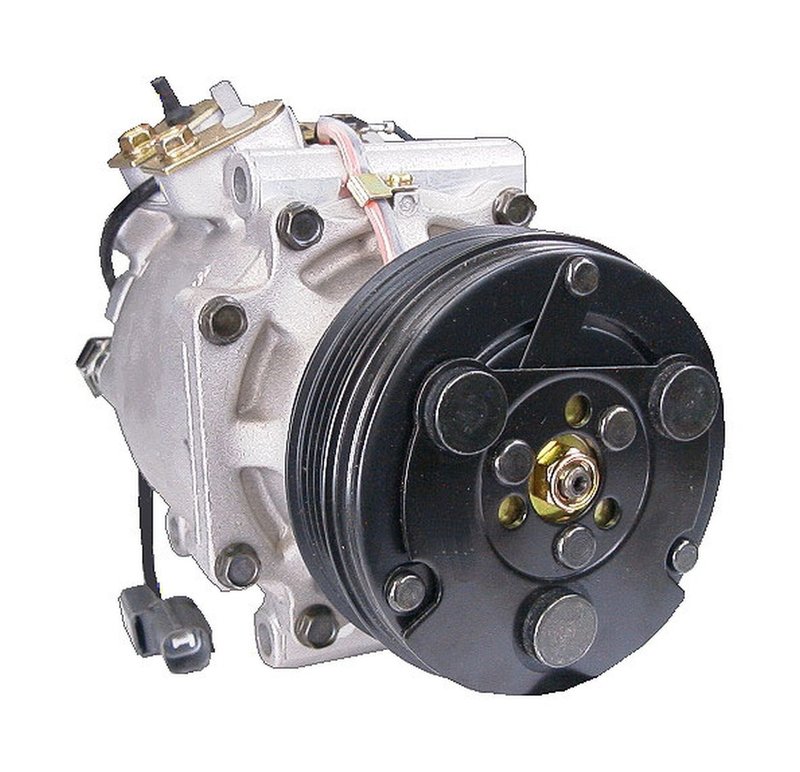

Bosch 1986AD1070 A/C Compressor

OE-Style A/C Compressor Replacement

Bosch A/C Compressor 1986AD1070 is built for direct replacement service with OE-aligned casting, pulley, and connector specifications. It is a fitment-based solution for restoring air conditioning performance in select Honda applications, including Honda CR-V and Honda Civic models.

Key Features

• R134A refrigerant type for the specified system application.
• PAG 56 compatible oil type with the compressor oil filled.
• 4-groove pulley and 106 mm outside pulley diameter.
• 12-volt coil specification for the compressor clutch circuit.
• Without seal ring design.
• Bosch part number 1986AD1070 for catalog matching and ordering.

Detailed Description

This Bosch A/C compressor is engineered using the brand’s OE manufacturing experience and released through a controlled quality process. It is tested for endurance, performance, vibration, leak, salt spray, and noise resistance, helping ensure consistent operation under demanding conditions. The 1986AD1070 is a practical replacement choice for Honda CR-V, Honda Civic, and Honda Civic del Sol applications where OE-spec fit and system compatibility matter.

This part cross-references Honda part numbers 38810P2FA01 and 38810P3F006 for the same application.

What It Is Used For

• Replacing a compressor with reduced cooling output.
• Addressing noisy compressor operation.
• Correcting refrigerant leakage at the compressor assembly.
• Restoring proper A/C system pressure and circulation.
• Replacing a unit with pulley or clutch specification mismatch.

Installation Notes and Tips

Verify refrigerant type, oil type, pulley groove count, pulley diameter, and coil voltage before installation. Confirm the vehicle’s A/C system is specified for R134A and PAG 56. Follow standard evacuation, flushing, and recharge procedures as required by the repair.

Quality Assurance

Bosch subjects this compressor to release testing that includes endurance, performance, vibration, leak, salt spray, and noise evaluation. The OE-matched casting and connector specifications support accurate fitment on the listed Honda applications.
