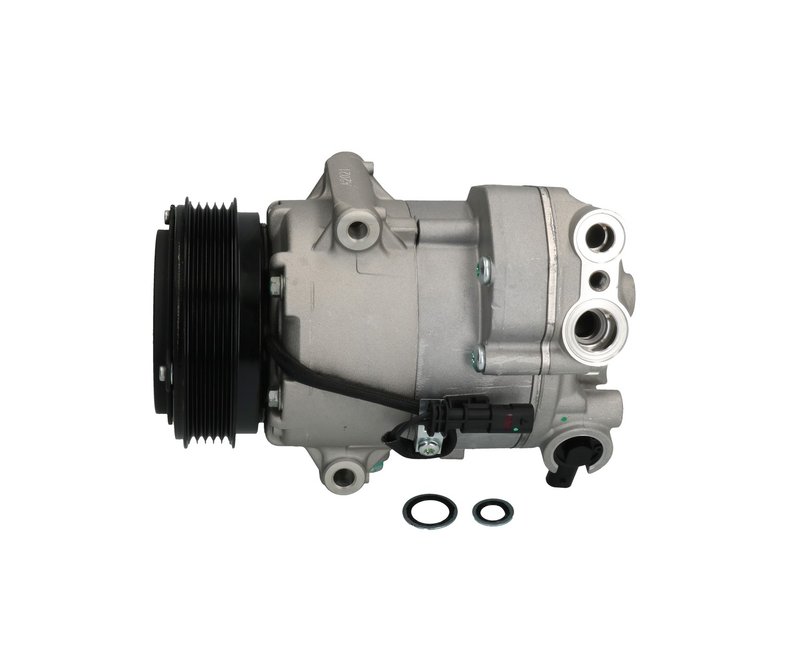

Bosch 1986AD1170 A/C Compressor
| Brand | Bosch 1986AD1170 |
|---|---|
| Refrigerant Type | R134a r1234yf |
| Compatible Refrigerant Oil Type | Pag yf 46 |
| Oil Filled | Yes |
| Pulley Groove Quantity | 5 |
| Outside Pulley Diameter | 109 |
| Coil Voltage | 12 |
| Automotive Item Weight (lbs) | 12.628078 lb |
| With or without seal ring | With seal ring |
| Product line | A/C Compressor |
| Fits | Chevrolet · 4 vehicles |
OE-spec fitment. Precise casting, pulley, and connector specs align with OE requirements.
Easy installation. Built for a straightforward install with exact OE-matched specifications.
Seal ring included. Supplied with a seal ring for a cleaner compressor replacement.
Cross-references 39053419 for the same application. See all 1.
Bosch A/C Compressor for Cruze Applications
Bosch A/C Compressor 1986AD1170 is built for select Chevrolet Cruze and Cruze Limited models with OE-matched casting, pulley, and connector specifications. It is filled with oil and configured for R134A and R1234YF refrigerants, making it a direct replacement choice for restoring cabin cooling performance.
Fits 2013-2015 Chevrolet Cruze, N/A. Fits 2016 Chevrolet Cruze Limited, N/A.
Key Features
- Bosch A/C Compressor, part number 1986AD1170
- Compatible with R134A and R1234YF refrigerants
- Uses PAG YF 46 compatible refrigerant oil
- Oil filled and supplied with seal ring
- 5-groove pulley with 109 mm outside diameter
- 12-volt coil voltage for vehicle HVAC operation
- OE-aligned casting, pulley, and connector specifications
Product Details
This Bosch compressor is part of the Bosch A/C Compressor line, which draws on OE manufacturing experience and a controlled release process for replacement HVAC components. Bosch subjects these compressors to endurance, performance, vibration, leak, salt spray, and noise testing to verify durability under demanding operating conditions. For Chevrolet Cruze and Cruze Limited owners, 1986AD1170 provides a service replacement built around factory-style dimensions and connection points for a cleaner install and proper system integration.
This part cross-references Monroe Shocks & Struts (e.g., 39053419) for the same application.
Common Problems This Part Addresses
- No cold air from the vents
- Compressor clutch or compressor failure
- Low system pressure caused by internal compressor wear
- Noise, vibration, or rough compressor operation
- Refrigerant leakage at the compressor assembly
Installation Notes and Tips
Verify refrigerant type, oil specification, pulley groove count, and connector fit before installation. Flush the system as needed, replace the receiver/drier or accumulator when required by service procedure, and evacuate and recharge the system with the correct refrigerant and oil amount for the vehicle. Confirm belt alignment and inspect related HVAC components before returning the vehicle to service.
Quality Assurance
Bosch validates this compressor through endurance, vibration, leak, salt spray, performance, and noise testing. The OE-matched design supports accurate fitment on 2013-2015 Chevrolet Cruze and 2016 Chevrolet Cruze Limited applications, and the 1986AD1170 part number helps confirm the correct replacement during ordering and service.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2016 | Chevrolet | Cruze Limited | 1.4L | L4 | A/C Compressor |
| 2015 | Chevrolet | Cruze | 1.4L | L4 | A/C Compressor |
| 2014 | Chevrolet | Cruze | 1.4L | L4 | A/C Compressor |
| 2013 | Chevrolet | Cruze | 1.4L | L4 | A/C Compressor |
