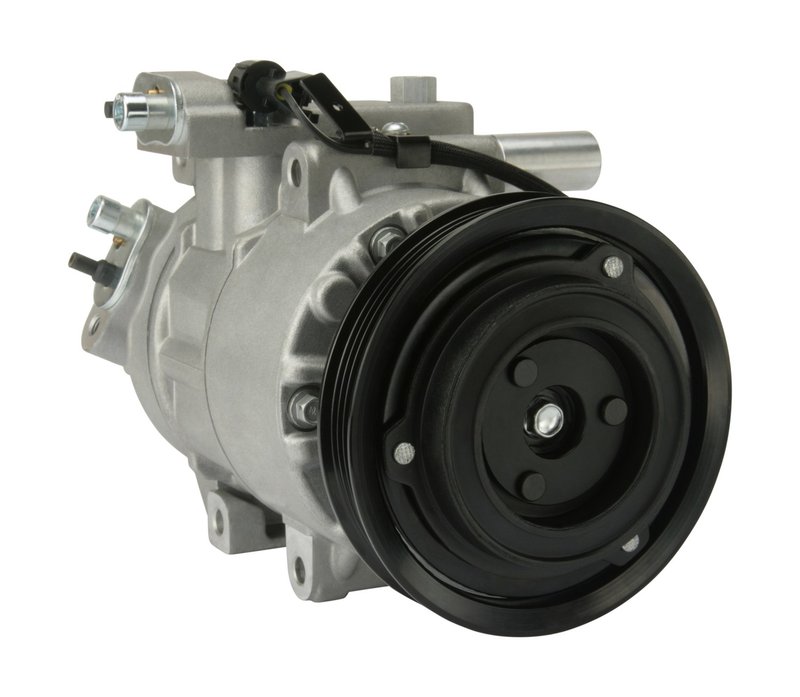

Bosch 1986AD1297 A/C Compressor
| Brand | Bosch 1986AD1297 |
|---|---|
| Refrigerant Type | R134a |
| Compatible Refrigerant Oil Type | Pag 46 |
| Oil Filled | Yes |
| Pulley Groove Quantity | 4 |
| Outside Pulley Diameter | 119 |
| Coil Voltage | 12 |
| Automotive Item Weight (lbs) | 15.476451 lb |
| With or without seal ring | With seal ring |
| Product line | A/C Compressor |
| Fits | Kia · 12 vehicles |
OE-spec fit. Precise casting, pulley, and connector specs support easy installation.
Seal ring included. Ready for a cleaner compressor replacement.
R134A compatible. Uses PAG 46 oil and comes pre-filled.
Cross-references 977011G010DR for the same application. See all 1.
Bosch A/C Compressor for Kia Rio and Rio5
Restore cabin cooling with this Bosch A/C compressor, part number 1986AD1297. It is built for 2006-2011 Kia Rio and 2006-2011 Kia Rio5 applications and uses R134A refrigerant with PAG 46 oil. The compressor is oil filled, includes a seal ring, and is configured with a 4-groove pulley, 119 mm outside pulley diameter, and 12-volt coil.
Key Features
- Direct-fit A/C compressor for Kia Rio and Kia Rio5 model years 2006-2011
- Refrigerant type: R134A
- Compatible with PAG 46 compressor oil
- Oil filled for service-ready installation
- 4-groove pulley with 119 mm outside pulley diameter
- 12-volt coil voltage
- Includes seal ring
- Bosch part number 1986AD1297
Product Details
Bosch A/C compressors are developed using OE manufacturing experience and released through a controlled quality process. This compressor is built to OE-style casting, pulley, and connector specifications so it aligns with the original system layout on the Kia Rio and Kia Rio5. Bosch also subjects these compressors to endurance, performance, vibration, leak, salt spray, and noise testing to verify operation under demanding conditions. If you are replacing a worn compressor on a 2006-2011 Kia Rio or 2006-2011 Kia Rio5, Bosch 1986AD1297 provides the correct refrigerant and oil configuration for the application.
This part cross-references Hyundai/Kia OE number 977011G010DR for the same application.
Common Repair Symptoms
- No cold air from the vents
- Compressor clutch or compressor noise
- Refrigerant leaks at the compressor area
- Weak or inconsistent A/C performance
- System pressure issues that affect cooling output
Installation Notes
Verify pulley groove count, connector style, and mounting alignment before installation. Confirm the system is set up for R134A refrigerant and PAG 46 oil, and inspect the rest of the A/C system for contamination or leaks before replacing the compressor. Proper evacuation, charging, and system flushing procedures should be followed according to vehicle service specifications.
Quality Assurance
Bosch backs this A/C compressor with a release process that includes multiple durability and performance checks, along with leak, vibration, salt spray, and noise testing. The result is a compressor engineered to meet OE-level fit and function for Kia Rio and Kia Rio5 service applications.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2011 | Kia | Rio | A/C Compressor |
| 2011 | Kia | Rio5 | A/C Compressor |
| 2010 | Kia | Rio | A/C Compressor |
| 2010 | Kia | Rio5 | A/C Compressor |
| 2009 | Kia | Rio | A/C Compressor |
| 2009 | Kia | Rio5 | A/C Compressor |
| 2008 | Kia | Rio | A/C Compressor |
| 2008 | Kia | Rio5 | A/C Compressor |
| 2007 | Kia | Rio | A/C Compressor |
| 2007 | Kia | Rio5 | A/C Compressor |
| 2006 | Kia | Rio | A/C Compressor |
| 2006 | Kia | Rio5 | A/C Compressor |
