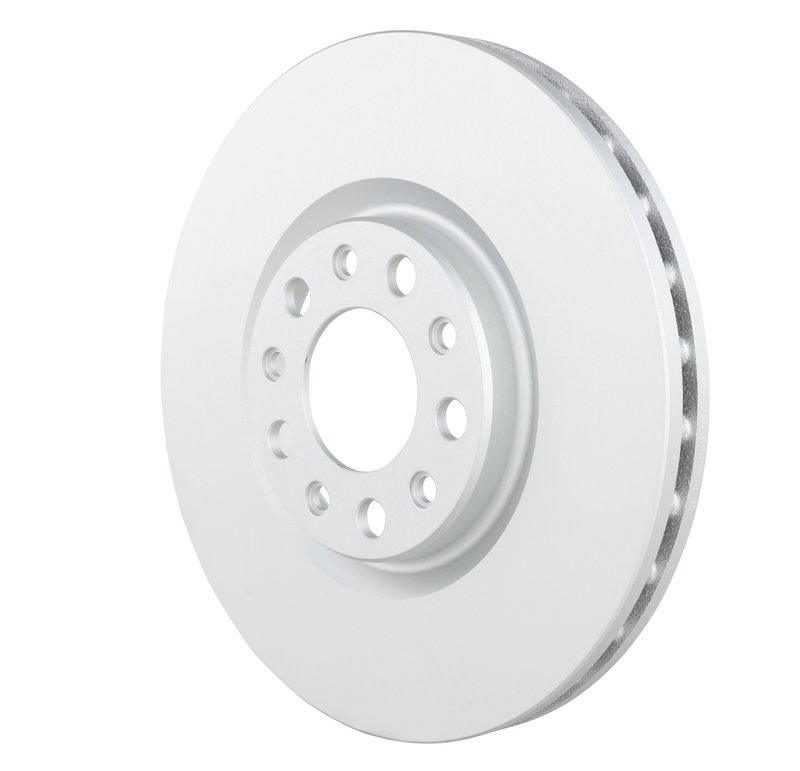

Bosch 53011461 Disc Brake Rotor - Front or Front Left

Bosch QuietCast Rotor for Jeep and Fiat

The Bosch QuietCast Disc Brake Rotor, part number 53011461, is a conventional vented front rotor built from iron alloy with a smooth brake surface. It features Geomet disc finish, a coated hat, and a rust-resistant coating to help maintain a clean appearance and consistent service life on compatible Jeep Renegade, Jeep Compass, and Fiat 500X applications.

Bosch QuietCast Disc Brake Rotor line focuses on OE-style fit and finish for drivers who want a direct replacement rotor with the correct dimensions and surface treatment. This rotor is directional and uses a 5-lug bolt pattern with a 110 mm bolt circle and 70 mm center bore.

• Iron alloy construction for conventional vented rotor applications
• Smooth brake surface finish for consistent pad contact
• Geomet disc finish with coated hat and rust-resistant coating
• Directional rotor design
• Outside diameter: 305 mm; nominal thickness: 28 mm; discard thickness: 26 mm
• 5 mounting bolt holes, 110 mm bolt circle, 70 mm center bore
• Rotor without hub assembly

Detailed Product Information

This Bosch QuietCast Disc Brake Rotor 53011461 is built for front brake service on select Fiat and Jeep platforms. It fits 2020-2023 Fiat 500X, front left; 2015-2023 Jeep Renegade, front left; 2017-2022 Jeep Compass, front; and 2016-2019 Fiat 500X, front. The vented construction and smooth surface support even pad contact, while the coated finishes help resist corrosion on exposed rotor surfaces.

This part cross-references Mopar 68249840AC for the same application.

Common Brake Service Issues

• Brake pulsation from a worn or uneven rotor surface
• Noise caused by rotor scoring or surface irregularity
• Corrosion on the hat or outer rotor surfaces
• Reduced braking consistency from rotor thickness wear
• Front brake service needs on Jeep Renegade, Jeep Compass, and Fiat 500X models

Installation Notes and Tips

Verify rotor dimensions, hub bore, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Replace or inspect brake pads at the same time if the existing pads are unevenly worn or glazed. Confirm left-front or front axle placement against the vehicle listing before ordering.

Quality Assurance

Bosch QuietCast brake components are engineered for OE-style replacement fitment and consistent braking performance. This rotor uses coated surfaces and rust-resistant protection to support long-term service in everyday driving conditions.
