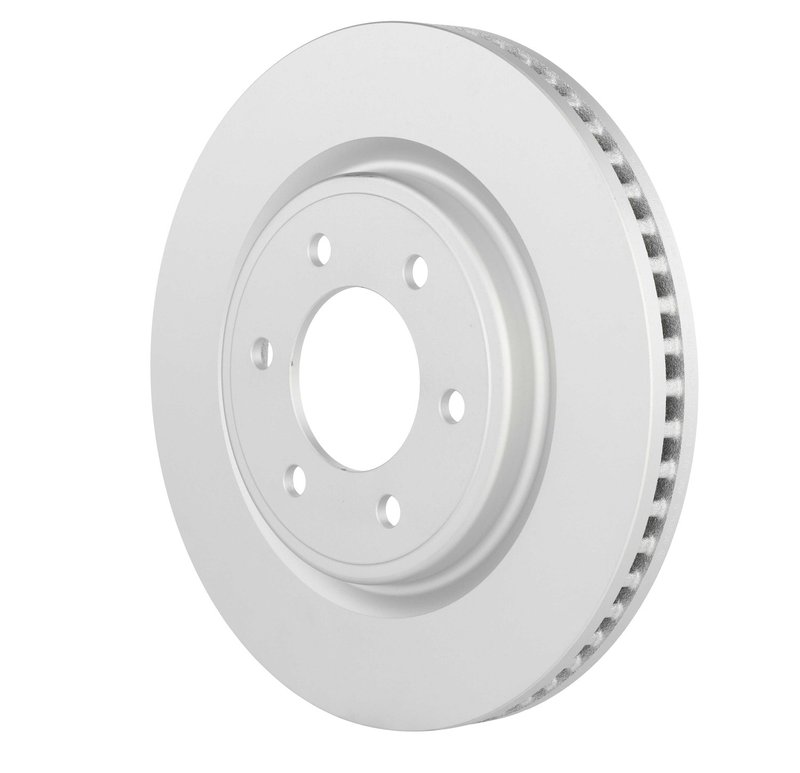

Bosch 53011463 Disc Brake Rotor - Front
| Brand | Bosch 53011463 |
|---|---|
| Position | Front |
| Material | Iron alloy |
| Discard Thickness | 32.5 |
| Brake Surface Finish | Smooth |
| Disc Finish | Geomet |
| Hat Finish | Coated |
| Rust Resistant Coating | Yes |
| Overall Height | 49.6 |
| Outside Diameter | 350 |
| Mounting Bolt Hole Quantity | 6 |
| Surface Type | Smooth |
| Bearings Included | No |
| Mounting Bolt Hole Circle Diameter | 135 |
| Directional or Non-Directional Brake Surface | Directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Automotive Item Weight (lbs) | 27.028673 lb |
| Center Bore Diameter | 90.1 mm |
| Construction | Vented |
| Nominal Thickness | 34 mm |
| Product Height | 1.948819 in |
| Rotor and Hub Assembly | No |
| Rotor Without Hub Assembly | Yes |
| Thickness (Disc Brake Rotor) | 34 mm |
| Product line | Bosch QuietCast Disc Brake Rotor |
| Fits | Ford and Lincoln · 17 vehicles |
OE-style replacement. QuietCast disc brake rotor for straightforward installation.
Iron alloy construction. Vented design with a smooth braking surface.
Rust-resistant coating. Geomet and coated hat finish help resist corrosion.
Cross-references ML1Z1125D for the same application. See all 1.
Bosch QuietCast Front Brake Rotor
The Bosch QuietCast Disc Brake Rotor, part number 53011463, is a front conventional vented rotor built from iron alloy with a smooth brake surface for consistent pad contact. It features a Geomet disc finish, coated hat, and rust-resistant coating to help maintain appearance and service life in demanding brake environments.
Compatible with select Ford Bronco, Ford Expedition, Ford F-150, and Lincoln Navigator front brake applications, this rotor is sized for a 350 mm outside diameter, 34 mm nominal thickness, and 90.1 mm center bore. Bosch QuietCast Disc Brake Rotor 53011463 is a direct-fit rotor without hub assembly and uses a directional brake surface design.
QuietCast Rotor Line Details
Bosch QuietCast brake components are positioned for OE-style replacement needs, with attention to rotor finish, corrosion protection, and dimensional accuracy. For buyers searching for a front brake rotor for 2021-2025 Ford F-150, 2022-2025 Ford Bronco, or 2022-2025 Lincoln Navigator, part number 53011463 matches the listed fitment and rotor specifications.
- Iron alloy construction with vented rotor design
- Smooth brake surface finish for pad contact consistency
- Geomet disc finish and coated hat for corrosion resistance
- 350 mm outside diameter and 34 mm nominal thickness
- 6-bolt mounting pattern with 135 mm bolt circle diameter
- Front position application for select Ford and Lincoln vehicles
Vehicle Fitment
- Fits 2022-2025 Ford Bronco, front
- Fits 2022-2025 Ford Expedition, front
- Fits 2021-2025 Ford F-150, front
- Fits 2022-2025 Lincoln Navigator, front
Common Brake Service Uses
- Replacing a worn front disc brake rotor
- Correcting brake pulsation from rotor wear or thickness variation
- Restoring smooth pad-to-rotor contact after scoring or heat checking
- Addressing corrosion on the braking surface or hat area
- Servicing front brake noise caused by uneven rotor condition
Installation Notes
Verify rotor diameter, thickness, center bore, and bolt pattern before installation. Clean the hub mounting surface thoroughly, inspect pads and calipers for wear, and confirm the rotor is installed on the correct front position for the listed Ford and Lincoln applications. Because this rotor is directional, follow the vehicle-specific orientation during installation.
Quality Assurance
Bosch QuietCast Disc Brake Rotor 53011463 is built with a rust-resistant coating, Geomet disc finish, and coated hat to support corrosion protection and stable service performance. This part cross-references ML1Z1125D for the same application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2025 | Ford | Bronco | 3.0L | V6 | Front | Bosch QuietCast Disc Brake Rotor |
| 2025 | Ford | Expedition | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2025 | Ford | F-150 | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2025 | Lincoln | Navigator | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2024 | Ford | Bronco | 3.0L | V6 | Front | Bosch QuietCast Disc Brake Rotor |
| 2024 | Ford | Expedition | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2024 | Ford | F-150 | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2024 | Lincoln | Navigator | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2023 | Ford | Bronco | 3.0L | V6 | Front | Bosch QuietCast Disc Brake Rotor |
| 2023 | Ford | Expedition | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2023 | Ford | F-150 | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2023 | Lincoln | Navigator | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2022 | Ford | Bronco | 3.0L | V6 | Front | Bosch QuietCast Disc Brake Rotor |
| 2022 | Ford | Expedition | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2022 | Ford | F-150 | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2022 | Lincoln | Navigator | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2021 | Ford | F-150 | — | — | Front | Bosch QuietCast Disc Brake Rotor |
| No rows match your filter. | ||||||
