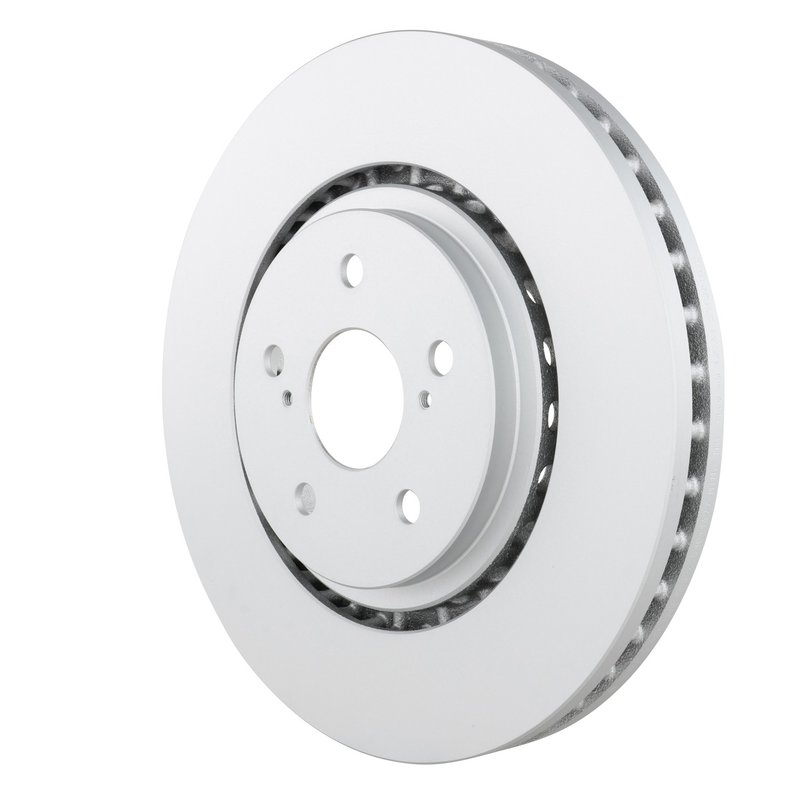

Bosch 53011477 Disc Brake Rotor - Front
| Brand | Bosch 53011477 |
|---|---|
| Position | Front |
| Material | Iron alloy |
| Discard Thickness | 31 |
| Brake Surface Finish | Smooth |
| Disc Finish | Geomet |
| Hat Finish | Coated |
| Rust Resistant Coating | Yes |
| Overall Height | 49.3 |
| Outside Diameter | 328 |
| Mounting Bolt Hole Quantity | 5 |
| Surface Type | Smooth |
| Bearings Included | No |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Directional or Non-Directional Brake Surface | Directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Automotive Item Weight (lbs) | 24.912236 lb |
| Center Bore Diameter | 62 mm |
| Construction | Vented |
| Nominal Thickness | 34 mm |
| Product Height | 1.940945 in |
| Rotor and Hub Assembly | No |
| Rotor Without Hub Assembly | Yes |
| Thickness (Disc Brake Rotor) | 34 mm |
| Product line | Bosch QuietCast Disc Brake Rotor |
| Fits | Toyota · 9 vehicles |
OE-style replacement. QuietCast rotor is built as a conventional, rotor-only design.
Vented construction. Helps promote airflow for more consistent braking performance.
Geomet finish. Adds rust resistance and a cleaner-looking surface.
Cross-references 4351208060 and 4351242070 for the same application. See all 2.
Bosch QuietCast Front Brake Rotor
The Bosch QuietCast Disc Brake Rotor, part number 53011477, is a front rotor built for smooth, consistent braking performance. It uses an iron alloy construction with a vented design, Geomet disc finish, and a coated hat to help resist rust and maintain a clean service appearance.
Compatible with select Toyota front brake applications, this rotor is a direct-fit option for drivers servicing a 2025 Toyota RAV4, 2021-2025 Toyota Sienna, or 2022-2024 Toyota RAV4 Prime. The Bosch QuietCast Disc Brake Rotor 53011477 is built around OE-style dimensions for straightforward replacement work.
Key Features
- Iron alloy construction for durable braking performance
- Vented rotor design for front axle use
- Smooth brake surface finish for even pad contact
- Geomet disc finish with rust-resistant coating
- Coated hat finish for added corrosion protection
- Directional brake surface design
- Rotor without hub assembly
- 5-bolt mounting pattern with 114.3 mm bolt circle
- 62 mm center bore diameter
- Nominal thickness: 34 mm; discard thickness: 31 mm
Product Details
Bosch QuietCast is Bosch’s brake rotor line focused on OE-style fit and finish for everyday service replacement. This rotor follows that approach with a smooth braking surface, vented construction, and corrosion-resistant finishes that help support long-term serviceability. The Bosch QuietCast Disc Brake Rotor 53011477 is a front disc brake rotor for Toyota vehicles that call for this size and configuration, including the Toyota RAV4, Toyota Sienna, and Toyota RAV4 Prime listed in the fitment data.
This part cross-references Monroe Shocks & Struts (e.g., 4351208060, 4351242070) for the same application.
Common Problems This Rotor Helps Address
- Brake pulsation caused by worn or uneven rotor surfaces
- Reduced braking consistency from heat-worn front rotors
- Surface rust on exposed rotor areas
- Noise related to rotor wear or finish degradation
- Service replacement needs for front brake maintenance
Installation Notes and Tips
Verify rotor diameter, center bore, bolt pattern, and thickness before installation. This rotor is a rotor without hub assembly and does not include bearings. Clean the hub mounting surface thoroughly before installing the new rotor, and inspect brake pads and caliper hardware for wear at the same time. For best results, follow the vehicle manufacturer’s service procedure and torque specifications.
Quality Assurance
Bosch QuietCast brake components are built to meet the demands of routine brake service with attention to fit, finish, and corrosion resistance. Part number 53011477 is specified for the front position on the listed Toyota applications, including 2025 Toyota RAV4, 2021-2025 Toyota Sienna, and 2022-2024 Toyota RAV4 Prime.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2025 | Toyota | RAV4 | PLUG-IN HYBRID EV-GAS (PHEV) | Front | Bosch QuietCast Disc Brake Rotor |
| 2025 | Toyota | Sienna | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2024 | Toyota | RAV4 Prime | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2024 | Toyota | Sienna | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2023 | Toyota | RAV4 Prime | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2023 | Toyota | Sienna | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2022 | Toyota | RAV4 Prime | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2022 | Toyota | Sienna | — | Front | Bosch QuietCast Disc Brake Rotor |
| 2021 | Toyota | Sienna | — | Front | Bosch QuietCast Disc Brake Rotor |
