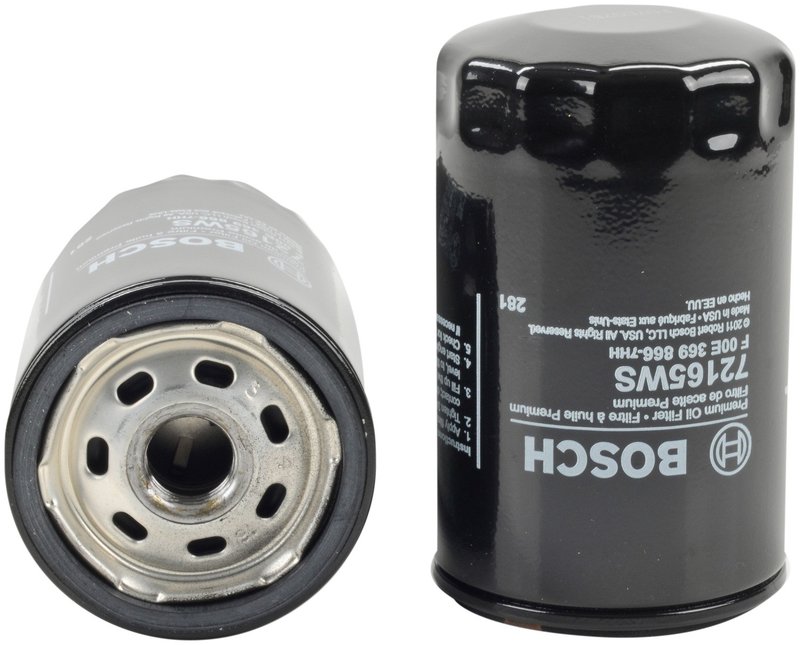

Bosch 72165WS Engine Oil Filter

Bosch Workshop Oil Filter 72165WS Overview

The Bosch Workshop Oil Filter 72165WS is a spin-on engine oil filter built for select Mercedes-Benz applications from 1985-1993. It uses cellulose paper media, a 30 micron rating, and an anti-drain back valve to help maintain oil flow protection during startup.

For Mercedes-Benz 190E, 300E, 300TE, 300SE, 300SEL, 260E, and 300CE applications, this Bosch Workshop Oil Filter focuses on filtration efficiency and dirt-holding capacity in a compact canister design.

Key Features

• Cellulose paper filter media for engine oil filtration
• Filters out 97.5% of pollutants entering the engine, per Bosch
• Holds up to 13 grams of dirt within the filter media, per Bosch
• Spin-on filter design with 3/4-16 inside thread size
• Anti-drain back valve helps retain oil in the filter after shutdown
• Bypass relief valve included with 25-35 PSI relief range
• 30 micron rating for fine contaminant capture
• Nitrile gasket material for sealing performance
• 4.84 in height and 2.992 in outside diameter
• Burst pressure rated at 200 PSI

Product Details

Bosch Workshop Oil Filters are part of the Bosch Workshop Oil Filter line, a range focused on engine protection and consistent oil filtration for workshop service use. Part number 72165WS is a spin-on/canister oil filter with cellulose paper filtering material, a nitrile gasket, and a bypass relief valve to support oil circulation under restricted-flow conditions. The anti-drain back valve helps reduce dry starts by keeping oil in the filter when the engine is off.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Engine wear caused by circulating dirt and debris
• Oil drain-back after shutdown that can contribute to dry starts
• Restricted oil flow during cold starts or high-load operation
• Contaminant buildup in service intervals
• Premature engine damage from inadequate filtration

Installation Notes

Verify the 3/4-16 thread size, filter height, and outside diameter before installation. Replace the filter during routine oil service and confirm the gasket seats cleanly on the mounting surface. Compatible With 1985-1993 Mercedes-Benz 190E, 1986-1993 Mercedes-Benz 300E, 1988-1993 Mercedes-Benz 300TE, 1988-1991 Mercedes-Benz 300SE, 1988-1991 Mercedes-Benz 300SEL, 1987-1989 Mercedes-Benz 260E, and 1988-1989 Mercedes-Benz 300CE.

Quality Assurance

Bosch specifies this filter to capture a high percentage of incoming pollutants and retain substantial dirt capacity within the media. The design includes an anti-drain back valve, bypass relief valve, and a 200 PSI burst pressure rating for service reliability in the listed Mercedes-Benz applications.
