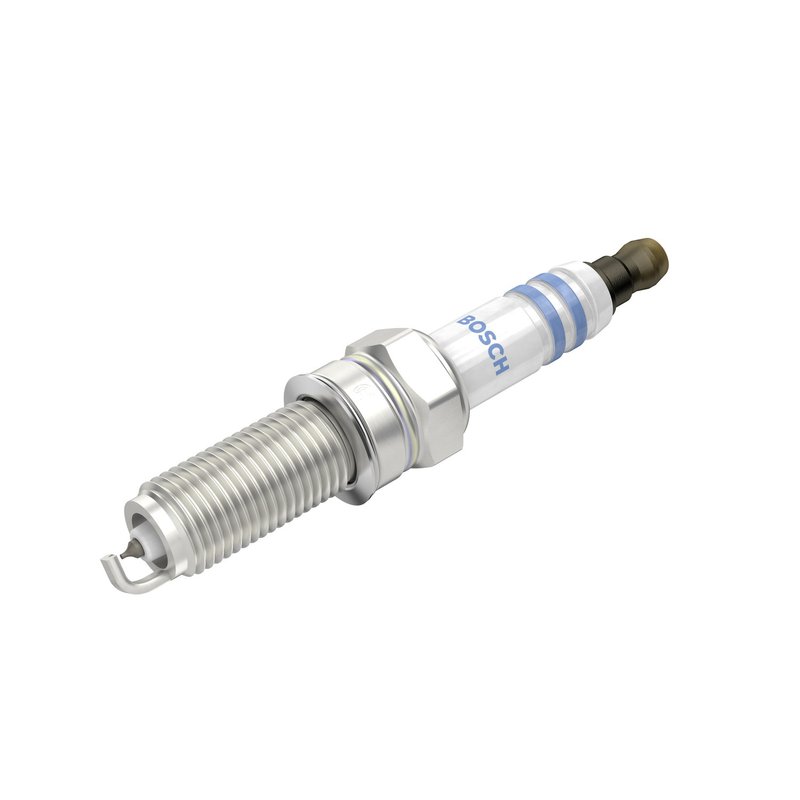

Bosch 96334 Spark Plug

Bosch OE Fine Wire Iridium Spark Plug

Bosch 96334 is an OE Fine Wire Iridium spark plug built for direct replacement service in a wide range of Hyundai and Kia engines. It uses an ultra-fine iridium center electrode for consistent firing performance, with OE-style construction aimed at stable ignition and long service life.

Compatible With 2011-2020 Kia Optima, 2011-2019 Hyundai Sonata, and other listed Hyundai/Kia applications, Bosch 96334 supports factory-style ignition performance for daily driving and maintenance service.

Key Features

• OE Fine Wire Iridium design for precise spark delivery
• Iridium center electrode tip with fine-wire construction
• Platinum ground electrode tip material with standard J-gap configuration
• Resistor spark plug with 6000 resistance specification
• Flat seat, 12 mm thread diameter, 16 mm hex size, and 26.5 mm reach
• Ceramic insulator and non-removable nut terminal
• Heat range 6 with 0.7 pre-gap size

Product Details

Bosch OE Fine Wire Iridium 96334 is engineered as an OE-style spark plug for modern 4-cycle gasoline engines that call for a fine-wire iridium firing pin. The copper core construction supports heat transfer, while the iridium center electrode and platinum ground tip help maintain stable ignition characteristics under normal operating conditions. This part number is commonly selected for Hyundai Elantra, Hyundai Tucson, Kia Soul, Kia Sportage, and related applications listed in the fitment data.

This part cross-references Bosch 96334 for the same application.

What It Helps Address

• Hard starting caused by worn spark plug electrodes
• Rough idle from inconsistent spark delivery
• Misfire conditions related to aged ignition components
• Reduced throttle response from degraded plug performance
• Maintenance replacement for OE-style ignition service

Installation Notes

Verify engine application, thread diameter, reach, seat type, and heat range before installation. Bosch 96334 uses a 12 mm thread, 16 mm hex, flat seat, and 0.7 pre-gap specification, so confirm the engine calls for those dimensions. Inspect ignition coils and plug wells during service, and follow the vehicle manufacturer’s torque and gap procedures.

Quality Assurance

Bosch OE Fine Wire Iridium spark plugs are built to OE-style specifications for consistent fit and ignition performance in the listed Hyundai and Kia applications. Bosch 96334 is designed for service use in vehicles such as the Kia Forte, Kia Seltos, Hyundai Kona, and Hyundai Elantra within the confirmed fitment range.
