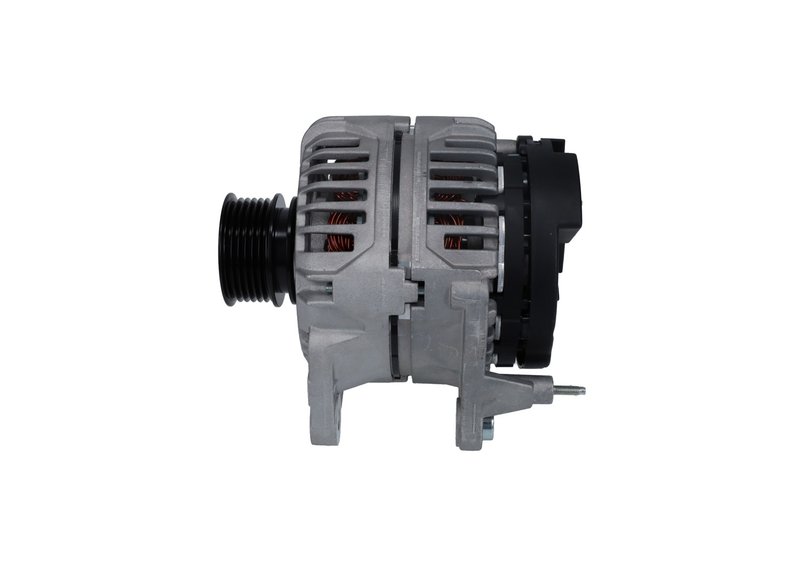

Bosch AL0716N Alternator
| Brand | Bosch AL0716N |
|---|---|
| Voltage | 14 |
| Plug Clock Rear View Main Mounting Ear at 6 O Clock | 1 |
| Fan Type | Internal |
| Ground Type | Negative |
| Mounting Configuration Code | Short |
| Rotation Direction | Clockwise (right) |
| One Wire Capable | No |
| Pulley Included | Yes |
| External Regulator Included | Yes |
| Pulley Groove Quantity | 6 |
| Case Color | Silver |
| Outside Pulley Diameter | 56 |
| Regulator Type | Internal |
| Decoupled Or Clutch Pulley | No |
| AC Service Tap | No |
| Case Material | Aluminum |
| Amperage Rating | 70 |
| Mounting Type | Single pivoted lever |
| Brushless | No |
| Automotive Item Weight (lbs) | 12.786811 lb |
| New Or Remanufactured | New |
| Product Length | 7.362205 in |
| Pulley Type / Belt Type (Alternator) | 6s |
| Product line | Alternator (New) |
| Fits | Volkswagen · 6 vehicles |
New replacement. Direct-fit alternator for charging system service and restoration.
14-volt output. Provides 70-amp charging capacity with internal regulation.
Complete pulley setup. Includes a 6-groove pulley with clockwise rotation design.
Cross-references 06A903026C, 06B903018TX and 028903028C for the same application. See all 5.
Product Overview
Bosch AL0716N is a new alternator built for direct replacement applications that require stable charging output and OE-style fitment. It is a 14-volt unit with a 70-amp rating, internal regulation, and a clockwise rotation design.
Compatible with select Volkswagen charging system applications, including Volkswagen Jetta, Volkswagen R32, and Volkswagen Beetle models listed below. Bosch AL0716N is engineered with an aluminum case, internal fan, and included pulley for a complete replacement setup.
Key Features
- 14-volt alternator with 70-amp output
- New unit with internal regulator and internal fan
- Aluminum case with silver finish
- 6-groove pulley, 56 mm outside diameter
- Clockwise rotation and single pivoted lever mounting
- Negative ground configuration
Detailed Description
Bosch AL0716N is a new charging system component designed for vehicles that need a replacement alternator with the correct electrical and mounting specifications. The unit uses a short mounting configuration, a 6S pulley type, and a rear plug clock position of 1 o'clock when viewed from the rear mounting ear reference. It also includes an external regulator and pulley as listed in the product data.
This alternator cross-references Bosch and OE-style part numbers such as 06A903026C and 06B903018TX for the same application. For Volkswagen Jetta, Volkswagen R32, and Volkswagen Beetle owners, matching the voltage, amperage, pulley style, and rotation direction is important for proper charging system operation. Bosch AL0716N is part of Bosch's Alternator (New) line, which focuses on new replacement charging components.
What It Is Used For
- Replacing a worn alternator that no longer maintains charging output
- Addressing battery warning lights caused by charging system faults
- Correcting low-voltage conditions from a failing internal regulator
- Restoring belt-driven charging performance when pulley wear is present
Installation Notes and Tips
Verify the vehicle's mounting configuration, pulley groove count, rotation direction, and electrical connector orientation before installation. Confirm that the 14-volt system, 70-amp rating, and negative ground setup match the original unit. Use the fitment list to confirm application details for the specific Volkswagen model and year.
Quality Assurance
Bosch Premium Alternators are designed, built, and tested to deliver consistent performance and reliability. Bosch AL0716N is a new alternator from a brand with established charging system expertise.
| Year | Make | Model | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2005 | Volkswagen | Jetta | Wagon | 1.9L | L4 | Alternator (New) |
| 2004 | Volkswagen | Jetta | Wagon | 1.9L | L4 | Alternator (New) |
| 2004 | Volkswagen | R32 | — | 3.2L | V6 | Alternator (New) |
| 2003 | Volkswagen | Beetle | Hatchback | 1.9L | L4 | Alternator (New) |
| 2002 | Volkswagen | Beetle | — | 1.9L | L4 | Alternator (New) |
| 2002 | Volkswagen | Jetta | Sedan | 1.9L | L4 | Alternator (New) |
| No rows match your filter. | ||||||
