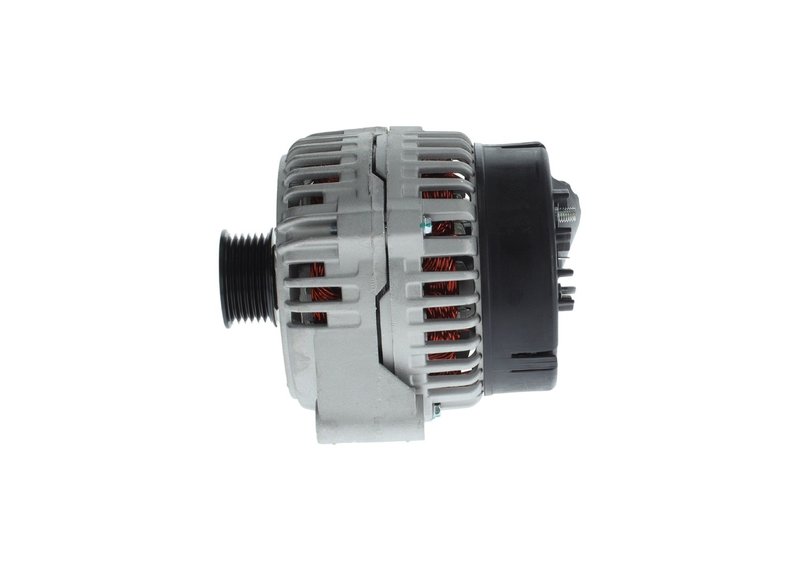

Bosch AL0768N Alternator
| Brand | Bosch AL0768N |
|---|---|
| Voltage | 14 |
| Plug Clock Rear View Main Mounting Ear at 6 O Clock | 7 |
| Fan Type | Internal |
| Ground Type | Negative |
| Mounting Configuration Code | Short |
| Rotation Direction | Clockwise (right) |
| One Wire Capable | No |
| Pulley Included | Yes |
| External Regulator Included | Yes |
| Pulley Groove Quantity | 6 |
| Case Color | Silver |
| Outside Pulley Diameter | 50 |
| Regulator Type | Internal |
| Decoupled Or Clutch Pulley | No |
| AC Service Tap | No |
| Case Material | Aluminum |
| Amperage Rating | 150 |
| Mounting Type | Single pivoted lever |
| Brushless | No |
| Automotive Item Weight (lbs) | 15.564636 lb |
| New Or Remanufactured | New |
| Product Length | 7.834646 in |
| Pulley Type / Belt Type (Alternator) | 6s |
| Product line | Alternator (New) |
| Fits | Mercedes-Benz · 8 vehicles |
New unit. Built as a replacement alternator for charging-system service.
14-volt output. Provides 150 amps with internal regulation for stable electrical performance.
Pulley included. Configured with a 6-groove belt drive and aluminum housing.
Cross-references 0111543202 for the same application. See all 1.
Product Overview
Bosch AL0768N is a new alternator built for charging-system replacement on select Mercedes-Benz applications. It is a 14-volt unit with a 150-amp rating, internal regulation, and a clockwise rotation design for the specified fitments.
Compatible with Mercedes-Benz CL500, S430, and S500 applications listed below, this Bosch alternator is configured with a pulley, aluminum case, and negative ground setup. Bosch AL0768N is a direct replacement option for restoring stable electrical output in the charging system.
Key Features
- 14-volt alternator with 150-amp output
- New unit with internal fan and internal regulator
- Includes pulley with 6-groove belt design
- Aluminum case with silver finish
- Clockwise rotation and single pivoted lever mounting type
- Cross-references Bosch 0111543202 for the same application
Detailed Description
Bosch AL0768N is engineered as a new charging-system component for Mercedes-Benz vehicles that require this specific alternator configuration. The unit uses a short mounting configuration, negative ground, and a 6S pulley type, with a 50 mm outside pulley diameter and internal cooling fan. Its internal regulator and included pulley support a clean replacement for the original charging setup.
This alternator is listed for 1998-2001 Mercedes-Benz CL500, 2000-2001 Mercedes-Benz S430, and 2000-2001 Mercedes-Benz S500. If you are replacing a worn charging unit on a Mercedes-Benz CL500, S430, or S500, Bosch AL0768N provides the specified electrical and mounting characteristics needed for the application.
Common Replacement Issues
- Low charging output or battery warning lights
- Electrical system voltage instability
- Noise or wear from a failing alternator assembly
- Charging problems caused by regulator or pulley wear
Installation Notes
Verify the mounting configuration, plug orientation, pulley type, rotation direction, and electrical specifications before installation. Confirm vehicle application details against the listed fitment for the Mercedes-Benz CL500, S430, or S500 to ensure the correct Bosch AL0768N alternator is selected.
Quality Assurance
Bosch Premium Alternators are designed, built, and tested for performance and reliability. Part number AL0768N is a new alternator, and it cross-references Bosch 0111543202 for the same application.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2001 | Mercedes-Benz | CL500 | 5.0L | V8 | Alternator (New) |
| 2001 | Mercedes-Benz | S430 | 4.3L | V8 | Alternator (New) |
| 2001 | Mercedes-Benz | S500 | 5.0L | V8 | Alternator (New) |
| 2000 | Mercedes-Benz | CL500 | 5.0L | V8 | Alternator (New) |
| 2000 | Mercedes-Benz | S430 | 4.3L | V8 | Alternator (New) |
| 2000 | Mercedes-Benz | S500 | 5.0L | V8 | Alternator (New) |
| 1999 | Mercedes-Benz | CL500 | 5.0L | V8 | Alternator (New) |
| 1998 | Mercedes-Benz | CL500 | 5.0L | V8 | Alternator (New) |
