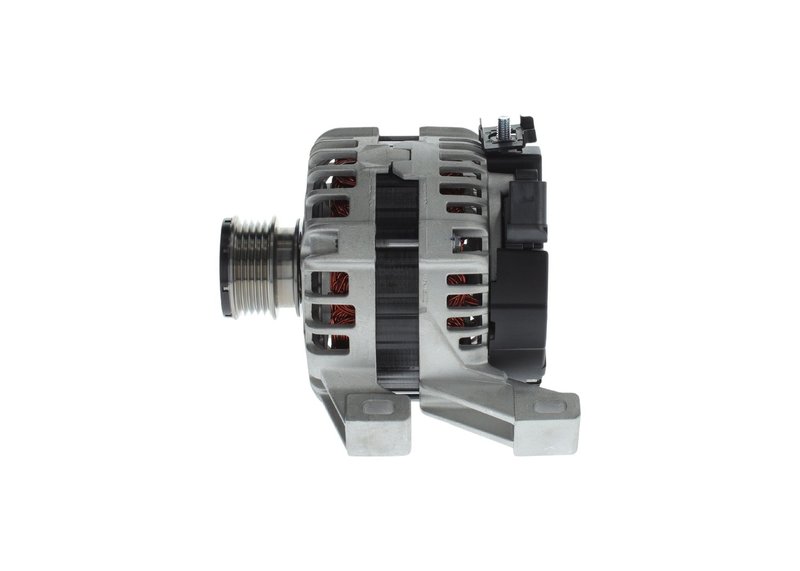

Bosch AL0792N Alternator
| Brand | Bosch AL0792N |
|---|---|
| Voltage | 14 |
| Plug Clock Rear View Main Mounting Ear at 6 O Clock | 12 |
| Fan Type | Internal |
| Ground Type | Negative |
| Mounting Configuration Code | Short |
| Rotation Direction | Clockwise (right) |
| One Wire Capable | No |
| Pulley Included | Yes |
| External Regulator Included | Yes |
| Pulley Groove Quantity | 5 |
| Outside Pulley Diameter | 54 |
| Regulator Type | Internal |
| Decoupled Or Clutch Pulley | Yes |
| AC Service Tap | No |
| Amperage Rating | 150 |
| Mounting Type | Foot-mounted |
| Brushless | No |
| Automotive Item Weight (lbs) | 14.770972 lb |
| New Or Remanufactured | New |
| Product Length | 7.559055 in |
| Pulley Type / Belt Type (Alternator) | 5s |
| Product line | Alternator (New) |
| Fits | Volvo · 7 vehicles |
OE-style replacement. New Bosch alternator for charging-system service.
Integrated regulation. Internal regulator and internal fan simplify electrical control.
Pulley included. 5-groove belt interface with decoupled clutch design.
Cross-references 36001105 for the same application. See all 1.
Alternator Overview
This Bosch new alternator, part number AL0792N, is built for charging-system replacement on select Volvo applications. It delivers 14 volts and 150 amps, with an internal regulator, internal fan, and negative ground configuration for stable electrical output.
Compatible With Volvo S60, Volvo V60, Volvo V60 Cross Country, and Volvo XC60 applications listed below, this AL0792N alternator includes a pulley and uses a foot-mounted, short mounting configuration. The clockwise rotation and 5-groove pulley setup match the specified charging-system layout.
- 14-volt, 150-amp output for charging-system service
- Internal regulator and internal fan for integrated operation
- Includes pulley with 5-groove belt interface
- Foot-mounted, short configuration with clockwise rotation
- New alternator construction from Bosch
Detailed Fitment
Fits 2013-2015 Volvo S60, N/A; Fits 2015 Volvo V60, N/A; Fits 2015 Volvo V60 Cross Country, N/A; Fits 2015-2016 Volvo XC60, N/A. This Bosch alternator is a direct replacement option for vehicles that require the specified voltage, amperage, pulley style, and mounting layout. The AL0792N part number is useful when matching the charging system to the original unit, and AL0792N is also the reference to verify against service records or catalog listings.
What It Helps Address
- Low charging output from a worn alternator
- Battery warning lights caused by charging-system faults
- Electrical instability from regulator or fan wear
- Belt-drive mismatch when the pulley specification no longer matches
Installation Notes
Verify the 14-volt system, 150-amp rating, foot-mounted layout, clockwise rotation, and 5-groove pulley before installation. Confirm connector orientation and mounting-ear clock position against the removed unit to ensure proper alignment on the Volvo S60, Volvo V60, Volvo V60 Cross Country, or Volvo XC60 application.
Quality Assurance
Bosch Premium Alternators are designed, built, and tested for performance and reliability. This new alternator is engineered as a replacement charging component for the listed applications.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2016 | Volvo | XC60 | 2.5L | L5 | Alternator (New) |
| 2015 | Volvo | S60 | 2.5L | L5 | Alternator (New) |
| 2015 | Volvo | V60 | 2.5L | L5 | Alternator (New) |
| 2015 | Volvo | V60 Cross Country | 2.5L | L5 | Alternator (New) |
| 2015 | Volvo | XC60 | 2.5L | L5 | Alternator (New) |
| 2014 | Volvo | S60 | 2.5L | L5 | Alternator (New) |
| 2013 | Volvo | S60 | 2.5L | L5 | Alternator (New) |
