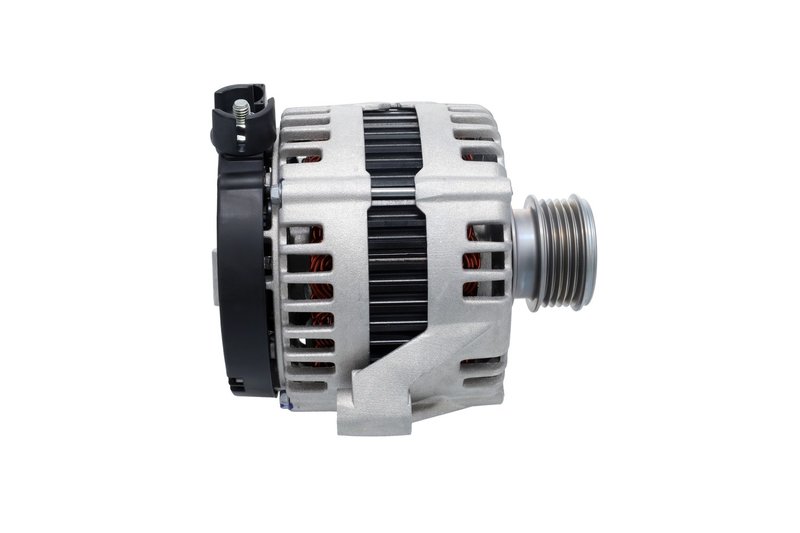

Bosch AL0896N Alternator

Bosch AL0896N Alternator for Volvo Charging Systems

The Bosch AL0896N is a new 14-volt alternator built for Volvo charging-system service on select S60, V60, V60 Cross Country, and XC60 applications. It combines a 180-amp output with an internal regulator, internal fan, and a foot-mounted short configuration for direct replacement use.

Key Features

• New Bosch Premium Alternator for charging-system replacement
• 14-volt, 180-amp output for Volvo electrical system demands
• Internal regulator and internal fan design
• Clockwise rotation with negative ground
• Included pulley with 5-groove, 5S belt type and decoupled clutch pulley
• Aluminum case with silver finish
• Foot-mounted, short mounting configuration
• Part number AL0896N for ordering and cross-reference use

Product Details

Bosch Premium Alternators are engineered, built, and tested for performance and reliability in charging-system applications. This AL0896N alternator uses a 54 mm outside pulley diameter, a 6 o’clock rear-view main mounting ear plug clock position, and a clockwise right-hand rotation. It is a new unit with an internal regulator, negative ground, and a decoupled clutch pulley to support stable belt operation in the specified Volvo platforms. This part number, AL0896N, is also useful when matching replacement requirements against OE-style charging components.

Compatible With 2013-2015 Volvo S60, N/A; 2015 Volvo V60, N/A; 2015 Volvo V60 Cross Country, N/A; and 2015 Volvo XC60, N/A. This part cross-references 36001341 for the same application.

Common Charging Issues This Part Can Address

• Low battery charging caused by a worn alternator
• Dim lights or electrical instability from weak output
• Battery warning lights related to charging-system failure
• Noise or belt irregularity from a failing pulley assembly
• Intermittent charging performance in Volvo S60, V60, V60 Cross Country, or XC60 models

Installation Notes and Tips

Verify the vehicle’s mounting style, pulley configuration, plug clock position, and belt type before installation. Confirm the alternator is matched to the vehicle’s 14-volt electrical system and negative-ground setup. Inspect the drive belt, belt tensioner, and charging connections during replacement to help ensure proper system operation after installation.

Quality Assurance

Bosch Premium Alternators are manufactured and tested to meet charging-system performance and reliability expectations for replacement use. The AL0896N is a new alternator built for consistent electrical output in the listed Volvo applications.
