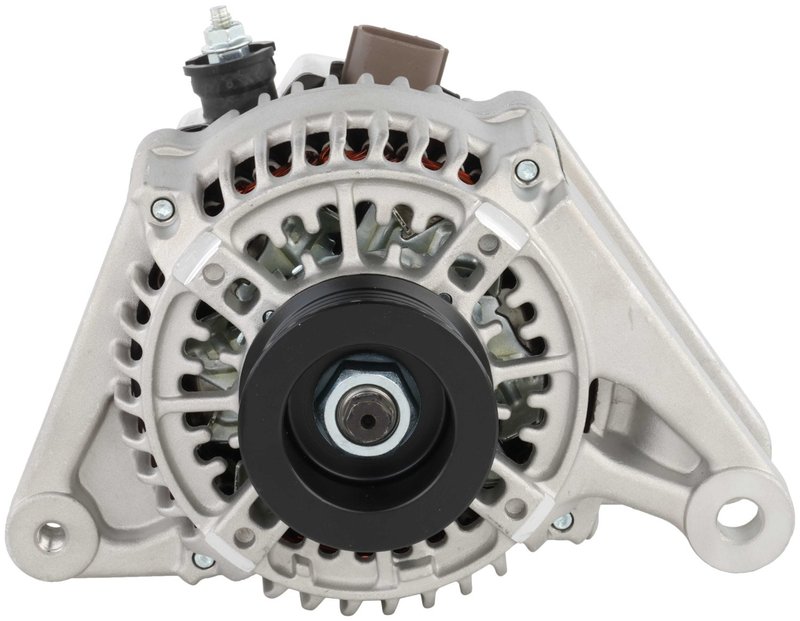

Bosch AL3300N Alternator
OE Quality 60-Day Returns
Bosch
 Alternator (New)

Bosch AL3300N Alternator

Brand Bosch AL3300N
Voltage 14
Plug Clock Rear View Main Mounting Ear at 6 O Clock 8
Fan Type Internal
Ground Type Negative
Mounting Configuration Code Short
Rotation Direction Clockwise (right)
One Wire Capable No
Pulley Included Yes
External Regulator Included Yes
Pulley Groove Quantity 6
Case Color Silver
Outside Pulley Diameter 55
Regulator Type Internal
Decoupled Or Clutch Pulley No
AC Service Tap No
Case Material Aluminum
Amperage Rating 80
Mounting Type Single pivoted lever
Brushless No
Automotive Item Weight (lbs) 11.993147 lb
New Or Remanufactured New
Product Length 6.574803 in
Pulley Type / Belt Type (Alternator) 6s
Product line Alternator (New)
Fits Pontiac and Toyota · 30 vehicles

OE-style replacement. New Bosch alternator with the correct charging-system configuration.

Internal regulation. Built with an internal regulator and internal fan for stable operation.

Pulley included. 6-groove pulley setup matches the specified belt drive design.

Cross-references 270600D110, 88969480 and 2706022030 for the same application. See all 4.

$209.84Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $209.84
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Alternator options

Alternator Overview

Bosch AL3300N is a new alternator built for charging-system replacement on select Toyota and Pontiac applications. It is a 14-volt unit with an internal regulator, internal fan, and clockwise rotation for the specified belt drive setup.

Compatible With Toyota Corolla, Toyota Matrix, Toyota Celica, Toyota MR2 Spyder, and Pontiac Vibe applications, this Bosch alternator is configured with a 6-groove pulley, aluminum case, and single pivoted lever mounting style. The AL3300N is a direct-fit charging component for vehicles that need a replacement alternator with the correct electrical and mechanical specifications.

Key Features

  • 14-volt alternator with 80-amp output rating
  • Internal regulator and internal cooling fan
  • 6-groove pulley included for the specified belt type
  • Aluminum housing with silver finish
  • New unit, not remanufactured
  • Bosch AL3300N part number for fitment verification

Detailed Description

Bosch Premium Alternators are engineered, assembled, and tested for dependable charging performance. The AL3300N uses a short mounting configuration, negative ground, and clockwise rotation, along with a 55 mm pulley diameter and 6S pulley type. These specifications matter when replacing a worn charging unit in a Toyota Corolla, Toyota Matrix, or Pontiac Vibe, where correct electrical output and pulley alignment are essential.

This Bosch AL3300N alternator cross-references 270600D110 and 88969480 for the same application.

Common Replacement Uses

  • Charging warning light caused by alternator output loss
  • Battery drain from insufficient charging voltage
  • Noise or belt tracking issues from a worn pulley assembly
  • Electrical instability from a failing internal regulator
  • Starting problems related to weak system charging

Installation Notes and Tips

Verify pulley groove count, mounting style, rotation direction, and electrical connector orientation before installation. Confirm the vehicle uses the listed alternator configuration and compare the original unit to Bosch AL3300N, especially on Toyota Celica and MR2 Spyder applications where belt and bracket details must match exactly.

Quality Assurance

Bosch Premium Alternators are designed, built, and tested to deliver consistent performance and reliability. Use the part number AL3300N to confirm the correct replacement before installation.

Related reading

This part fits 30 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelTransmissionLitersCylindersNotes
2008PontiacVibe—1.8LL4Alternator (New)
2008ToyotaCorolla—1.8LL4Alternator (New)
2008ToyotaMatrix—1.8LL4Alternator (New)
2007PontiacVibe—1.8LL4Alternator (New)
2007ToyotaCorolla—1.8LL4Alternator (New)
2007ToyotaMatrix—1.8LL4Alternator (New)
2006PontiacVibe—1.8LL4Alternator (New)
2006ToyotaCorolla—1.8LL4Alternator (New)
2006ToyotaMatrix—1.8LL4Alternator (New)
2005PontiacVibe—1.8LL4Alternator (New)
2005ToyotaCelicaAutomatic1.8LL4Alternator (New)
2005ToyotaCorolla—1.8LL4Alternator (New)
2005ToyotaMatrix—1.8LL4Alternator (New)
2005ToyotaMR2 Spyder—1.8LL4Alternator (New)
2004PontiacVibe—1.8LL4Alternator (New)
2004ToyotaCelicaAutomatic1.8LL4Alternator (New)
2004ToyotaCorolla—1.8LL4Alternator (New)
2004ToyotaMatrix—1.8LL4Alternator (New)
2004ToyotaMR2 Spyder—1.8LL4Alternator (New)
2003PontiacVibe—1.8LL4Alternator (New)
2003ToyotaCelicaAutomatic1.8LL4Alternator (New)
2003ToyotaCorolla—1.8LL4Alternator (New)
2003ToyotaMatrix—1.8LL4Alternator (New)
2003ToyotaMR2 Spyder—1.8LL4Alternator (New)
2002ToyotaCelicaAutomatic1.8LL4Alternator (New)
2002ToyotaMR2 Spyder—1.8LL4Alternator (New)
2001ToyotaCelicaAutomatic1.8LL4Alternator (New)
2001ToyotaMR2 Spyder—1.8LL4Alternator (New)
2000ToyotaCelicaAutomatic1.8LL4Alternator (New)
2000ToyotaMR2 Spyder—1.8LL4Alternator (New)
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
270600D1108896948027060220302706022040
