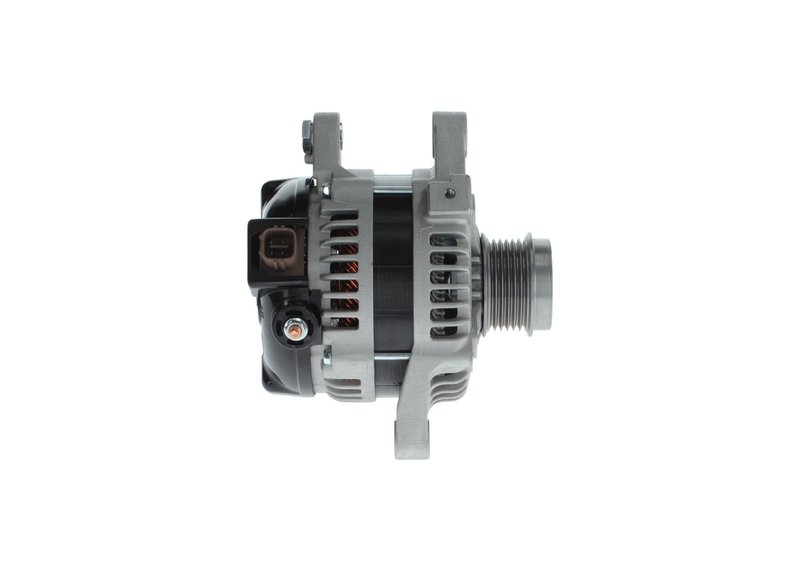

Bosch AL3363N Alternator
| Brand | Bosch AL3363N |
|---|---|
| Voltage | 14 |
| Plug Clock Rear View Main Mounting Ear at 6 O Clock | 12 |
| Fan Type | Internal |
| Ground Type | Negative |
| Mounting Configuration Code | Short |
| Rotation Direction | Clockwise (right) |
| One Wire Capable | No |
| Pulley Included | Yes |
| External Regulator Included | Yes |
| Pulley Groove Quantity | 6 |
| Outside Pulley Diameter | 55 |
| Regulator Type | Internal |
| Decoupled Or Clutch Pulley | Yes |
| AC Service Tap | No |
| Amperage Rating | 100 |
| Mounting Type | Single pivoted lever |
| Brushless | No |
| Automotive Item Weight (lbs) | 12.456118 lb |
| New Or Remanufactured | New |
| Product Length | 6.614173 in |
| Pulley Type / Belt Type (Alternator) | 6s |
| Product line | Alternator (New) |
| Fits | Scion and Toyota · 9 vehicles |
New unit. Bosch AL3363N is a new alternator for charging-system replacement.
Internal regulation. Built with an internal regulator and internal fan for stable operation.
Pulley included. Uses a 6-groove pulley with decoupled clutch design.
Cross-references 2706037041 for the same application. See all 1.
Bosch New Alternator
Bosch AL3363N is a new alternator built for charging-system replacement on select compact cars. It delivers 14-volt output, 100 amps of amperage, and an internal regulator for stable electrical performance.
Key Features
- New Bosch alternator, part number AL3363N
- 14-volt charging output with 100-amp rating
- Internal fan and internal regulator
- Includes pulley with 6-groove belt profile
- Decoupled clutch pulley and clockwise rotation
- Negative ground configuration with single pivoted lever mounting
Detailed Description
This Bosch Premium Alternator is designed, built, and tested for dependable charging performance. The AL3363N uses a short mounting configuration, a 6S pulley type, and a 55 mm outside pulley diameter to match the specified application. It is a direct replacement style alternator for select Toyota Corolla and Scion xD models, and the Bosch AL3363N part number is useful when verifying the correct charging unit before installation.
Bosch alternator AL3363N is listed for Fits 2008-2014 Scion xD, N/A and Fits 2009-2010 Toyota Corolla, N/A. This part cross-references 2706037041 for the same application.
What It Is Used For
- Restoring battery charging performance
- Replacing a worn or failed alternator
- Addressing low-voltage electrical operation
- Correcting charging-system warning light concerns
- Supporting stable electrical output for vehicle systems
Installation Notes and Tips
Verify the plug clocking, mounting configuration, pulley type, and amperage rating before installation. Confirm the Bosch AL3363N part number against the original unit and match the vehicle application exactly for Toyota Corolla and Scion xD fitment.
Quality Assurance
Bosch Premium Alternators are designed, built, and tested to provide consistent performance and reliability. The AL3363N is a new unit, not remanufactured.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2014 | Scion | xD | 1.8L | L4 | Alternator (New) |
| 2013 | Scion | xD | 1.8L | L4 | Alternator (New) |
| 2012 | Scion | xD | 1.8L | L4 | Alternator (New) |
| 2011 | Scion | xD | 1.8L | L4 | Alternator (New) |
| 2010 | Scion | xD | 1.8L | L4 | Alternator (New) |
| 2010 | Toyota | Corolla | 1.8L | L4 | Alternator (New) |
| 2009 | Scion | xD | 1.8L | L4 | Alternator (New) |
| 2009 | Toyota | Corolla | 1.8L | L4 | Alternator (New) |
| 2008 | Scion | xD | 1.8L | L4 | Alternator (New) |
