Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

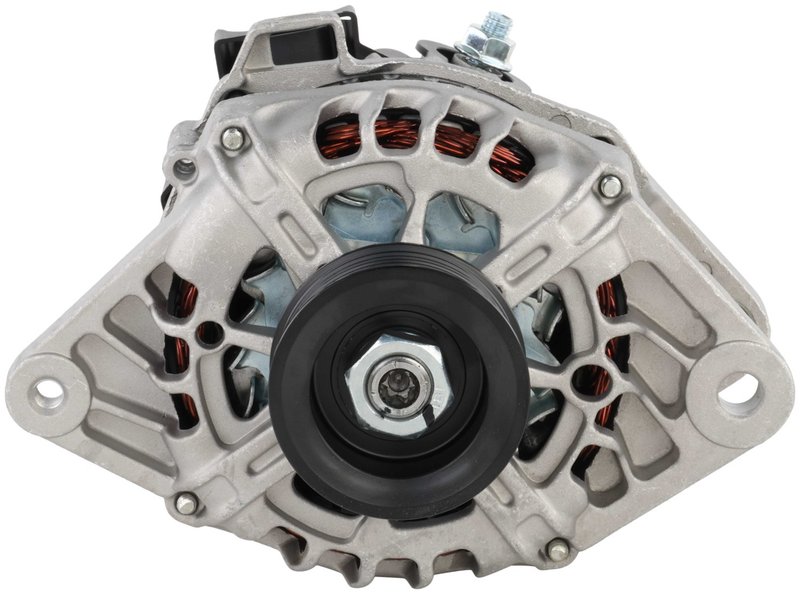

Bosch AL4089N Alternator
| Brand | Bosch AL4089N |
|---|---|
| Voltage | 14 |
| Plug Clock Rear View Main Mounting Ear at 6 O Clock | 10 |
| Fan Type | Internal |
| Ground Type | Negative |
| Mounting Configuration Code | Short |
| Rotation Direction | Clockwise (right) |
| One Wire Capable | No |
| Pulley Included | Yes |
| External Regulator Included | Yes |
| Pulley Groove Quantity | 6 |
| Case Color | Silver |
| Outside Pulley Diameter | 58 |
| Regulator Type | Internal |
| Decoupled Or Clutch Pulley | No |
| AC Service Tap | No |
| Case Material | Aluminum |
| Amperage Rating | 90 |
| Mounting Type | Single pivoted lever |
| Brushless | No |
| Automotive Item Weight (lbs) | 10.802651 lb |
| New Or Remanufactured | New |
| Product Length | 6.614173 in |
| Pulley Type / Belt Type (Alternator) | 6s |
| Product line | Alternator (New) |
| Fits | Hyundai and Kia · 14 vehicles |
New alternator. Built and tested for dependable charging performance.
Internal regulator. Integrated regulation helps simplify the charging system.
Aluminum case. Lightweight construction helps support reliable operation.
Cross-references 373002B300 and 373002B510 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Bosch AL4089N Alternator Overview
The Bosch AL4089N is a new 14-volt alternator built for dependable charging performance in select Hyundai and Kia applications. It is a Bosch Premium Alternator, engineered and tested for consistent output and reliable operation in daily driving conditions.
Compatible with 2012-2017 Hyundai Accent, 2012-2017 Hyundai Veloster, and 2012-2013 Kia Rio, this alternator is a direct-fit charging system replacement for vehicles using a 90-amp, clockwise-rotation design with a 6-groove pulley.
Key Features
- Part number: AL4089N
- 14-volt alternator with 90-amp amperage rating
- Internal fan and internal voltage regulator
- Negative ground configuration
- Clockwise (right) rotation direction
- Pulley included with 6-groove belt design
- Single pivoted lever mounting type with short mounting configuration
- Aluminum case with silver finish
- New unit, not remanufactured
Product Details
Bosch Alternator (New) AL4089N is built for vehicles that require a compact, belt-driven charging unit with internal regulation and a standard 6S pulley profile. The unit measures 6.614173 inches in length, uses a 58 mm outside pulley diameter, and is configured with a rear-view plug clock position of 10 o’clock and a main mounting ear at 6 o’clock. Bosch Premium Alternators are developed to deliver stable electrical output and dependable service life in demanding automotive use.
This part cross-references Hyundai/Kia OE numbers 373002B300 and 373002B510 for the same application. Search terms such as Bosch AL4089N alternator for Hyundai Accent, Bosch AL4089N alternator for Hyundai Veloster, and Bosch AL4089N alternator for Kia Rio help identify the correct charging component for these vehicles.
Common Problems This Part Can Address
- Battery warning light caused by weak charging output
- Low system voltage affecting lights, accessories, or starting performance
- Charging instability from a worn alternator
- Electrical issues related to failing internal regulator operation
- Noise or belt-drive concerns from a damaged alternator pulley assembly
Installation Notes
Verify pulley groove count, rotation direction, mounting style, and plug orientation before installation. Confirm the vehicle uses a 14-volt, negative-ground charging system and match the alternator to the existing belt drive layout. For best results, inspect the battery, drive belt, and charging connections during replacement so the new alternator can operate correctly.
Quality Assurance
This Bosch Premium Alternator is new and factory-built for charging-system service. Bosch designs, builds, and tests these alternators to support reliable performance and consistent electrical output in the listed Hyundai Accent, Hyundai Veloster, and Kia Rio applications.
| Year | Make | Model | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2017 | Hyundai | Accent | — | 1.6L | L4 | Alternator (New) |
| 2017 | Hyundai | Veloster | — | 1.6L | L4 | Alternator (New) |
| 2016 | Hyundai | Accent | — | 1.6L | L4 | Alternator (New) |
| 2016 | Hyundai | Veloster | — | 1.6L | L4 | Alternator (New) |
| 2015 | Hyundai | Accent | — | 1.6L | L4 | Alternator (New) |
| 2015 | Hyundai | Veloster | — | 1.6L | L4 | Alternator (New) |
| 2014 | Hyundai | Accent | — | 1.6L | L4 | Alternator (New) |
| 2014 | Hyundai | Veloster | — | 1.6L | L4 | Alternator (New) |
| 2013 | Hyundai | Accent | — | 1.6L | L4 | Alternator (New) |
| 2013 | Hyundai | Veloster | — | 1.6L | L4 | Alternator (New) |
| 2013 | Kia | Rio | — | 1.6L | L4 | Alternator (New) |
| 2012 | Hyundai | Accent | — | 1.6L | L4 | Alternator (New) |
| 2012 | Hyundai | Veloster | — | 1.6L | L4 | Alternator (New) |
| 2012 | Kia | Rio | Sedan | 1.6L | L4 | Alternator (New) |
| No rows match your filter. | ||||||
