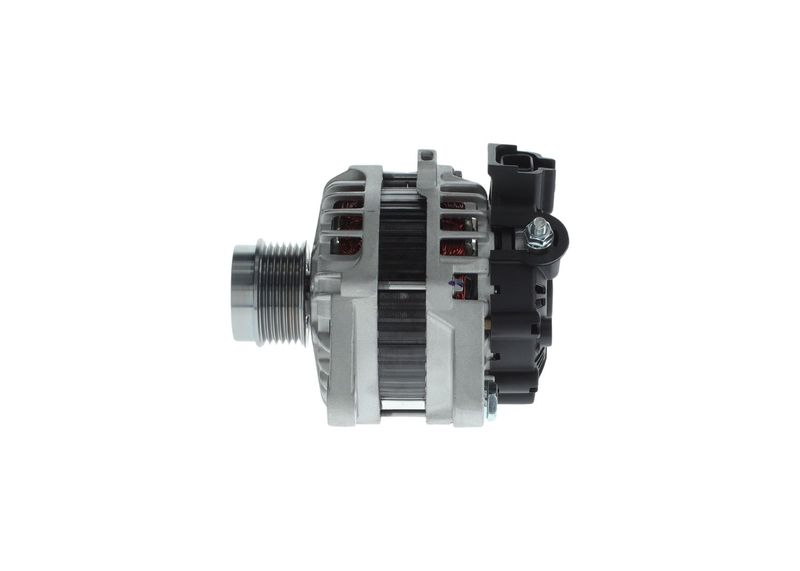

Bosch AL4092N Alternator
| Brand | Bosch AL4092N |
|---|---|
| Voltage | 14 |
| Plug Clock Rear View Main Mounting Ear at 6 O Clock | 2 |
| Fan Type | Internal |
| Ground Type | Negative |
| Mounting Configuration Code | Short |
| Rotation Direction | Clockwise (right) |
| One Wire Capable | No |
| Pulley Included | Yes |
| External Regulator Included | Yes |
| Pulley Groove Quantity | 6 |
| Outside Pulley Diameter | 58 |
| Regulator Type | Internal |
| Decoupled Or Clutch Pulley | Yes |
| AC Service Tap | No |
| Amperage Rating | 90 |
| Mounting Type | Single pivoted lever |
| Automotive Item Weight (lbs) | 10.890836 lb |
| New Or Remanufactured | New |
| Product Length | 7.165354 in |
| Pulley Type / Belt Type (Alternator) | 6s |
| Product line | Alternator (New) |
| Fits | Kia · 2 vehicles |
New unit. Built for charging-system replacement with Bosch engineering and testing.
Integrated regulation. Internal regulator and internal fan support stable electrical operation.
Pulley included. 6-groove pulley setup with decoupled clutch design for proper belt drive.
Cross-references 373002B150 for the same application. See all 1.
Overview
Bosch AL4092N is a new alternator built for direct charging-system replacement on select applications. It delivers 14-volt output, 90-amp capacity, and an internal regulator for stable electrical performance.
Fits 2012-2013 Kia Soul, N/A. This Bosch alternator is a fitment-specific replacement for charging system service on the Kia Soul, with a clockwise rotation design and a 6-groove pulley setup.
Key Features
- New alternator with Bosch engineering and testing standards
- 14-volt, 90-amp output for dependable charging performance
- Internal fan and internal regulator for integrated operation
- Includes pulley and decoupled clutch pulley design
- Single pivoted lever mounting configuration with short mounting code
Detailed Description
The Bosch AL4092N alternator is designed for vehicles that require a new charging unit with the correct electrical and mounting specifications. It uses negative ground, clockwise rotation, and a 6S pulley type with six grooves and a 58 mm outside diameter. The unit also includes an external regulator component as listed in the product data, along with AC service tap exclusion and one-wire non-capability.
Fits 2012-2013 Kia Soul, N/A. This part cross-references Hyundai/Kia 373002B150 for the same application. Bosch AL4092N is a practical replacement when the original alternator shows charging faults or output instability.
Common Uses
- Charging warning light or battery light concerns
- Low system voltage during normal driving
- Battery not maintaining charge after replacement
- Alternator noise or pulley-related wear
- Electrical accessories operating inconsistently
Installation Notes
Verify pulley groove count, rotation direction, mounting style, and electrical connector layout before installation. Confirm the vehicle uses the listed 14-volt, 90-amp alternator configuration and match the mounting code and plug orientation to the original unit.
Quality Assurance
Bosch Premium Alternators are designed, built, and tested for performance and reliability. AL4092N is a new unit intended to meet the specifications required for the listed application.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2013 | Kia | Soul | 1.6L | L4 | Alternator (New) |
| 2012 | Kia | Soul | 1.6L | L4 | Alternator (New) |
