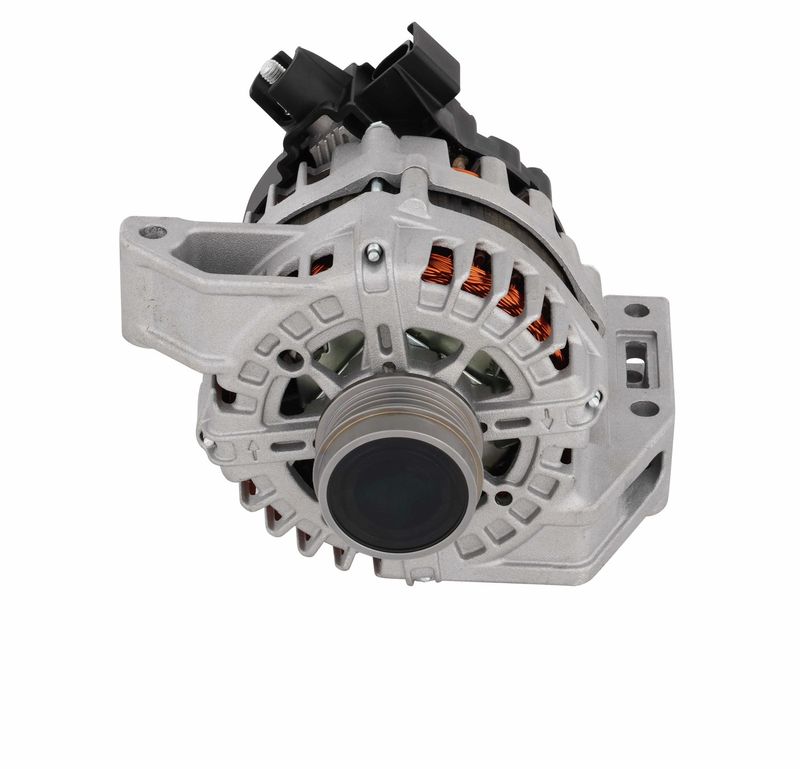

Bosch AL7688N Alternator
| Brand | Bosch AL7688N |
|---|---|
| Voltage | 14 |
| Plug Clock Rear View Main Mounting Ear at 6 O Clock | 3 |
| Fan Type | Internal |
| Ground Type | Negative |
| Mounting Configuration Code | Short |
| Rotation Direction | Clockwise (right) |
| One Wire Capable | No |
| Pulley Included | Yes |
| External Regulator Included | Yes |
| Pulley Groove Quantity | 4 |
| Case Color | Silver |
| Outside Pulley Diameter | 52.5 |
| Regulator Type | Internal |
| Decoupled Or Clutch Pulley | Yes |
| AC Service Tap | No |
| Case Material | Aluminum |
| Amperage Rating | 150 |
| Mounting Type | Foot-mounted |
| Brushless | No |
| Automotive Item Weight (lbs) | 13.889123 lb |
| New Or Remanufactured | New |
| Product Length | 7.283465 in |
| Pulley Type / Belt Type (Alternator) | 4s |
| Product line | Alternator (New) |
| Fits | Ford · 7 vehicles |
New replacement. Built as a fresh alternator service part for charging-system repair.
Integrated regulation. Internal regulator and fan simplify the charging assembly design.
Complete pulley setup. Includes a decoupled clutch pulley with 4-groove belt configuration.
Cross-references BV6Z10346F for the same application. See all 1.
Overview
Bosch AL7688N is a new alternator built for charging-system replacement on select Ford applications. It delivers 14-volt output with a 150-amp rating, internal regulation, and a pulley already included for a straightforward service replacement.
Key Features
- 14-volt alternator with 150-amp output for stable electrical charging.
- Internal fan and internal regulator for integrated operation.
- Foot-mounted, short mounting configuration with clockwise rotation.
- Aluminum case with silver finish for durable construction.
- Decoupled clutch pulley and 4-groove pulley design included.
Detailed Description
Bosch Alternator AL7688N is a new charging component engineered for direct replacement use where the original unit matches the listed fitment. It features a negative ground design, internal regulator, and a 3 o'clock rear-view main mounting ear plug clock position. The unit uses a 4S pulley type, measures 52.5 mm outside pulley diameter, and is configured with a foot-mounted, short case layout. This Bosch alternator is listed for 2012-2018 Ford Focus applications and is also referenced by part number BV6Z10346F for the same application. Bosch AL7688N supports dependable charging performance in Ford Focus service work when the original alternator has failed or charging output has dropped.
What It Is Used For
- Restoring battery charging when the alternator no longer maintains system voltage.
- Replacing a worn or noisy alternator bearing or pulley assembly.
- Correcting charging-system warning lights caused by alternator failure.
- Addressing low-output electrical performance under normal driving loads.
Installation Notes and Tips
Verify the mounting style, pulley configuration, plug clock position, and rotation direction before installation. Confirm the vehicle uses the listed 14-volt, 150-amp alternator specification and compare the original unit to Bosch AL7688N before removal. For fitment, this part fits 2012-2018 Ford Focus, N/A.
Quality Assurance
Bosch Premium Alternators are designed, built, and tested for performance and reliability. New construction and OE-style electrical specifications support consistent replacement service.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2018 | Ford | Focus | 2.0L | L4 | FLEX | Alternator (New) |
| 2017 | Ford | Focus | 2.0L | L4 | — | Alternator (New) |
| 2016 | Ford | Focus | 2.0L | L4 | — | Alternator (New) |
| 2015 | Ford | Focus | 2.0L | L4 | — | Alternator (New) |
| 2014 | Ford | Focus | 2.0L | L4 | GAS | Alternator (New) |
| 2013 | Ford | Focus | 2.0L | L4 | GAS | Alternator (New) |
| 2012 | Ford | Focus | 2.0L | L4 | — | Alternator (New) |
