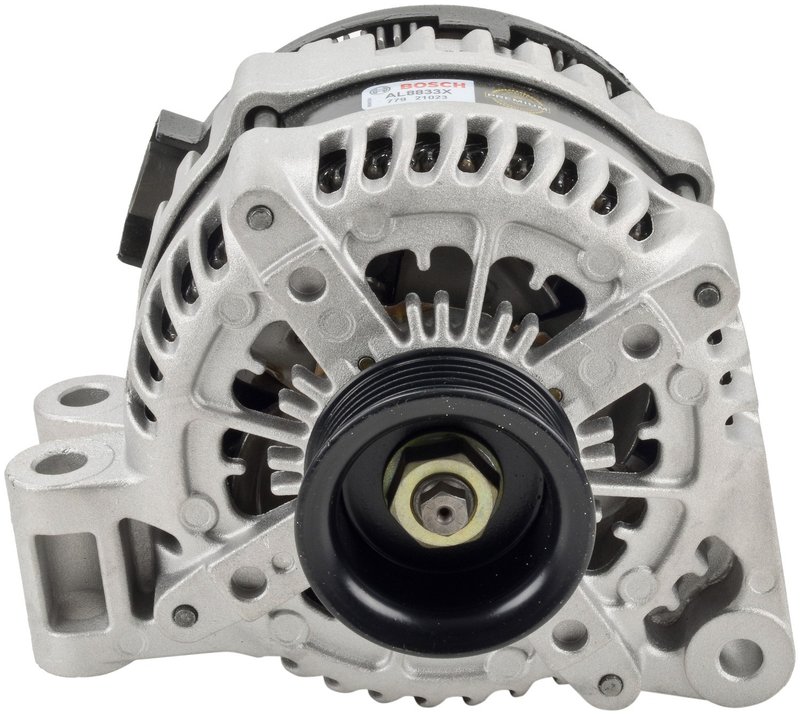

Bosch AL8833X Alternator
| Brand | Bosch AL8833X |
|---|---|
| Voltage | 12 |
| Plug Clock Rear View Main Mounting Ear at 6 O Clock | 5 |
| Plug Type | 346 |
| Fan Type | Internal |
| Rotation Direction | Clockwise |
| External Fan Included | Yes |
| One Wire Capable | No |
| Pulley Included | Yes |
| External Regulator Included | Yes |
| Pulley Groove Quantity | 6 |
| Case Color | Aluminum |
| Outside Pulley Diameter | 58 |
| Regulator Type | Internal |
| Case Material | Aluminum |
| Amperage Rating | 170 |
| New Or Remanufactured | Remanufactured |
| Original Equipment Manufacturer Names | Nd |
| Packaging | Box |
| Pulley Type | 6s |
| Pulley Type / Belt Type (Alternator) | 6s |
| Product line | Alternator (Remanufactured) |
| Fits | Cadillac, Chevrolet, and Suzuki · 16 vehicles |
Remanufactured unit. Built and tested for dependable charging performance.
Aluminum case. Lightweight construction helps support reliable operation.
Includes pulley. Ready for a more complete installation.
Cross-references 3140078J10, 15136252 and 23106528 for the same application. See all 3.
Bosch AL8833X Remanufactured Alternator
Bosch AL8833X is a remanufactured 12-volt alternator built for charging-system performance and dependable electrical output. It is a direct-fit replacement for select Cadillac XTS, Chevrolet Impala, Chevrolet Impala Limited, and Suzuki XL-7 applications with a 170 amp rating.
Key Features
- Remanufactured Bosch alternator for charging-system service
- 12-volt design with 170 amp amperage rating
- Internal fan and internal regulator configuration
- Clockwise rotation direction
- 6-groove pulley included with 58 mm outside pulley diameter
- Aluminum case and aluminum case color
- Plug type 346 with rear-view plug clock position at 6 o’clock
- External fan included and external regulator included
Product Details
Bosch Premium Alternators are remanufactured, built, and tested to deliver consistent charging performance and reliability. The AL8833X uses a 6S pulley/belt type, internal fan design, and internal regulator setup to match the specified vehicle charging system. This part cross-references 3140078J10 and 15136252 for the same application. It is a strong service option for drivers searching for a Bosch alternator AL8833X for Cadillac XTS, Chevrolet Impala, or Suzuki XL-7 charging repair.
Common Problems This Part Can Address
- Battery warning light caused by alternator output loss
- Low charging voltage during idle or driving
- Dim lights or unstable electrical performance
- Charging-system failure after alternator wear
- Noise or belt-drive issues related to a failing alternator assembly
Installation Notes and Tips
Verify the vehicle’s original alternator amperage, plug type, pulley configuration, and rotation before installation. This Bosch AL8833X alternator is listed for Fits 2013-2019 Cadillac XTS, N/A; Fits 2014-2016 Chevrolet Impala Limited, N/A; Fits 2012-2014 Chevrolet Impala, N/A; and Fits 2007-2009 Suzuki XL-7, N/A. Confirm the charging system and belt alignment after installation, and inspect the battery and related wiring if the original alternator failed from an electrical fault.
Quality Assurance
Bosch remanufactured alternators are produced and tested to meet application-specific performance expectations for charging reliability. The AL8833X is packaged in a box and built with aluminum housing components for service-ready fitment.
| Year | Make | Model | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2019 | Cadillac | XTS | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2018 | Cadillac | XTS | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2017 | Cadillac | XTS | Hearse | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2016 | Cadillac | XTS | Hearse | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2016 | Chevrolet | Impala Limited | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2015 | Cadillac | XTS | Hearse | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2015 | Chevrolet | Impala Limited | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2014 | Cadillac | XTS | Hearse | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2014 | Chevrolet | Impala | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2014 | Chevrolet | Impala Limited | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2013 | Cadillac | XTS | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2013 | Chevrolet | Impala | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2012 | Chevrolet | Impala | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2009 | Suzuki | XL-7 | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2008 | Suzuki | XL-7 | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
| 2007 | Suzuki | XL-7 | — | 3.6L | V6 | To 170 Amp Alternator; Alternator (Remanufactured) |
