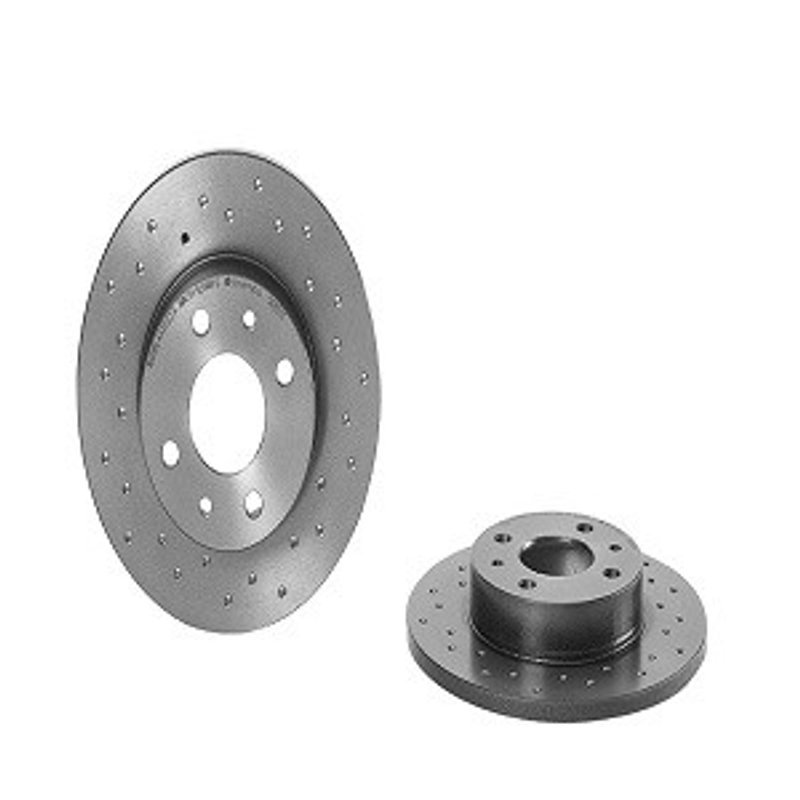

Brembo 08.5085.1X Disc Brake Rotor - Rear

Overview of Brembo Premium Xtra Cross Drilled UV Coated Rotor

The Brembo Premium Xtra Cross Drilled UV Coated Rotor (Part Number 08.5085.1X) is engineered for reliable braking performance on the Fiat 500. Designed with precision and durability in mind, this disc brake rotor offers enhanced heat dissipation and corrosion resistance for consistent stopping power.

• Material: Grey cast iron for strength and heat management
• Braking Surface: Cross drilled to improve cooling and reduce brake fade
• Rust Resistant Coating: UV coated to protect against corrosion
• Rotor Type: Solid disc design for durability
• Dimensions: 40 mm height, 59 mm centering diameter, nominal thickness 11 mm
• Fixing Screws: Included for straightforward installation
• Torque Specification: 98 Nm for proper mounting
• Number of Holes: 4 drilled holes for optimized heat dispersion

Detailed Product Description

This Brembo disc brake rotor is crafted from grey cast iron, a material known for its excellent thermal conductivity and wear resistance. The cross drilled braking surface features four holes that help dissipate heat generated during braking, reducing the risk of brake fade and maintaining consistent performance. The rotor is solid rather than vented, providing a robust structure suitable for everyday driving conditions. A UV coating adds a layer of rust resistance, extending the rotor's service life by protecting it from environmental elements. With a centering diameter of 59 mm and a height of 40 mm, this rotor is specifically designed to fit the Fiat 500, ensuring precise alignment and optimal braking efficiency. The included fixing screws and specified torque of 98 Nm facilitate proper installation and secure fitment.

About the Premium Xtra Cross Drilled UV Coated Rotor Line

The Premium Xtra Cross Drilled UV Coated Rotor line by Brembo focuses on combining enhanced braking performance with durability. The UV coating provides additional protection against corrosion, while the cross drilled design improves heat dissipation. This product line is tailored for drivers seeking reliable and consistent braking components that meet OEM standards, making it a suitable choice for the Fiat 500 application.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Fiat 500 models
• Improves heat management to reduce brake fade during frequent stops
• Addresses corrosion issues with UV coated surface
• Restores braking performance compromised by surface damage or scoring
• Ensures proper rotor thickness for safe and effective braking

Installation Notes and Tips

• Ensure the rotor is compatible with Fiat 500 before installation
• Use the included fixing screws and tighten to the specified torque of 98 Nm
• Check rotor thickness; minimum thickness is 9.5 mm to maintain safety
• Clean the rotor surface before installation to remove any protective oils
• Inspect brake pads and replace if worn to maximize rotor lifespan

Quality Assurance and Warranty

Brembo rotors are manufactured to meet strict quality standards, ensuring reliable performance and durability. The Premium Xtra Cross Drilled UV Coated Rotor undergoes rigorous testing for material integrity and coating adhesion. While specific warranty details are not provided here, Brembo products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
