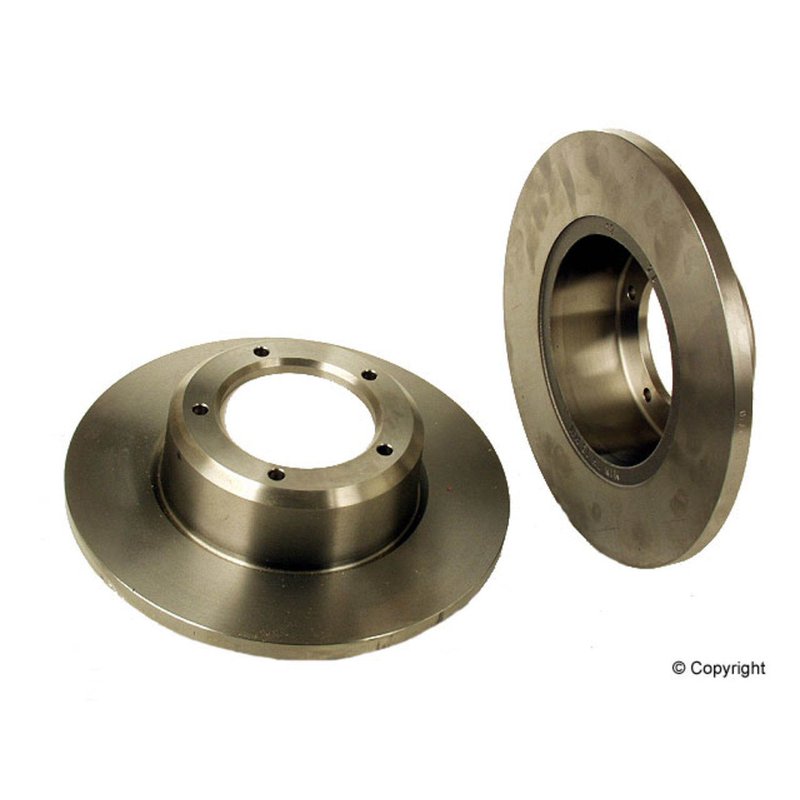

Brembo 08.5347.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

The Brembo 08.5347.11 is a premium UV coated OE equivalent disc brake rotor for front axle applications. It is built as a direct replacement for select Land Rover Discovery, Defender, and Range Rover models, with a focus on stable braking feel, corrosion protection, and OE-style fitment.

The Brembo Premium UV Coated Rotor line uses a solvent-free coating to protect the disc surface, including the braking plate areas. Where applicable, high carbon cast iron helps reduce noise and vibration while supporting consistent braking performance and driving comfort.

Key Features

• Part number 08.5347.11
• Front disc brake rotor for select Land Rover applications
• UV coated rust-resistant surface for added corrosion protection
• Grey cast iron construction
• Solid rotor design
• Outside diameter: 298 mm
• Nominal thickness: 14 mm; minimum thickness: 13 mm
• 5-hole bolt pattern with 101 mm centering diameter
• Torque spec: 130 Nm
• Intelligent marking location shows part number and minimum thickness

Product Details

Brembo 08.5347.11 is engineered as an OE equivalent replacement rotor for drivers servicing older Land Rover braking systems. It is a solid front rotor with precise dimensions for proper rotor-to-hub fit and dependable pedal response. This rotor is listed for 1987-1989 Land Rover Range Rover front, 1993 Land Rover Defender 110 front, 1994-1998 Land Rover Discovery front, 1997 Land Rover Defender 90 front, and 1999 Land Rover Discovery front except Series II Series. This part cross-references Raybestos Brakes 96903 for the same application.

Common Brake Issues It Can Address

• Brake pulsation from worn or uneven rotor surfaces
• Noise and vibration during braking
• Corrosion on exposed rotor surfaces
• Reduced braking consistency from rotors below minimum thickness
• Fitment problems caused by incorrect OE-style dimensions

Installation Notes

Replace rotors and pads together to restore braking performance. For best results, pair this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations. Verify rotor thickness, hub fit, and torque specification during installation, and confirm the vehicle application before service. Compatible with front brake service on 1987-1989 Land Rover Range Rover, 1993 Land Rover Defender 110, 1994-1998 Land Rover Discovery, 1997 Land Rover Defender 90, and 1999 Land Rover Discovery except Series II Series.

Quality Assurance

Brembo develops this UV coated rotor as a direct replacement that meets or exceeds OEM specifications. The UV coating is solvent free, and the rotor includes clear wear identification markings for service reference. Brembo is a trusted braking brand with a long OE-equivalent product focus.
