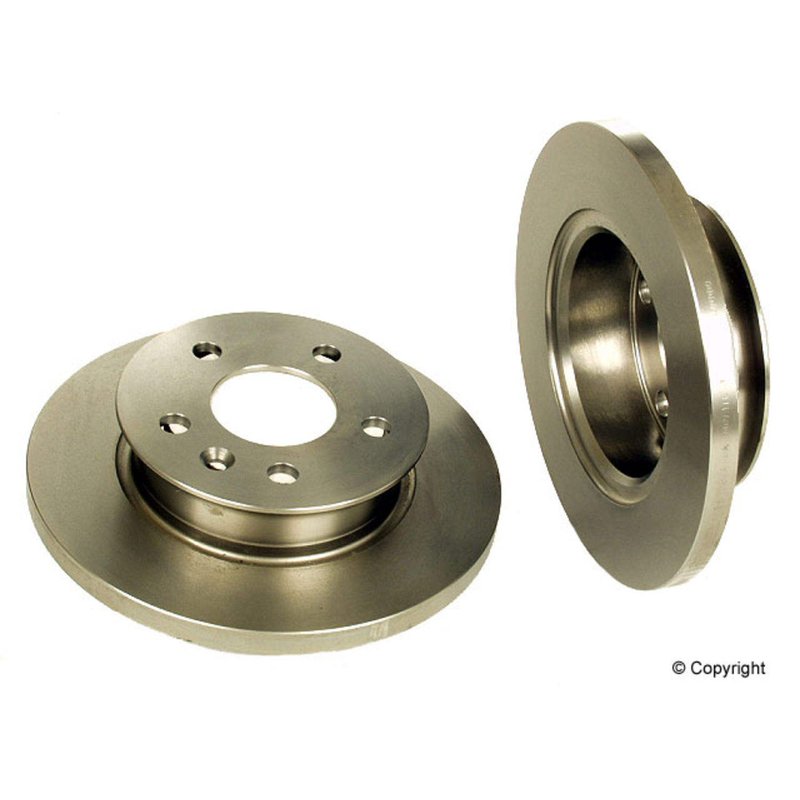

Brembo 08.5396.10 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

The Brembo 08.5396.10 is a premium OE equivalent front disc brake rotor for select Volkswagen Vanagon applications. Built as a direct replacement, it is engineered to meet or exceed OEM specifications while supporting consistent braking feel and everyday driving comfort.

Key Features

• Grey cast iron construction for stable braking performance
• UV-coated surface helps protect the disc, including braking plate surfaces
• Solid rotor design with 258 mm outside diameter
• Nominal thickness: 16 mm; minimum thickness: 13 mm
• Centering diameter: 67 mm; height: 57.5 mm
• Five-hole bolt pattern for listed Volkswagen Vanagon fitments
• Intelligent marking location shows part number and minimum thickness

Product Details

Brembo’s Premium OE Equivalent Rotor line focuses on direct-fit replacement parts that follow original equipment dimensions and performance targets. Part number 08.5396.10 uses grey cast iron and a solid rotor profile to help reduce noise and vibration while maintaining predictable pedal response. The UV-coated finish adds corrosion protection to exposed surfaces, making it a practical choice for front brake service on the Volkswagen Vanagon, including 1986-1991 Vanagon front applications and 1990-1991 Vanagon Syncro front applications.

This part cross-references Anchor 3481 and Raybestos Brakes 96344R for the same application.

Common Brake Issues It Can Address

• Brake pulsation caused by worn or below-spec rotors
• Noise and vibration from aged front brake components
• Reduced braking consistency from rotor wear
• Surface corrosion on exposed rotor areas
• Service intervals requiring rotor replacement on Volkswagen Vanagon front brakes

Installation Notes

Verify rotor dimensions, hub fitment, and minimum thickness before installation. Brembo recommends replacing rotors and pads together to restore braking performance. For best results on Volkswagen Vanagon front brake service, pair this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations.

Quality Assurance

Brembo is a trusted braking brand with OE-equivalent replacement standards. The UV-coated finish is solvent free and developed for durable surface protection, while the rotor design follows OEM-style fitment and performance requirements for the listed applications.
