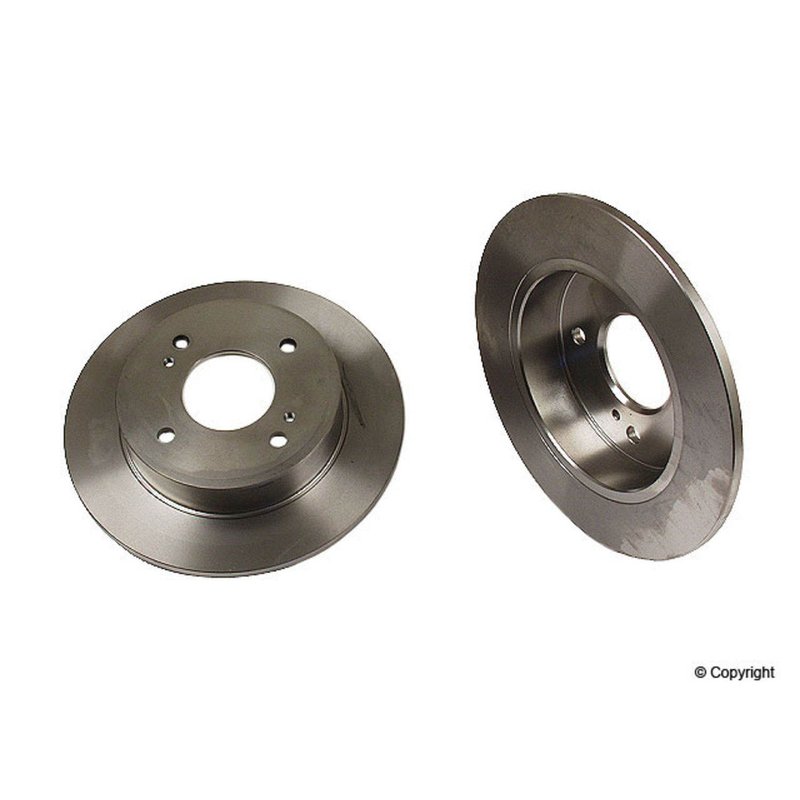

Brembo 08.5737.20 Disc Brake Rotor - Rear
| Brand | Brembo 08.5737.20 |
|---|---|
| Position | Rear |
| Centering Diameter (MM) | 68 |
| Height (MM) | 46.5 |
| Material | Grey Cast Iron |
| Minimum Thickness (MM) | 8 |
| Nominal Thickness (MM) | 9 |
| Number of Holes | 5 |
| Outside Diameter (MM) | 258 |
| Solid Or Vented Type Rotor | solid |
| Torque Spec(NM) | 108 |
| Product line | Premium OE Equivalent Rotor |
| Fits | Nissan · 4 vehicles |
OE direct replacement. Meets or exceeds OEM specifications for straightforward replacement.
UV coated surface. Helps protect braking surfaces from wear and corrosion.
Solid rotor design. Delivers consistent braking with reduced noise and vibration.
Cross-references Dorman - HELP 96491, Raybestos Brakes 96491R and 080-2639 for the same application. See all 19.
Brembo Rear Rotor for Nissan 240SX
Brembo 08.5737.20 is a UV coated rear disc brake rotor built as a direct replacement for the 1995-1998 Nissan 240SX with 5 lug wheels. It is made to meet or exceed OEM specifications and uses a solid grey cast iron design for consistent braking performance.
Key Features
- UV coated surface helps protect the rotor, including braking plate surfaces
- Grey cast iron construction for stable braking characteristics
- Solid rotor design with 258 mm outside diameter
- 68 mm centering diameter and 5-hole bolt pattern
- Nominal thickness: 9 mm; minimum thickness: 8 mm
- Intelligent marking location shows part number and minimum thickness
- Direct replacement design for rear brake service
Product Details
This Brembo Premium OE Equivalent Rotor is engineered for rear brake applications on the Nissan 240SX and is identified by part number 08.5737.20. The UV coated finish is solvent free and adds corrosion protection to the disc surfaces, while the solid grey cast iron rotor construction supports predictable pedal feel and braking consistency. Brembo also recommends replacing rotors and pads together to restore braking performance, and pairing this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations.
This part cross-references Dorman HELP 96491 and Raybestos Brakes 96491R for the same application.
What It Helps Address
- Brake pulsation caused by worn or uneven rear rotors
- Reduced braking consistency from rotor wear below minimum thickness
- Surface corrosion on exposed brake disc areas
- Noise and vibration associated with aged rear brake components
- Brake performance loss on a 1995-1998 Nissan 240SX rear brake service
Installation Notes
Compatible With 1995-1998 Nissan 240SX, rear, with 5 lug wheels. Verify rotor dimensions, wheel configuration, and torque specification of 108 Nm during installation. Replace pads at the same time to help restore braking performance and confirm the rotor is within the minimum thickness specification before service.
Quality Assurance
Brembo develops this rotor as an OE-equivalent replacement built to meet or exceed OEM specifications. The UV coated finish, cast iron construction, and part marking details support accurate service and long-term brake maintenance.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1998 | Nissan | 240SX | SE | Rear | with 5 Lug Wheels; Premium OE Equivalent Rotor |
| 1997 | Nissan | 240SX | SE | Rear | with 5 Lug Wheels; Premium OE Equivalent Rotor |
| 1996 | Nissan | 240SX | SE | Rear | with 5 Lug Wheels; Premium OE Equivalent Rotor |
| 1995 | Nissan | 240SX | SE | Rear | with 5 Lug Wheels; Premium OE Equivalent Rotor |
