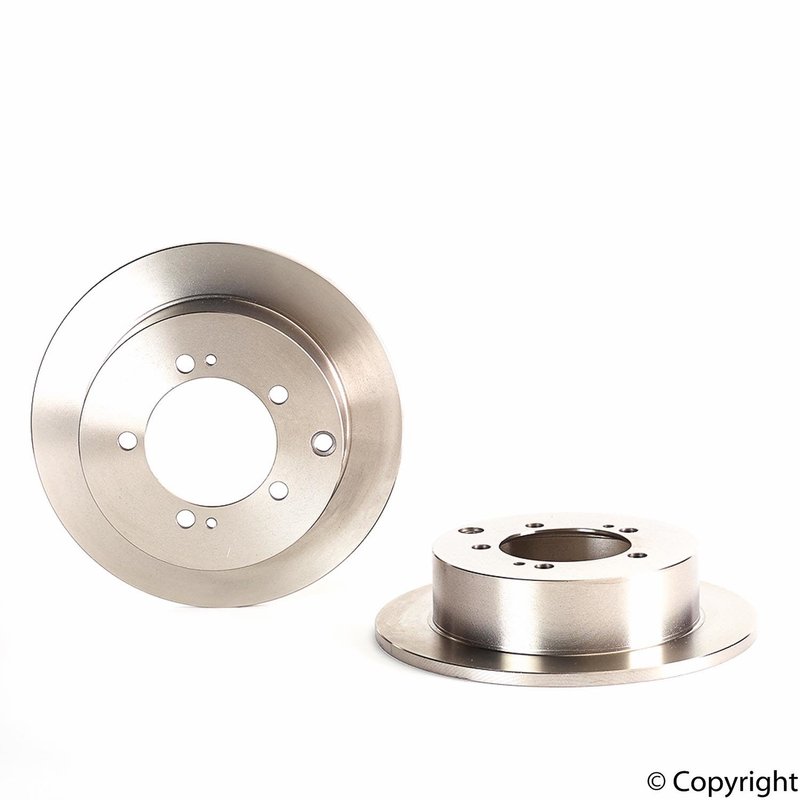

Brembo 08.8316.20 Disc Brake Rotor - Rear

Brembo Rear Brake Rotor for OE Replacement

Brembo 08.8316.20 is a rear disc brake rotor built as a direct OE-style replacement for select Dodge, Chrysler, and Mitsubishi applications. It uses a UV-coated surface for corrosion resistance and consistent braking performance, with a solid rotor design and grey cast iron construction for stable pedal feel.

The Brembo Premium OE Equivalent Rotor line focuses on restoring factory braking characteristics with attention to fit, finish, and durability. For vehicles such as the Mitsubishi Eclipse, Mitsubishi Galant, and Dodge Stratus, this rotor is engineered to match original specifications while supporting quiet operation and dependable stopping performance.

Key Features

• Part number 08.8316.20 rear disc brake rotor
• UV-coated surface helps protect braking plate surfaces from corrosion
• Grey cast iron construction
• Solid rotor design
• Outside diameter: 262 mm
• Nominal thickness: 9.5 mm; minimum thickness: 8.4 mm
• 5-lug fitment with 90 mm centering diameter
• Height: 60.3 mm
• Torque spec: 100 Nm
• Intelligent marking location shows part number and minimum thickness

Detailed Description

This Brembo Premium OE Equivalent Rotor is made for rear brake service where original braking feel and dimensional accuracy matter. The UV coating is solvent-free and applied to help protect the rotor surface, while the grey cast iron material supports consistent braking behavior. Brembo 08.8316.20 is a practical choice for drivers looking to restore braking performance on vehicles such as the Mitsubishi Eclipse rear brake rotor application, Mitsubishi Galant rear brake rotor application, and Dodge Stratus rear brake rotor application.

This part cross-references Centric Parts 120.46047 and Raybestos Brakes 76627FZN for the same application.

What It Helps Address

• Brake pulsation from worn or uneven rear rotors
• Corrosion on the rotor face and braking plate surfaces
• Noise and vibration during braking
• Reduced braking consistency from rotor wear
• Loss of factory-style pedal feel on rear brake service

Installation Notes and Tips

Verify rotor diameter, thickness, centering diameter, and 5-hole fitment before installation. Replace rotors and pads together to restore braking performance, and pair this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations when servicing the rear brakes. Confirm the torque specification of 100 Nm during installation and check the rotor’s minimum thickness marking during future brake inspections.

Quality Assurance

Brembo develops this rotor as a direct replacement that meets or exceeds OEM specifications. The UV-coated finish, dimensional markings, and OE-equivalent design support consistent service quality for rear brake maintenance on compatible Dodge, Chrysler, and Mitsubishi models.
