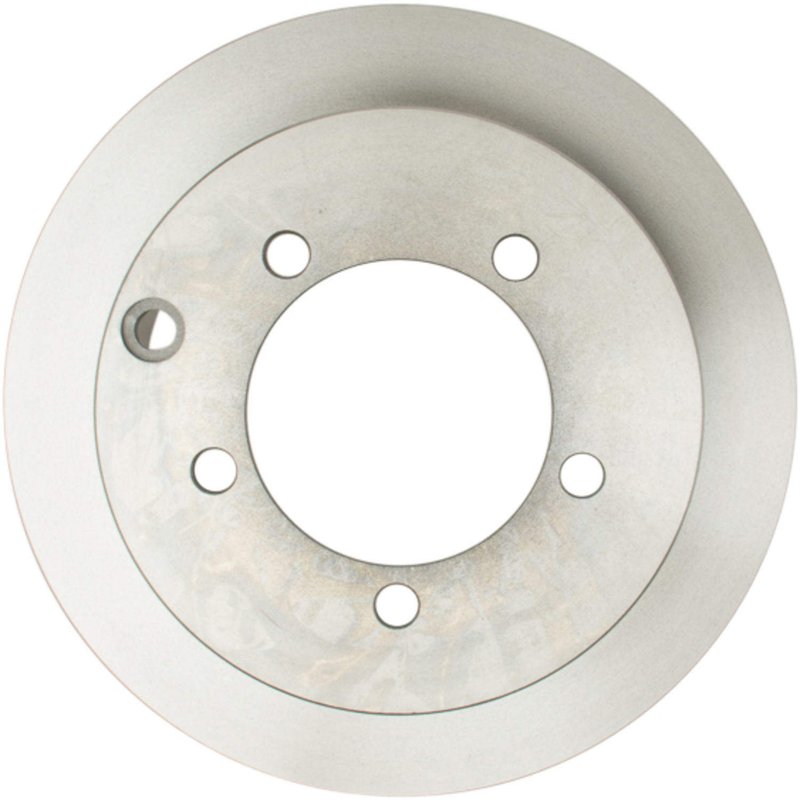

Brembo 08.8909.10 Disc Brake Rotor - Rear

Brembo Rear Rotor for Mitsubishi Diamante

The Brembo 08.8909.10 is a Premium OE Equivalent Rotor built as a direct replacement for rear brake service on the 1997-2004 Mitsubishi Diamante. It uses a UV-coated finish for added surface protection and is engineered to meet or exceed OEM specifications for consistent braking performance.

Key Features

• Direct replacement disc brake rotor for rear applications
• UV-coated surface helps protect braking plate surfaces from corrosion
• Grey cast iron construction for stable braking performance
• Solid rotor design with 258 mm outside diameter
• Nominal thickness: 10.4 mm; minimum thickness: 8.4 mm
• 5-hole bolt pattern with 57 mm height
• Intelligent marking location shows part number and minimum thickness

Product Details

Brembo’s Premium OE Equivalent Rotor line focuses on OE-style replacement parts that restore braking performance without changing the original brake system design. The 08.8909.10 rotor is made from grey cast iron and uses Brembo’s UV coating to help protect the disc surface during everyday driving and service exposure. For the Mitsubishi Diamante rear brake system, this solid rotor is sized to match the original application and support smooth, predictable braking.

This part cross-references Raybestos Brakes 96736R for the same application. The Brembo 08.8909.10 is also listed among replacement options for rear brake service on the Mitsubishi Diamante, making it a practical choice when searching for a rear brake rotor for 1997-2004 Mitsubishi Diamante models.

Common Brake Issues It Can Address

• Brake pulsation caused by worn or uneven rotor surfaces
• Reduced braking consistency from rotor wear below minimum thickness
• Noise and vibration associated with aging rear rotors
• Corrosion on exposed rotor surfaces
• Loss of braking feel during routine rear brake maintenance

Installation Notes

Compatible With 1997-2004 Mitsubishi Diamante, rear. Before installation, verify rotor thickness, hub condition, and brake pad wear. Brembo recommends replacing rotors and pads together to restore braking performance, and pairing this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations can help maintain balanced braking characteristics.

Quality Assurance

Brembo develops this rotor as a direct replacement that meets or exceeds OEM specifications. The UV-coated finish, cast iron construction, and minimum-thickness marking are intended to support accurate service decisions and dependable brake maintenance on the Mitsubishi Diamante rear brake system.
