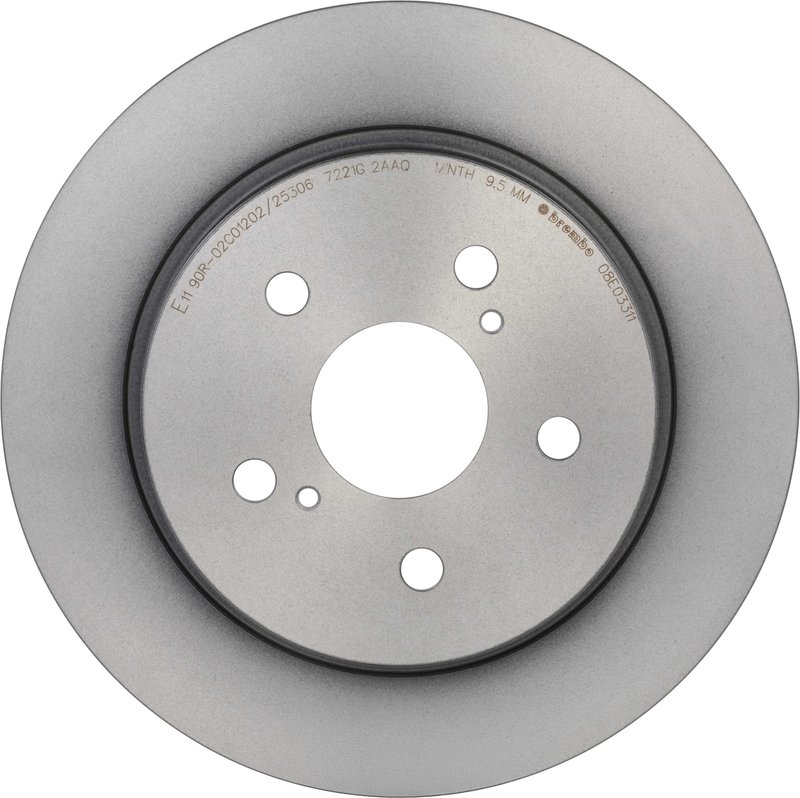

Brembo 08.E033.11 Disc Brake Rotor - Rear

Overview of Brembo PRIME Disc Brake Rotor 08.E033.11

The Brembo PRIME disc brake rotor 08.E033.11 is engineered for reliable braking performance on Toyota C-HR models. Designed with durable gray cast iron and a rust-resistant coating, this solid rotor supports consistent stopping power and longevity.

• Material: Gray cast iron for durability and heat dissipation
• Construction: Full cast solid rotor design
• Outside Diameter: 11.50 inches (292 mm)
• Nominal Thickness: 11 mm with discard thickness at 9.5 mm
• Rust Resistant Coating to reduce corrosion
• Surface Type: Smooth for consistent pad contact
• Stud/Lug Hole Quantity: 5 for secure fitment
• Overall Height: 2.01 inches (51 mm)
• Center Hole Diameter: 2.44 inches (62 mm)
• Weight: 4.7 kg

About the Brembo PRIME Product Line

The Brembo PRIME line focuses on premium-grade brake components that balance quality and value. This product line features rotors constructed with full cast gray iron and enhanced with rust-resistant coatings to extend service life. The PRIME disc brake rotor 08.E033.11 is designed to meet the braking demands of everyday driving while maintaining consistent performance on Toyota C-HR vehicles.

Detailed Product Description

This Brembo disc brake rotor 08.E033.11 is a solid rotor made from gray cast iron, providing effective heat dissipation and structural integrity. The rotor’s nominal thickness of 11 mm and discard thickness of 9.5 mm ensure it meets safety standards for replacement intervals. Its smooth surface type promotes even brake pad wear and reliable stopping power. The rust-resistant coating helps protect the rotor from corrosion, which is especially beneficial in humid or wet environments. With a 5-lug hole pattern and a center hole diameter of 62 mm, this rotor is specifically designed for the Toyota C-HR, ensuring proper fitment and installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota C-HR models
• Addresses brake pulsation caused by uneven rotor surfaces
• Helps reduce brake noise associated with rotor wear
• Prevents rust-related rotor degradation in humid climates
• Restores braking performance after rotor thickness falls below discard limits

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is within the nominal range and above the discard thickness of 9.5 mm. Use proper torque specifications for the 5-lug wheel bolts to avoid rotor warping. This rotor does not include an ABS tone ring, so confirm compatibility with your vehicle’s ABS system. Professional installation is recommended to maintain braking system integrity.

Quality Assurance and Warranty

Brembo PRIME rotors are manufactured to meet strict quality standards for material composition and dimensional accuracy. The gray cast iron construction and rust-resistant coating contribute to durability and consistent braking performance. Warranty coverage details should be confirmed with the point of purchase or Brembo directly, as they may vary by region.
