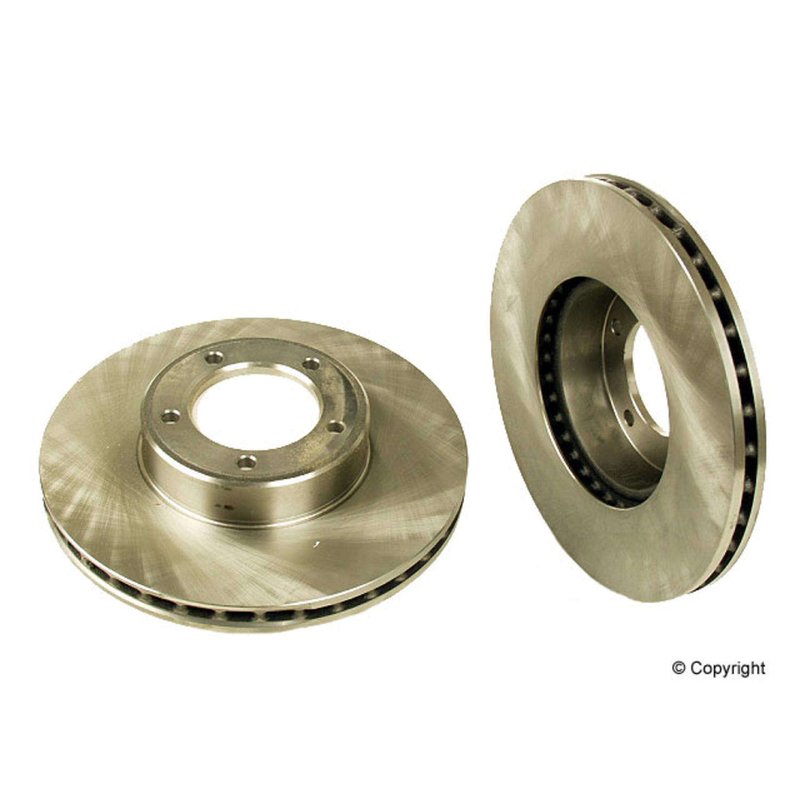

Brembo 09.3825.10 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Brembo
 Premium OE Equivalent Rotor

Brembo 09.3825.10 Disc Brake Rotor - Front

Brand Brembo 09.3825.10
Position Front
Centering Diameter (MM) 82.6
Height (MM) 60.3
Material Grey Cast Iron
Minimum Thickness (MM) 22.9
Nominal Thickness (MM) 24.2
Number of Holes 5
Outside Diameter (MM) 284
Solid Or Vented Type Rotor vented
Torque Spec(NM) 90
Product line Premium OE Equivalent Rotor
Fits Jaguar · 33 vehicles

OE equivalent rotor. Direct replacement built to meet or exceed OEM specifications.

UV coated surface. Helps protect braking surfaces with a solvent-free finish.

Vented design. Promotes airflow for more consistent braking performance.

Cross-references Anchor 3479, Dorman - HELP 25233 and Dorman - HELP 96622 for the same application. See all 33.

$94.86Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $94.86
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Brembo UV Coated Front Rotor for Jaguar

Brembo part 09.3825.10 is a premium OE equivalent front disc brake rotor built for direct replacement service on select Jaguar applications. It uses a UV-coated surface for corrosion protection and a vented grey cast iron design to support stable braking performance, lower noise, and improved pedal feel.

Key Features

  • Part number 09.3825.10
  • Premium OE equivalent rotor for front brake service
  • UV-coated braking surfaces for added protection
  • Grey cast iron construction
  • Vented rotor design
  • Outside diameter: 284 mm
  • Nominal thickness: 24.2 mm
  • Minimum thickness: 22.9 mm
  • Centering diameter: 82.6 mm
  • 5-hole bolt pattern
  • Torque spec: 90 Nm

Product Details

This Brembo rotor is engineered as a direct replacement that meets or exceeds OEM specifications for the front axle. The UV coating helps protect the disc, including the braking plate surfaces, while the grey cast iron construction supports consistent braking behavior and reduced vibration. For Jaguar XJS front brake service, Jaguar XJRS front brake service, Jaguar Vanden Plas front brake service, and Jaguar XJ6 front brake service, Brembo 09.3825.10 provides the dimensions and construction needed for a proper OE-style rotor replacement. This part cross-references Raybestos Brakes 980784 for the same application.

What It Helps Address

  • Brake pulsation from worn or warped front rotors
  • Noise and vibration during braking
  • Corrosion on exposed rotor surfaces
  • Reduced braking consistency from rotor wear
  • Front brake service needs on older Jaguar platforms

Installation Notes

Fits 1984-1996 Jaguar XJS, front. Fits 1993 Jaguar XJRS, front. Fits 1984-1987 Jaguar Vanden Plas, front. Fits 1984-1987 Jaguar XJ6, front. Verify rotor dimensions, hub fitment, and minimum thickness before installation. Brembo recommends replacing rotors and pads together to restore braking performance, and pairing this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations.

Quality Assurance

Brembo develops this Premium OE Equivalent Rotor as a direct replacement built to OE-level specifications. Intelligent marking on the rotor identifies the part number and minimum thickness for service reference.

Related reading

This part fits 33 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
1996JaguarXJS2+2——FrontPremium OE Equivalent Rotor
1995JaguarXJSBase6.0LV12FrontPremium OE Equivalent Rotor
1995JaguarXJS2+26.0LV12FrontPremium OE Equivalent Rotor
1995JaguarXJSBase4.0LL6FrontPremium OE Equivalent Rotor
1995JaguarXJS2+24.0LL6FrontPremium OE Equivalent Rotor
1994JaguarXJSBase6.0LV12FrontPremium OE Equivalent Rotor
1994JaguarXJS2+26.0LV12FrontPremium OE Equivalent Rotor
1994JaguarXJSBase4.0LL6FrontPremium OE Equivalent Rotor
1994JaguarXJS2+24.0LL6FrontPremium OE Equivalent Rotor
1993JaguarXJRSBase——FrontPremium OE Equivalent Rotor
1993JaguarXJSBase——FrontPremium OE Equivalent Rotor
1992JaguarXJSBase5.3LV12FrontPremium OE Equivalent Rotor
1991JaguarXJSClassic Collection——FrontPremium OE Equivalent Rotor
1990JaguarXJSCollection Rouge——FrontPremium OE Equivalent Rotor
1990JaguarXJSClassic Collection——FrontPremium OE Equivalent Rotor
1990JaguarXJSBase——FrontPremium OE Equivalent Rotor
1989JaguarXJSCollection Rouge——FrontPremium OE Equivalent Rotor
1989JaguarXJSBase——FrontPremium OE Equivalent Rotor
1988JaguarXJSC——FrontPremium OE Equivalent Rotor
1988JaguarXJSBase——FrontPremium OE Equivalent Rotor
1987JaguarVanden PlasBase——FrontPremium OE Equivalent Rotor
1987JaguarXJ6Base——FrontPremium OE Equivalent Rotor
1987JaguarXJSC——FrontPremium OE Equivalent Rotor
1987JaguarXJSBase——FrontPremium OE Equivalent Rotor
1986JaguarVanden PlasBase——FrontPremium OE Equivalent Rotor
1986JaguarXJ6Base——FrontPremium OE Equivalent Rotor
1986JaguarXJSBase——FrontPremium OE Equivalent Rotor
1985JaguarVanden PlasBase——FrontPremium OE Equivalent Rotor
1985JaguarXJ6Base——FrontPremium OE Equivalent Rotor
1985JaguarXJSBase——FrontPremium OE Equivalent Rotor
1984JaguarVanden PlasBase——FrontPremium OE Equivalent Rotor
1984JaguarXJ6Base——FrontPremium OE Equivalent Rotor
1984JaguarXJSBase——FrontPremium OE Equivalent Rotor
Directly replaces or cross-references 33 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 3479Dorman - HELP — 25233Dorman - HELP — 96622Gates — 31554Hella Pagid — 355122152Raybestos Brakes — 980784083-1487094 1105290.2251.000986UB1693442122092031600290225100098647868624012401741BD125075BD125075EBR3479BS7842C32764C32764EC41924C41942CAC2647CW24174DDF164DF1872JLM 000776JLM727JLM729JLM776NB 48880784PFR 248880784
