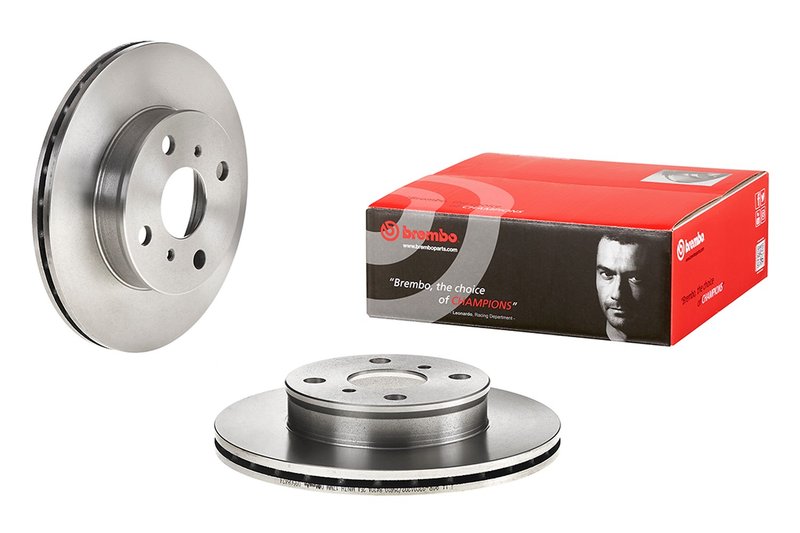

Brembo 09.5084.24 Disc Brake Rotor - Front

Premium OE Equivalent Rotor

Brembo UV Coated disc brake rotor, part number 09.5084.24, is a direct replacement built to meet or exceed OEM specifications. It is engineered for front brake applications on select Toyota Corolla and Geo Prizm models, with vented construction and a grey cast iron body for consistent braking performance.

• UV-coated surface helps protect the disc, including the braking plate surfaces.
• Grey cast iron construction supports stable braking feel and reduced noise.
• Vented rotor design promotes heat management during repeated stops.
• Part number 09.5084.24 is marked for easy identification and minimum thickness reference.

Fitment and application details

Fits 1989-1992 Geo Prizm, front. Fits 1988-1992 Toyota Corolla, front. This part cross-references Centric Parts (e.g., 120.44052, 121.44052) for the same application.

For Toyota Corolla and Geo Prizm brake service, this rotor is sized with a 238 mm outside diameter, 18 mm nominal thickness, and 17 mm minimum thickness. The 4-hole pattern, 54 mm centering diameter, and 48.2 mm height support correct rotor placement for the listed applications. Brembo 09.5084.24 is intended for use with matching brake pads so the braking system can be restored as a complete service.

What this rotor helps address

• Brake pulsation from worn or uneven rotor surfaces
• Noise and vibration during braking
• Reduced stopping consistency from heat-worn rotors
• Rotor replacement needs when minimum thickness is reached

Installation notes and quality assurance

Replace rotors and pads together to restore braking performance. Clean the hub mounting surface before installation, and torque the wheel fasteners to the vehicle specification. The included fixing screw kit is referenced by the manufacturer for installation support. Brembo identifies this as a premium OE equivalent rotor developed to meet OEM-level requirements, and the UV coating is designed to provide added protection during service.
