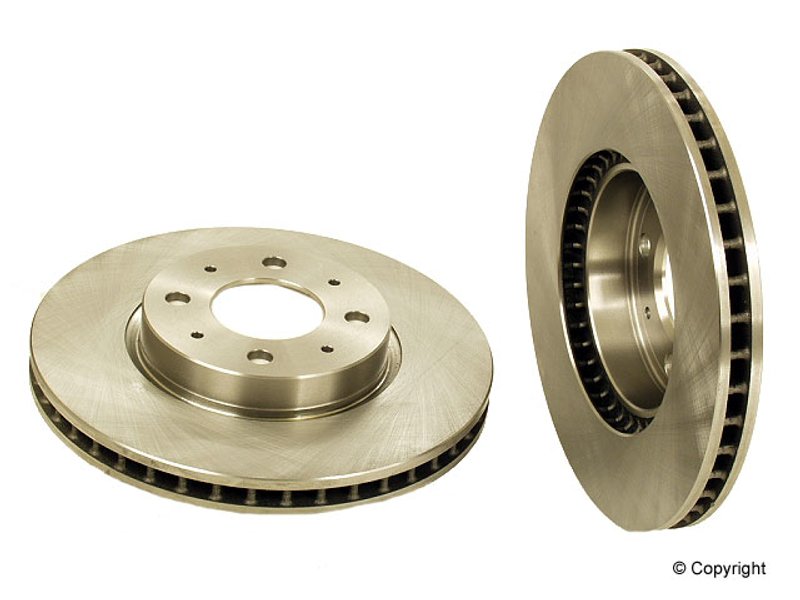

Brembo 09.5568.10 Disc Brake Rotor - Front

Overview of Brembo Premium OE Equivalent Rotor 09.5568.10

The Brembo Premium OE Equivalent Rotor 09.5568.10 is engineered for reliable braking performance on select Volvo models. Designed as a vented disc brake rotor, it offers consistent heat dissipation and durability for vehicles such as the Volvo 850, C70, S70, S90, V70, and V90.

• Material: Grey cast iron for strength and heat resistance
• Vented rotor design for improved cooling
• Outside diameter: 280 mm
• Centering diameter: 68 mm
• Height: 50.3 mm
• Nominal thickness: 26 mm with minimum thickness of 23 mm
• Includes fixing screws for installation
• Four mounting holes
• Torque specification: 110 Nm

Detailed Product Description

This Brembo disc brake rotor is crafted from grey cast iron, a material known for its durability and effective heat dissipation under braking conditions. The vented design helps reduce brake fade by allowing air to circulate between the rotor surfaces, which is essential for maintaining consistent braking performance during extended use. With an outside diameter of 280 mm and a centering diameter of 68 mm, this rotor is specifically designed to fit a range of Volvo vehicles including the 850, C70, S70, S90, V70, and V90 models. The rotor thickness is nominally 26 mm, with a minimum thickness of 23 mm to ensure safe operation and longevity. The included fixing screws and four-hole mounting pattern simplify installation and ensure a secure fit. Torque specifications are set at 110 Nm to meet manufacturer standards.

About the Premium OE Equivalent Rotor Line

The Brembo Premium OE Equivalent Rotor line is designed to meet or exceed original equipment specifications, providing a direct replacement option for Volvo vehicles. This product line focuses on delivering consistent performance and fitment that aligns with factory standards, making it suitable for drivers seeking reliable braking components without modification. The 09.5568.10 rotor exemplifies this approach by combining OE-level materials and design features tailored for Volvo models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing reduced braking efficiency due to rotor thinning
• Resolving noise issues related to uneven rotor surfaces
• Improving heat dissipation to prevent brake fade during heavy use
• Ensuring proper fitment and alignment on Volvo 850, C70, S70, S90, V70, and V90

Installation Notes and Tips

• Verify rotor thickness before installation; do not install below minimum thickness of 23 mm
• Use the included fixing screws and torque to 110 Nm for secure mounting
• Ensure the rotor is properly centered on the hub using the 68 mm centering diameter
• Inspect brake pads and hardware during rotor replacement for optimal performance
• Follow vehicle manufacturer guidelines for brake system maintenance

Quality Assurance and Warranty

Brembo rotors are manufactured to meet stringent quality standards, ensuring durability and consistent braking performance. The Premium OE Equivalent Rotor line is engineered to match original equipment specifications for fit and function. Warranty coverage details should be confirmed with the point of purchase or Brembo directly, as warranty terms may vary by region and application.
