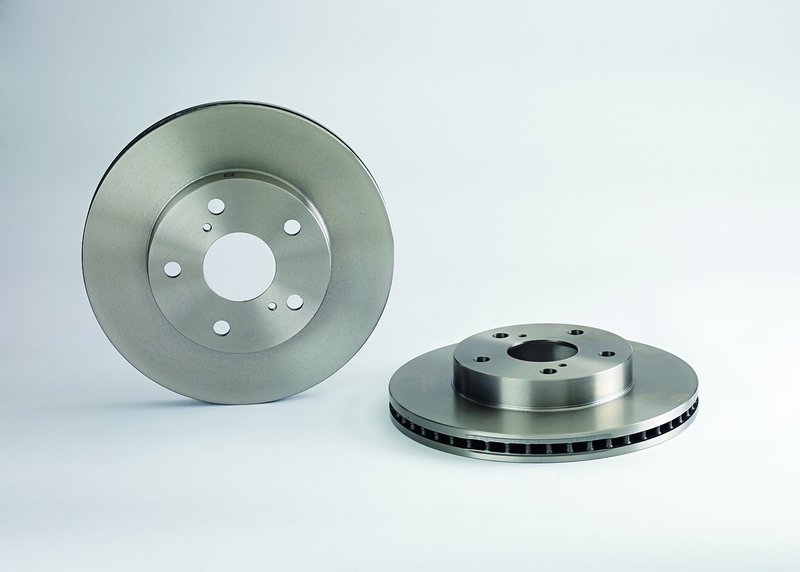

Brembo 09.5916.10 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor for Toyota Previa

Brembo 09.5916.10 is a premium OE equivalent front disc brake rotor for 1991-1996 Toyota Previa applications. It uses a UV-coated finish for corrosion protection on the disc and braking surfaces, with a vented grey cast iron design that supports stable braking performance and everyday driving comfort.

Key Features

• Direct replacement rotor built to meet or exceed OEM specifications
• UV-coated surface helps protect the rotor from corrosion
• Grey cast iron construction for consistent braking performance
• Vented rotor design for improved heat management
• Minimum thickness marking and part number identification on the rotor
• Centering diameter: 62 mm
• Outside diameter: 271 mm
• Nominal thickness: 25 mm; minimum thickness: 23 mm
• 5-lug fitment with 103 Nm torque specification

Product Details

The Brembo Premium OE Equivalent Rotor line is built for drivers who want a factory-style brake rotor replacement with attention to fit, finish, and serviceability. Part number 09.5916.10 is engineered for the front axle on the Toyota Previa and uses a vented grey cast iron rotor profile to help maintain braking consistency under normal road use. Brembo’s UV-coated finish adds protection to exposed surfaces, while the rotor’s marked minimum thickness location supports inspection during brake service. This rotor is commonly selected when replacing worn front brake rotors on a 1991-1996 Toyota Previa and when restoring pedal feel and braking balance with a matching pad set. This part cross-references Centric Parts 121.44070 for the same application.

What It Helps Address

• Brake pulsation caused by rotor wear or thickness variation
• Corrosion on the rotor hat and braking surfaces
• Reduced braking smoothness from heat-related rotor wear
• Noise and vibration associated with worn front rotors
• Uneven braking performance during routine stop-and-go driving

Installation Notes and Tips

Compatible With 1991-1996 Toyota Previa, front. Verify rotor dimensions, hub fitment, and torque specification before installation. Brembo recommends replacing rotors and pads together to restore braking performance, and pairing this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations. Clean the hub mounting surface before installation and confirm the rotor reaches the correct minimum thickness during service inspections. Part number 09.5916.10 should be matched to the vehicle’s front brake application only.

Quality Assurance

Brembo develops this UV-coated rotor as an OE-style replacement that meets or exceeds OEM specifications. The coating process is solvent-free, and the rotor design includes service markings for thickness inspection and identification. Brembo is a trusted braking brand with a long history in OE and aftermarket brake components.
