Brembo 09.5934.11 Disc Brake Rotor - Front Left
OE Quality 60-Day Returns
Brembo
 Premium UV Coated OE Equivalent Rotor

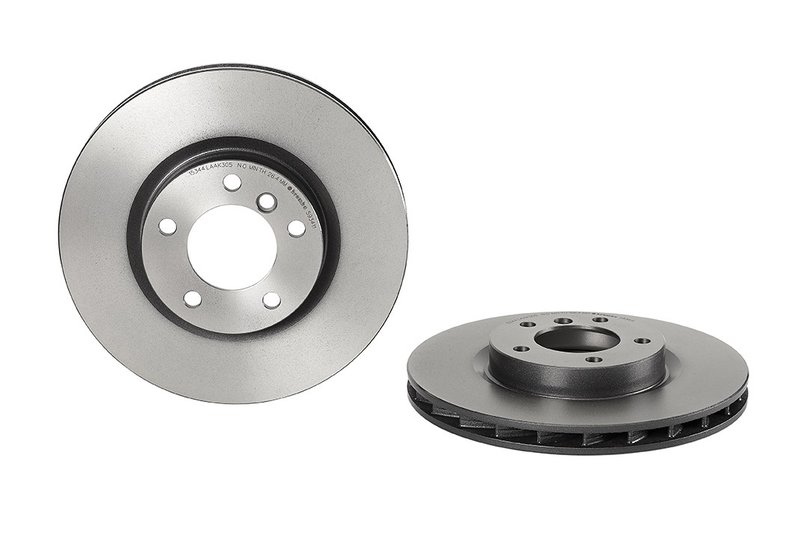

Brembo 09.5934.11 Disc Brake Rotor - Front Left

Brand Brembo 09.5934.11
Position Front Left
Centering Diameter (MM) 79
Fixing Screws included
Height (MM) 52.5
Material Grey Cast Iron
Minimum Thickness (MM) 26.4
Nominal Thickness (MM) 28
Number of Holes 5
Outside Diameter (MM) 315
Rust Resistant Coating UV Coated
Solid Or Vented Type Rotor vented
Torque Spec(NM) 120
Product line Premium UV Coated OE Equivalent Rotor
Fits BMW · 16 vehicles

OE equivalent rotor. Direct replacement meets or exceeds OEM specifications.

UV coated finish. Helps protect braking surfaces with solvent-free coverage.

Fixing screws included. Hardware is provided for simple, worry-free installation.

Cross-references Centric Parts 121.34038, Centric Parts 125.34038 and Dorman - HELP 96524 for the same application. See all 26.

$114.01Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $114.01
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Brembo UV Coated Front Left Rotor

The Brembo 09.5934.11 is a premium UV coated OE equivalent disc brake rotor for the front left position. It is built for BMW Z3 and BMW M3 applications that call for a vented, grey cast iron rotor with corrosion protection and OE-style fitment.

Key Features

  • Direct replacement disc brake rotor for front left applications
  • UV coated surface helps protect the braking plate and exposed rotor areas
  • Grey cast iron construction for stable braking performance
  • Vented rotor design for heat management
  • High carbon cast iron used where applicable to reduce noise and vibration
  • Includes fixing screw kit with necessary hardware
  • Intelligent marking location shows part number and minimum thickness
  • Part number: 09.5934.11

Product Details

Brembo’s Premium UV Coated OE Equivalent Rotor line is made for drivers who want a replacement rotor that follows OEM specifications while adding corrosion resistance through a solvent-free UV coating. This rotor measures 315 mm outside diameter, 52.5 mm height, 28 mm nominal thickness, and 26.4 mm minimum thickness, with a 79 mm centering diameter, 5 holes, and a 120 Nm torque spec. For BMW Z3 front left brake service and BMW M3 front left brake repair, 09.5934.11 provides the dimensions and construction needed for a proper OE-style replacement.

This part cross-references Centric Parts 121.34038 and Dorman - HELP 96524 for the same application.

Common Problems This Rotor Addresses

  • Brake pulsation from worn or uneven rotor surfaces
  • Noise and vibration during braking
  • Corrosion on exposed rotor surfaces
  • Reduced braking consistency from rotor wear
  • Service needs on BMW Z3 and BMW M3 front left brake systems

Installation Notes

Replace rotors and pads together to restore braking performance. Pair this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations for a matched braking setup. Verify rotor dimensions, wheel hub fitment, and torque specifications before installation. Confirm application details for 1994-1999 BMW M3 front left and 1998-2002 BMW Z3 front left before service.

Quality Assurance

Brembo develops this rotor as an OE-equivalent replacement that meets or exceeds OEM specifications. The UV coated finish is environmentally friendly and intended to provide durable surface protection for everyday braking service.

Related reading

This part fits 16 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
2002BMWZ3M RoadsterFront LeftPremium UV Coated OE Equivalent Rotor
2002BMWZ3M CoupeFront LeftPremium UV Coated OE Equivalent Rotor
2001BMWZ3M RoadsterFront LeftPremium UV Coated OE Equivalent Rotor
2001BMWZ3M CoupeFront LeftPremium UV Coated OE Equivalent Rotor
2000BMWZ3M RoadsterFront LeftPremium UV Coated OE Equivalent Rotor
2000BMWZ3M CoupeFront LeftPremium UV Coated OE Equivalent Rotor
1999BMWM3BaseFront LeftPremium UV Coated OE Equivalent Rotor
1999BMWZ3M RoadsterFront LeftPremium UV Coated OE Equivalent Rotor
1999BMWZ3M CoupeFront LeftPremium UV Coated OE Equivalent Rotor
1998BMWM3BaseFront LeftPremium UV Coated OE Equivalent Rotor
1998BMWZ3M RoadsterFront LeftPremium UV Coated OE Equivalent Rotor
1997BMWM3BaseFront LeftPremium UV Coated OE Equivalent Rotor
1996BMWM3BaseFront LeftPremium UV Coated OE Equivalent Rotor
1995BMWM3LightweightFront LeftPremium UV Coated OE Equivalent Rotor
1995BMWM3BaseFront LeftPremium UV Coated OE Equivalent Rotor
1994BMWM3BaseFront LeftPremium UV Coated OE Equivalent Rotor
Directly replaces or cross-references 26 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 121.34038Centric Parts — 125.34038Dorman - HELP — 96524Hella Pagid — 355104092National — 450446Standard Ignition — 2541909.5934.1034 11 2 227 17134 11 2 227 737083-2654120.34038150.1290.203408596524FZN442001192071100150129020098647874824012801981BD125792BD125792EBS8174DDF804CDF2731SNB 4886524PFR 24886524
