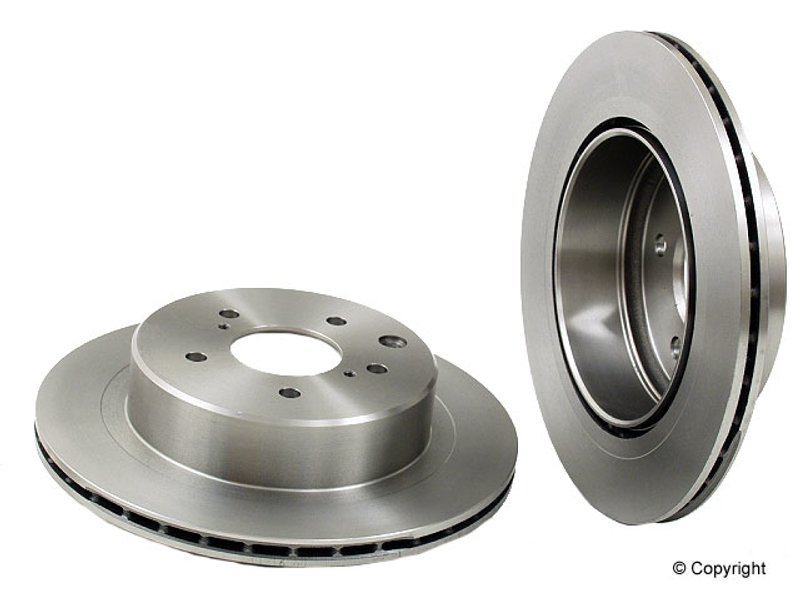

Brembo 09.6912.10 Disc Brake Rotor - Rear

Brembo Rear Brake Rotor for Nissan 300ZX

The Brembo 09.6912.10 is a premium OE equivalent rear disc brake rotor for the Nissan 300ZX. It is built as a direct replacement rotor with UV-coated protection and vented construction for consistent braking performance on the rear axle.

Key Features

• Fits 1990-1996 Nissan 300ZX, rear
• UV-coated surface helps protect the rotor, including the braking plate surfaces
• Grey cast iron construction for stable braking characteristics
• Vented rotor design
• Outside diameter: 296 mm
• Nominal thickness: 18 mm; minimum thickness: 16 mm
• Centering diameter: 68 mm
• 5-hole bolt pattern
• Torque spec: 108 Nm
• Part number: 09.6912.10

Product Details

Brembo’s Premium OE Equivalent Rotor line is made for drivers who want a direct-fit replacement that follows OEM specifications. This rotor uses a solvent-free UV coating for added surface protection, while the grey cast iron material supports predictable braking feel. The vented design helps manage heat during repeated stops, and the intelligent marking location identifies the part number and minimum thickness for service reference. For brake system restoration, Brembo recommends replacing rotors and pads together. This part cross-references Centric Parts (e.g., 121.42047, 125.42047) for the same application.

Common Issues This Rotor Can Address

• Brake pulsation from a worn or uneven rear rotor
• Noise caused by rotor wear or surface degradation
• Reduced braking consistency from heat-affected rotor surfaces
• Service replacement for a rotor at or near minimum thickness
• Rear brake refresh on a Nissan 300ZX with OE-style dimensions

Installation Notes and Tips

Verify rotor dimensions, hub fitment, and rear axle application before installation. Clean the hub mounting surface thoroughly to help prevent runout-related vibration. Brembo recommends pairing the rotor with matching brake pads, and the rotor should be checked against the minimum thickness marking during service. Fits 1990-1996 Nissan 300ZX, rear; 1990 Nissan 300ZX, rear from 07/1989.

Quality Assurance

Brembo is a trusted braking brand known for OE-style replacement components. Part number 09.6912.10 is engineered as a direct replacement rotor that meets or exceeds OEM specifications for the listed Nissan 300ZX rear applications.
