Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

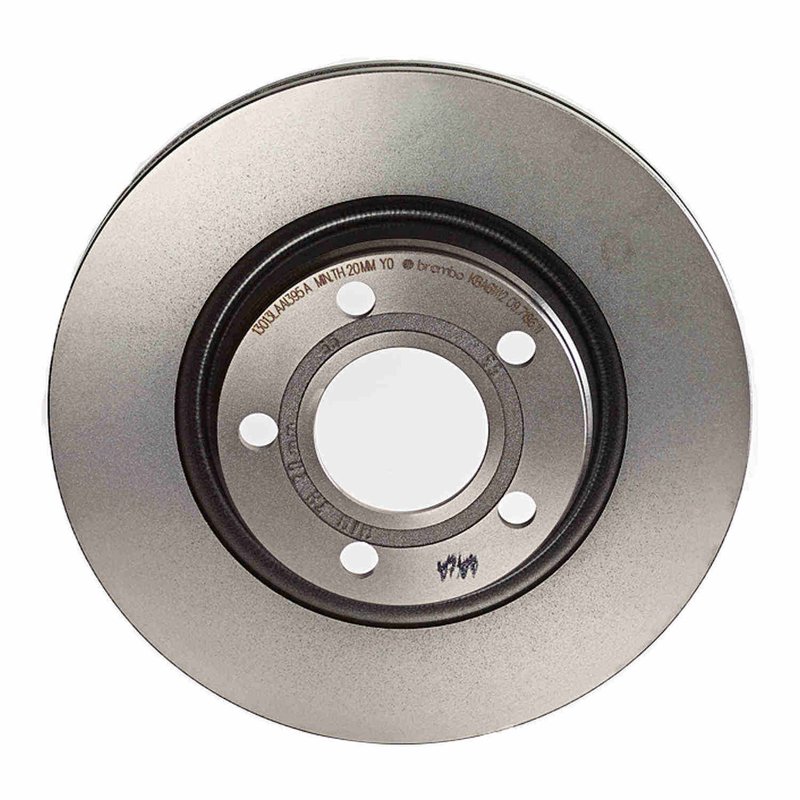

Brembo 09.7196.11 Disc Brake Rotor - Rear
| Brand | Brembo 09.7196.11 |
|---|---|
| Position | Rear |
| Centering Diameter (MM) | 68 |
| Height (MM) | 46.2 |
| Material | High Carbon |
| Minimum Thickness (MM) | 20 |
| Nominal Thickness (MM) | 22 |
| Number of Holes | 5 |
| Outside Diameter (MM) | 280 |
| Rust Resistant Coating | UV Coated |
| Solid Or Vented Type Rotor | vented |
| Torque Spec(NM) | 120 |
| Product line | Premium UV Coated OE Equivalent Rotor |
| Fits | Audi · 11 vehicles |
OE equivalent rotor. Direct replacement meets or exceeds OEM specifications.
UV coated finish. Helps protect braking surfaces from corrosion.
High carbon cast iron. Reduces noise and vibration for smoother braking.
Cross-references Beck/Arnley 083-2992, Gates 25484 and Raybestos Brakes 980278R for the same application. See all 26.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Brembo Rear Brake Rotor for Audi A8 Quattro and S8
Brembo 09.7196.11 is a premium UV coated OE equivalent disc brake rotor built for rear brake service on select Audi applications. It uses high carbon cast iron where applicable, a vented design, and a solvent-free coating to help protect the rotor surface and braking plate areas.
Key Features
- Direct replacement disc brake rotor for rear axle applications
- UV coated surface for rust resistance and added protection
- High carbon material for reduced noise and vibration where applicable
- Vented rotor design with 280 mm outside diameter
- 5-hole bolt pattern, 68 mm centering diameter, and 46.2 mm height
- Minimum thickness marking is shown on the rotor for service reference
- Part number 09.7196.11 is marked for identification
Product Details
This Brembo Premium UV Coated OE Equivalent Rotor is engineered as a direct replacement for rear brake service on 2000-2003 Audi A8 Quattro and 2001-2003 Audi S8 models. The UV coated finish helps protect exposed surfaces from corrosion, while the high carbon construction supports stable braking performance and improved driving comfort. For restoring braking performance, Brembo recommends replacing rotors and pads together, and pairing this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations.
This part cross-references Beck/Arnley 083-2992 and Zimmermann 600.3207.20 for the same application.
What It Helps Address
- Brake pulsation from worn or uneven rear rotors
- Noise and vibration during braking
- Corrosion on exposed rotor surfaces
- Reduced braking consistency from rotor wear
- Service replacement for rear brake rotor maintenance
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and minimum thickness before installation. Clean the hub mounting surface thoroughly to help prevent runout-related issues. Replace brake pads at the same time to restore braking balance and performance. Torque wheel fasteners to the vehicle specification after installation.
Quality Assurance
Brembo develops this rotor as an OE-equivalent replacement that meets or exceeds OEM specifications. The UV coating is solvent free, and the rotor includes intelligent marking for part number and minimum thickness identification.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2003 | Audi | A8 Quattro | L | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
| 2003 | Audi | A8 Quattro | Base | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
| 2003 | Audi | S8 | Base | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
| 2002 | Audi | A8 Quattro | L | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
| 2002 | Audi | A8 Quattro | Base | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
| 2002 | Audi | S8 | Base | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
| 2001 | Audi | A8 Quattro | L | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
| 2001 | Audi | A8 Quattro | Base | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
| 2001 | Audi | S8 | Base | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
| 2000 | Audi | A8 Quattro | L | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
| 2000 | Audi | A8 Quattro | Base | Rear | Disc Brake Rotor: 280mm Diameter; Premium UV Coated OE Equivalent Rotor |
