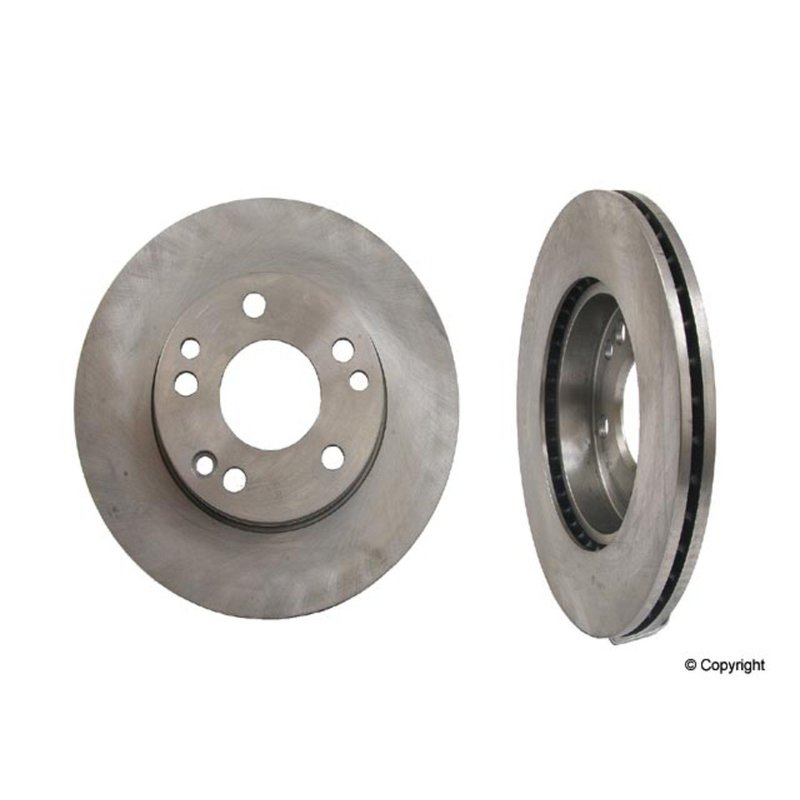

Brembo 09.7291.20 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

The Brembo 09.7291.20 is a premium OE equivalent disc brake rotor for the front axle. It is built for 1987-1993 Mercedes-Benz 190E applications and uses a UV-coated surface to help protect the braking plate and exposed areas from corrosion.

As part of Brembo’s Premium OE Equivalent Rotor line, this rotor focuses on direct replacement fit, consistent braking feel, and clean serviceability for Mercedes-Benz 190E front brake repair.

Key Features

• Direct replacement disc brake rotor for front applications
• UV-coated surface for added protection on disc surfaces and braking plate areas
• Grey cast iron construction
• Vented rotor design for heat management
• High carbon cast iron used where applicable to reduce noise and vibration
• Fixing screws included for installation
• Intelligent marking location shows part number and minimum thickness
• Outside diameter: 262 mm; nominal thickness: 22 mm; minimum thickness: 19.4 mm
• 5-hole rotor with 67 mm centering diameter and 44.5 mm height

Detailed Description

Brembo part number 09.7291.20 is engineered as an OE-style replacement rotor for the Mercedes-Benz 190E front brake system. The vented grey cast iron design supports stable braking performance, while the UV coating helps protect the rotor during storage and service. Where applicable, Brembo’s high carbon cast iron formulation is used to help control noise and vibration and improve driving comfort.

This rotor is a practical choice for drivers servicing a 1987-1993 Mercedes-Benz 190E, front brake rotor replacement, or a Mercedes-Benz 190E front disc brake repair that calls for OE-equivalent dimensions and fit. Brembo 09.7291.20 also cross-references Bosch 96305 for the same application.

What It Helps Address

• Brake pulsation from worn or uneven front rotors
• Corrosion on exposed rotor surfaces
• Noise and vibration during braking
• Reduced braking consistency from rotor wear
• Service issues caused by rotors below minimum thickness

Installation Notes and Tips

Verify rotor dimensions, hub fitment, and wheel bolt pattern before installation. The rotor is marked with the part number and minimum thickness location for service checks. For best braking performance, replace rotors and pads together and pair this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations.

Compatible With 1987-1993 Mercedes-Benz 190E, front. Use the listed torque specification of 120 Nm during installation where applicable.

Quality Assurance

Brembo is a trusted braking brand with OE-equivalent product development standards. This Premium OE Equivalent Rotor is built to meet or exceed OEM specifications for the listed application and to support consistent service results on Mercedes-Benz 190E front brake repairs.
