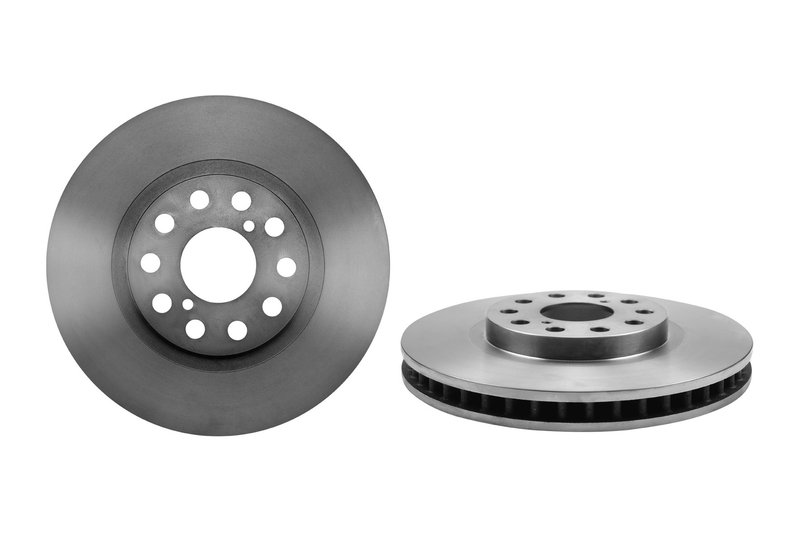

Brembo 09.7931.20 Disc Brake Rotor - Front
| Brand | Brembo 09.7931.20 |
|---|---|
| Position | Front |
| Height (MM) | 51 |
| Material | Grey Cast Iron |
| Minimum Thickness (MM) | 30 |
| Nominal Thickness (MM) | 32 |
| Number of Holes | 10 |
| Outside Diameter (MM) | 296 |
| Solid Or Vented Type Rotor | vented |
| Product line | Premium OE Equivalent Rotor |
| Fits | Toyota · 6 vehicles |
OE direct replacement. Meets or exceeds OEM specifications for straightforward replacement.
UV coated. Protects braking surfaces with a solvent-free finish.
Vented design. Helps reduce noise and vibration for smoother braking.
Cross-references Dorman - HELP 96469, 080-2590 and 31178 for the same application. See all 14.
Brembo UV Coated Front Rotor for Supra
The Brembo 09.7931.20 is a premium OE equivalent front disc brake rotor for the 1993-1998 Toyota Supra. It is built as a direct replacement rotor with UV-coated protection and vented construction for consistent braking performance.
Key Features
- UV-coated surface helps protect the disc, including the braking plate surfaces
- Grey cast iron construction for stable braking characteristics
- Vented rotor design for improved heat management
- Outside diameter: 296 mm
- Nominal thickness: 32 mm; minimum thickness: 30 mm
- Height: 51 mm
- 10-hole bolt pattern
- Intelligent marking location shows the part number and minimum thickness
Product Details
Brembo’s Premium OE Equivalent Rotor line is developed as a direct replacement for factory-style braking systems. This Brembo 09.7931.20 rotor is engineered for the front position on the Toyota Supra and uses a solvent-free UV coating to help resist corrosion on exposed surfaces. Where applicable, the high carbon cast iron design helps reduce noise and vibration while supporting smooth, controlled braking. For restoring braking performance, Brembo recommends replacing rotors and pads together. Pair this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations for a matched brake service.
This part cross-references Dorman - HELP 96469 for the same application.
What It Helps Address
- Brake pulsation from worn or uneven rotor surfaces
- Reduced stopping consistency from rotor wear
- Corrosion on exposed rotor surfaces
- Noise and vibration during braking
- Loss of braking performance on front axle service
Installation Notes
Fits 1993-1998 Toyota Supra, front. Verify rotor dimensions, bolt pattern, and minimum thickness before installation. Replace brake pads at the same time to restore braking performance and help ensure even bedding. Confirm the rotor is installed on the correct front position and inspect related brake components for wear during service.
Quality Assurance
Brembo is a trusted braking brand with OE-equivalent replacement parts designed to meet or exceed OEM specifications. The UV-coated finish and cast iron construction are selected to support durability, corrosion resistance, and consistent braking feel in normal service.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1998 | Toyota | Supra | Base | Front | Premium OE Equivalent Rotor |
| 1997 | Toyota | Supra | Base | Front | Premium OE Equivalent Rotor |
| 1996 | Toyota | Supra | Base | Front | Premium OE Equivalent Rotor |
| 1995 | Toyota | Supra | Base | Front | Premium OE Equivalent Rotor |
| 1994 | Toyota | Supra | Base | Front | Premium OE Equivalent Rotor |
| 1993 | Toyota | Supra | Base | Front | Premium OE Equivalent Rotor |
