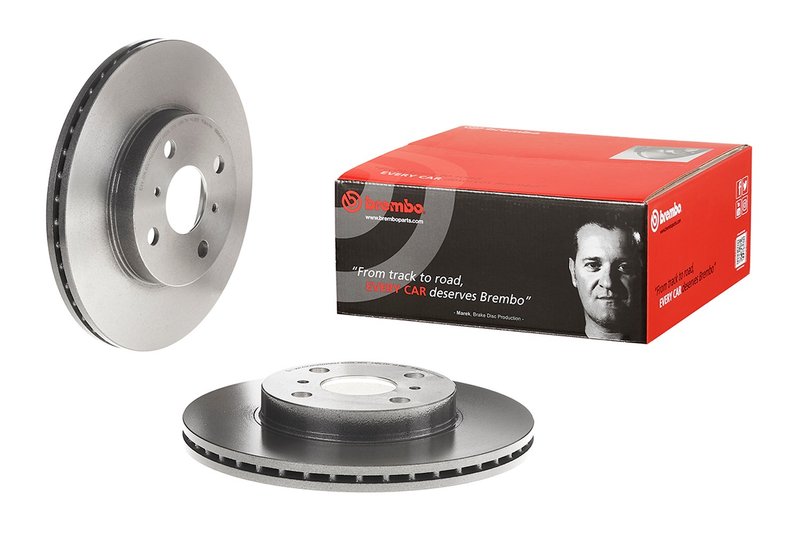

Brembo 09.8545.11 Disc Brake Rotor - Front

Overview

Brembo 09.8545.11 is a UV coated disc brake rotor built as a direct replacement for select Toyota applications. It combines grey cast iron construction with a vented design to support stable braking performance, reduced noise, and improved driving comfort.

This Premium UV Coated OE Equivalent Rotor is engineered for drivers who want a replacement rotor that aligns with OEM specifications while adding corrosion protection to the braking plate surfaces. Fits 2001-2005 Toyota Echo, front and 2000-2005 Toyota MR2 Spyder, front.

Key Features

• UV coated surface helps protect the rotor from corrosion.
• Grey cast iron construction supports consistent braking performance.
• Vented rotor design helps manage heat during braking.
• Direct replacement format meets or exceeds OEM specifications.
• Intelligent marking location shows the part number and minimum thickness.

Detailed Description

Brembo 09.8545.11 is a front disc brake rotor for the Toyota Echo and Toyota MR2 Spyder applications listed above. The rotor uses a 255 mm outside diameter, 4-hole bolt pattern, 55 mm centering diameter, and 43.2 mm height, with a nominal thickness of 20 mm and a minimum thickness of 18 mm. The UV coated finish is solvent free and adds protection to exposed surfaces, while the vented construction supports heat dissipation under repeated braking.

Brembo’s Premium UV Coated OE Equivalent Rotor line focuses on direct-fit replacement parts that restore braking performance without changing the original brake system layout. Part number 09.8545.11 is also referenced by several cross numbers, including Centric Parts 120.44119 and DuraGo BR31299, for the same application.

What It Is Used For

• Replacing a worn or warped front brake rotor.
• Addressing brake pulsation during stops.
• Reducing brake noise and vibration from rotor wear.
• Restoring braking consistency after rotor thickness loss.
• Correcting corrosion on the braking surface.

Installation Notes and Tips

Replace rotors and pads together to restore braking performance. Brembo recommends pairing this rotor with NAO/Ceramic or Low Met brake pad formulations. The included fixing screw kit supports straightforward installation, and the rotor marking identifies the part number and minimum thickness for service checks.

Quality Assurance

Brembo develops this rotor as an OE-equivalent replacement that meets or exceeds OEM specifications. The UV coating is designed for environmental protection, and the rotor is built to support reliable braking performance in normal service.
