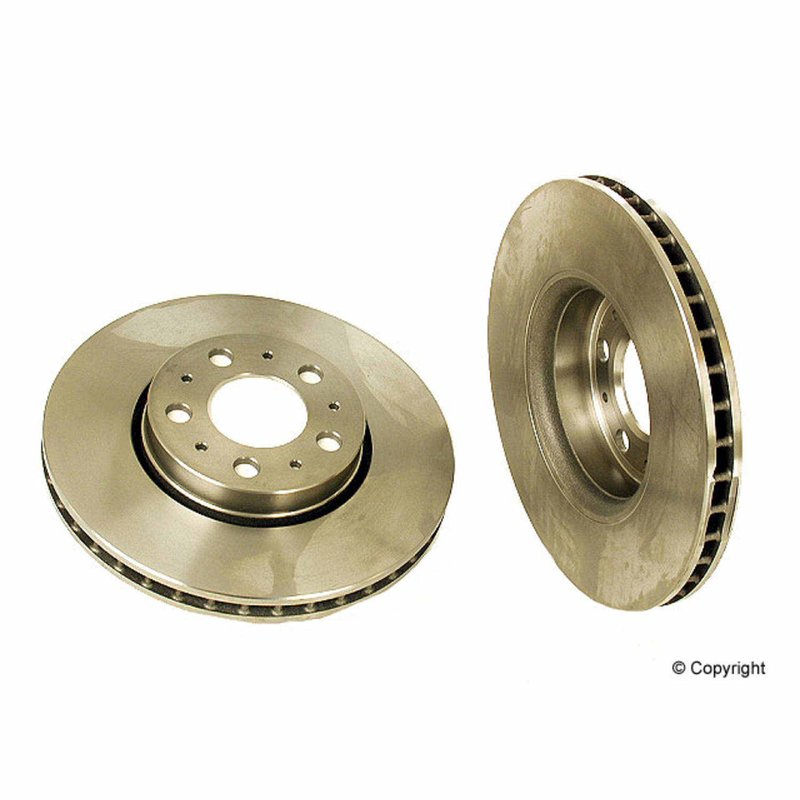

Brembo 09.8633.11 Disc Brake Rotor - Front

Overview of Brembo Premium UV Coated OE Equivalent Rotor

The Brembo 09.8633.11 disc brake rotor is engineered for Volvo models including the S60, S80, V70, and XC70. Designed with durability and performance in mind, this vented rotor features a UV-resistant coating to help prevent rust and maintain structural integrity over time.

• Material: Grey cast iron for reliable heat dissipation
• Centering Diameter: 68 mm for precise fitment
• Fixing Screws: Included for straightforward installation
• Height: 50.3 mm ensuring proper rotor thickness
• Minimum Thickness: 23 mm to maintain safety standards
• Nominal Thickness: 26 mm for optimal braking performance
• Number of Holes: 5 for secure mounting
• Outside Diameter: 286 mm compatible with specified Volvo models
• Rust Resistant Coating: UV coated to reduce corrosion
• Rotor Type: Vented for improved heat management
• Torque Specification: 140 Nm for correct installation

About the Premium UV Coated OE Equivalent Rotor Line

The Brembo Premium UV Coated OE Equivalent Rotor line is designed to meet or exceed original equipment specifications. This product line focuses on providing rotors with enhanced corrosion resistance through UV coating, which helps extend the rotor's lifespan while maintaining consistent braking performance. The 09.8633.11 rotor is part of this line, offering a balance of durability and OE-level quality for Volvo vehicles.

Detailed Product Description

This Brembo disc brake rotor is constructed from grey cast iron, a material known for its excellent thermal conductivity and wear resistance. The vented design allows for better heat dissipation during braking, reducing the risk of brake fade under demanding conditions. With a 286 mm outside diameter and 5 mounting holes, it is specifically engineered for Volvo S60, S80, V70, and XC70 models. The rotor’s UV coating provides a protective layer against rust, which is particularly beneficial in humid or corrosive environments. Included fixing screws and a torque specification of 140 Nm ensure proper and secure installation.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Volvo S60, S80, V70, and XC70
• Improves braking consistency by restoring proper rotor thickness
• Reduces brake noise and vibration caused by uneven rotor surfaces
• Prevents rust and corrosion that can compromise braking efficiency
• Supports safe braking performance under normal and heavy use conditions

Installation Notes and Tips

• Ensure the rotor matches the vehicle’s specifications: Volvo S60, S80, V70, or XC70
• Use the included fixing screws and tighten to the recommended 140 Nm torque
• Check rotor thickness before installation; do not install if below 23 mm minimum thickness
• Clean the rotor surface before installation to remove any protective coatings or debris
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Brembo rotors are manufactured to meet strict quality standards, ensuring reliable performance and durability. The Premium UV Coated OE Equivalent Rotor line undergoes rigorous testing to comply with original equipment specifications. Warranty details are provided by Brembo and typically cover manufacturing defects; please refer to Brembo’s official documentation for specific warranty terms.
