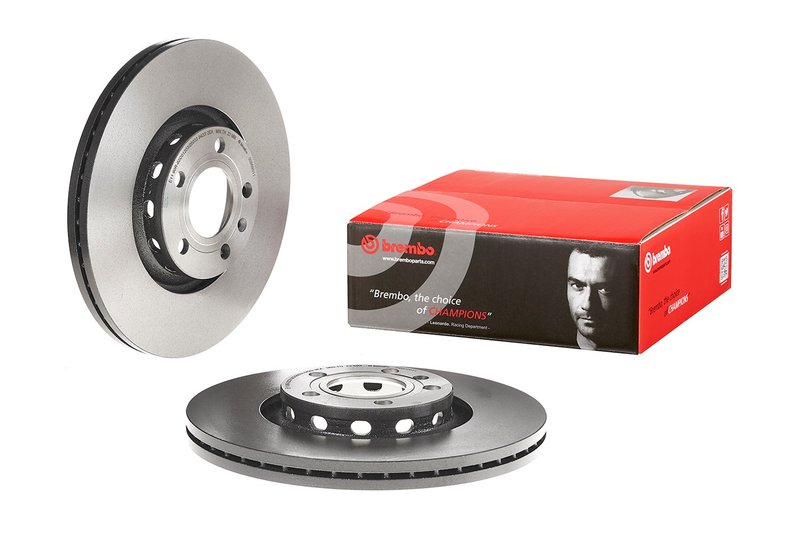

Brembo 09.8690.11 Disc Brake Rotor - Front

Product Overview

Brembo 09.8690.11 is a premium UV coated disc brake rotor built as a direct replacement that meets or exceeds OEM specifications. It is engineered for front brake applications on select Audi models and uses a vented, high-carbon design for stable braking performance and improved comfort.

Key Features

• UV coated surface helps protect the rotor, including the braking plate surfaces.
• High carbon cast iron construction helps reduce noise and vibration.
• Vented rotor design supports consistent heat management.
• Includes fixing screws for a simpler installation process.
• Intelligent marking shows the part number and minimum thickness.

Detailed Description

This Brembo rotor is designed for drivers replacing worn front brake rotors on Audi A4, Audi A4 Quattro, Audi A6, Audi A6 Quattro, Audi A8, and Audi A8 Quattro applications. The 312 mm outside diameter, 5-hole pattern, 68 mm centering diameter, and 46.2 mm height match the listed fitment requirements, while the 23 mm minimum thickness and 25 mm nominal thickness provide the service dimensions needed for proper brake service. Brembo 09.8690.11 is a practical OE-equivalent choice for restoring braking feel and maintaining the original braking system geometry.

Fits 2002-2006 Audi A4, front. Fits 2002-2006 Audi A4 Quattro, front. Fits 2001-2004 Audi A6, front. Fits 2000-2004 Audi A6 Quattro, front. Fits 2000 Audi A6, front. Fits 2000 Audi A8 Quattro, front. Fits 1997-1999 Audi A8, front. Fits 1997-1999 Audi A8 Quattro, front.

What It Helps Solve

• Brake pulsation from a worn or uneven rotor surface.
• Noise and vibration during braking.
• Reduced braking performance from rotor wear below service limits.
• Corrosion on exposed rotor surfaces.
• Loss of braking consistency under normal driving conditions.

Installation Notes and Tips

Confirm rotor dimensions, bolt pattern, and minimum thickness before installation. Brembo recommends replacing rotors and pads together to restore braking performance. This part cross-references Centric Parts (e.g., 121.33107, 125.33107) for the same application.

Quality Assurance

Brembo develops this UV coated rotor as an OE-equivalent replacement with specifications intended to meet or exceed OEM requirements. The brand’s braking focus and high-carbon rotor construction support consistent fit and performance for the listed Audi applications.
