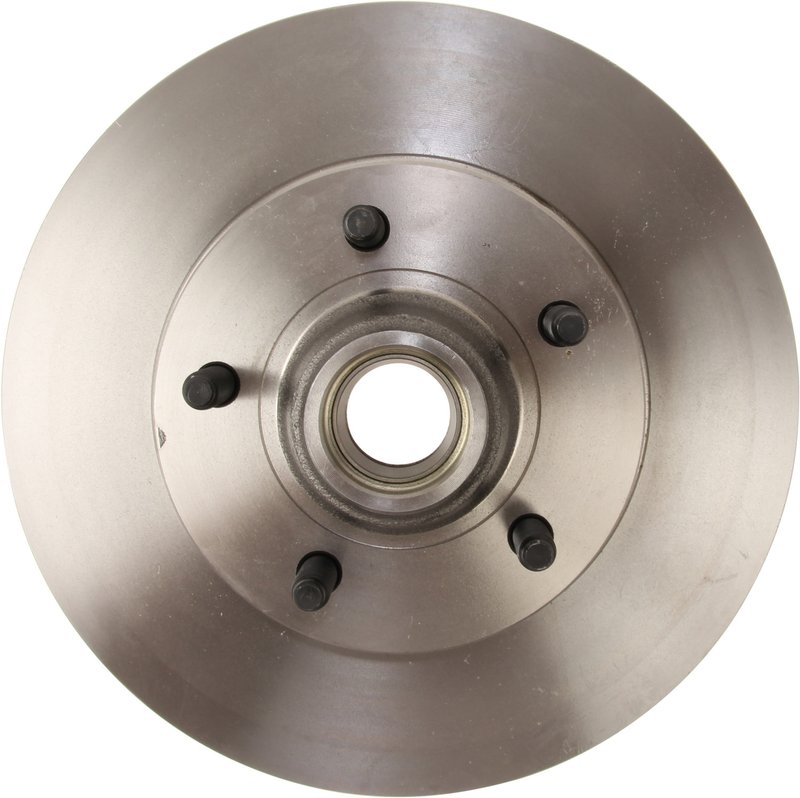

Brembo 09.8816.80 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor for Ford F-150

Brembo 09.8816.80 is a Premium OE Equivalent Rotor built as a direct replacement for select Ford F-150 and Lincoln Blackwood front brake applications. This vented front disc brake rotor uses grey cast iron construction and a UV-coated surface to help protect the braking plate and exposed surfaces.

Key Features

• Premium OE equivalent replacement rotor for front brake service
• UV-coated finish for added surface protection and cleaner handling during installation
• Grey cast iron construction for stable braking performance
• Vented rotor design with 308 mm outside diameter
• Nominal thickness: 26.3 mm; minimum thickness: 24.7 mm
• 5-hole bolt pattern with 104 mm height
• Intelligent marking location shows part number and minimum thickness

Product Details

The Brembo Premium OE Equivalent Rotor line focuses on direct-fit replacement rotors that meet or exceed OEM specifications. For this application, Brembo 09.8816.80 uses a solvent-free UV coating to help protect the disc surface, including the braking plate surfaces, while the vented grey cast iron design supports consistent braking feel. Brembo also recommends replacing rotors and pads together to restore braking performance, and pairing this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations.

Fits 2000 Ford F-150, front; fits 2001 Ford F-150, front; fits 2002-2003 Ford F-150, front; fits 2004 Ford F-150 Heritage, front; fits 2002 Lincoln Blackwood, front. This part cross-references PowerStop AR8583 and Raybestos Brakes 66997FZN for the same application.

Common Brake Issues This Rotor Can Address

• Brake pulsation caused by rotor wear or thickness variation
• Noise and vibration during braking
• Reduced braking consistency from worn front rotors
• Surface corrosion on exposed rotor areas
• Loss of braking performance from rotors worn near minimum thickness

Installation Notes and Tips

Verify front axle fitment, wheel bolt size, and vehicle configuration before installation. This rotor is listed for 5-stud Ford F-150 and Ford F-150 Heritage applications with 14 mm wheel bolts and specific GVW requirements, plus the 2002 Lincoln Blackwood front position. Inspect pads, calipers, and hub surfaces during service, and replace pads and rotors together when restoring braking performance.

Quality Assurance

Brembo develops this rotor as a direct replacement that meets or exceeds OEM specifications. The UV-coated finish, vented design, and intelligent wear marking support accurate service and dependable brake maintenance for select Ford F-150 and Lincoln Blackwood front brake applications.
