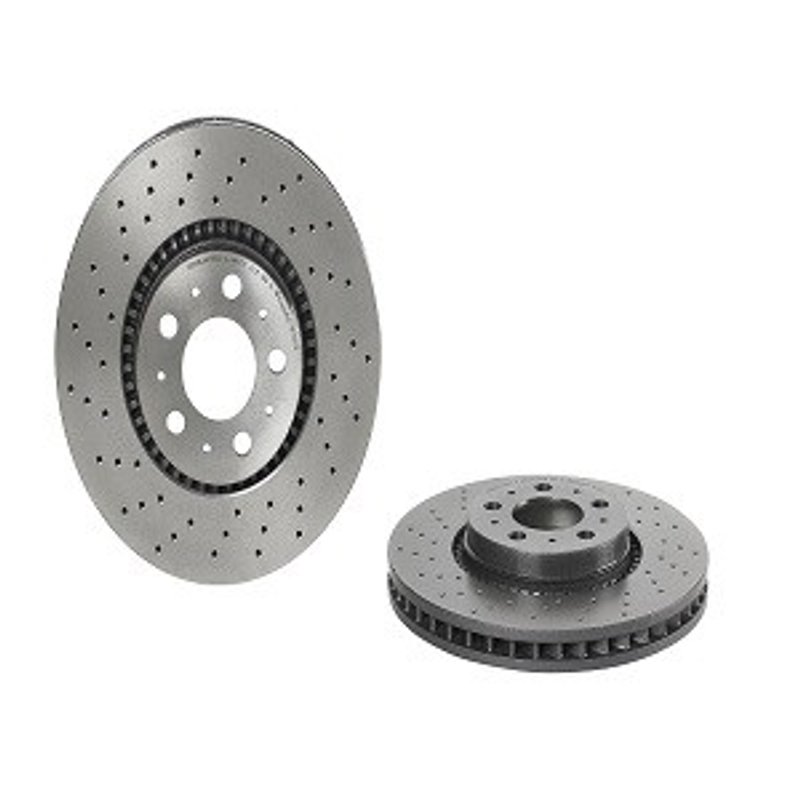

Brembo 09.9130.1X Disc Brake Rotor - Front

Overview of Brembo Premium Xtra Cross Drilled UV Coated Rotor

The Brembo Premium Xtra Cross Drilled UV Coated Rotor (Part Number 09.9130.1X) is engineered for reliable braking performance on select Volvo models. Designed with durability and heat dissipation in mind, this disc brake rotor suits Volvo S60, S80, V70, and XC70 vehicles requiring precise fitment and consistent stopping power.

• Material: Grey cast iron for strength and heat resistance
• Braking Surface: Cross drilled to improve heat dissipation and reduce brake fade
• UV Coated Rust Resistant Finish for extended rotor life
• Vented rotor design enhances cooling during heavy braking
• Dimensions: 305 mm outside diameter, 50.3 mm height, 28 mm nominal thickness
• Centering Diameter: 68 mm with 5 fixing holes and included screws
• Torque Specification: 140 Nm for proper installation

Detailed Product Description

This Brembo disc brake rotor is constructed from grey cast iron, a material known for its durability and thermal conductivity. The cross drilled braking surface allows for improved heat dissipation, which helps maintain braking efficiency under demanding conditions. The rotor features a vented design to further enhance cooling and reduce the risk of warping. A UV coating provides rust resistance, protecting the rotor from corrosion and extending its service life. With a 305 mm outside diameter and a nominal thickness of 28 mm, this rotor meets the specifications required for Volvo S60, S80, V70, and XC70 models. The part number 09.9130.1X ensures exact fitment and compatibility.

About the Premium Xtra Cross Drilled UV Coated Rotor Line

The Premium Xtra Cross Drilled UV Coated Rotor line by Brembo focuses on combining advanced surface treatments with structural enhancements. The UV coating offers a protective layer against rust, while the cross drilled design improves heat management during braking. This product line is tailored for drivers who require rotors that maintain performance and durability over time, especially in vehicles like the Volvo S60, S80, V70, and XC70.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Volvo S60, S80, V70, and XC70
• Improves heat dissipation to reduce brake fade during extended use
• Addresses corrosion issues with UV coated rust-resistant surface
• Enhances braking consistency with vented rotor design
• Ensures proper fitment and torque specifications for safe installation

Installation Notes and Tips

• Ensure rotor surface and hub are clean before installation
• Use the included fixing screws and torque to 140 Nm as specified
• Check rotor thickness; minimum thickness is 25.8 mm for safe operation
• Verify centering diameter of 68 mm matches vehicle hub
• Inspect brake pads for wear and replace if necessary during rotor installation

Quality Assurance and Warranty

Brembo rotors are manufactured to meet strict quality standards for material composition and dimensional accuracy. The Premium Xtra Cross Drilled UV Coated Rotor undergoes rigorous testing to ensure durability and performance. While specific warranty details are not provided here, Brembo products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
