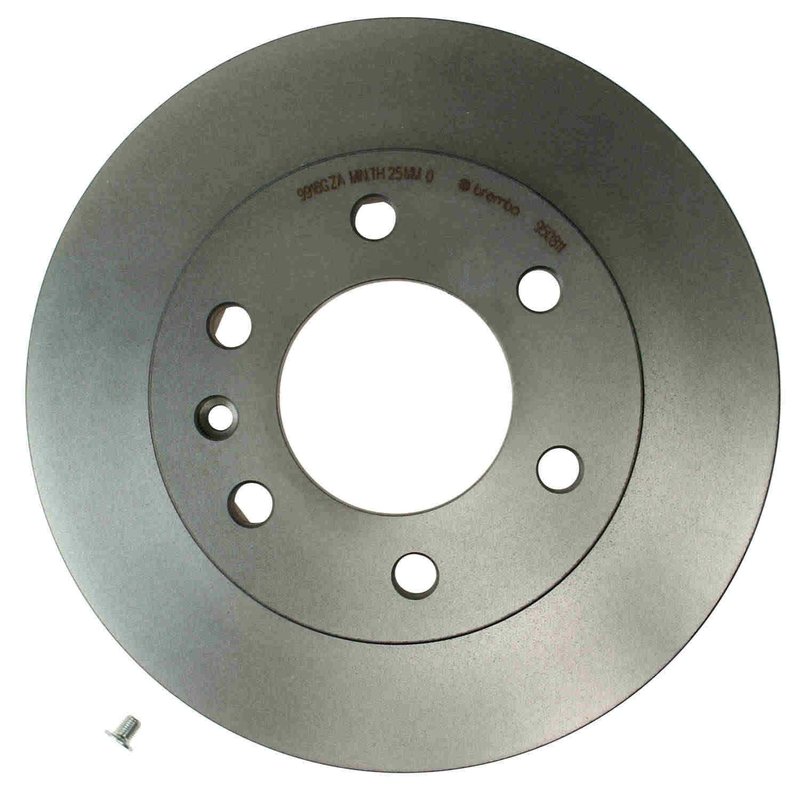

Brembo 09.9508.11 Disc Brake Rotor - Front

Overview of Brembo Disc Brake Rotor 09.9508.11

The Brembo Premium UV Coated OE Equivalent Rotor 09.9508.11 is engineered for reliable braking performance on Dodge Sprinter 2500 and Sprinter 3500 models. Designed with high carbon material and a UV resistant coating, this rotor offers durability and consistent stopping power under demanding conditions.

• High carbon material for enhanced heat dissipation
• UV coated rust-resistant finish for extended rotor life
• Centering diameter of 85 mm for precise fitment
• Nominal thickness of 28 mm with minimum thickness of 25 mm
• 300 mm outside diameter with 6 mounting holes
• Includes fixing screws for straightforward installation
• Private vented (Pvt) rotor design for improved cooling
• Torque specification of 175 Nm for proper mounting

Detailed Product Features and Specifications

This Brembo disc brake rotor is constructed from high carbon steel, which improves thermal conductivity and reduces the risk of warping during heavy braking. The rotor measures 300 mm in outside diameter and 68.5 mm in height, making it compatible with the braking system requirements of Dodge Sprinter 2500 and Sprinter 3500 vehicles. Featuring a centering diameter of 85 mm and six mounting holes, it ensures a secure and precise fit. The rotor’s nominal thickness is 28 mm, with a minimum thickness threshold of 25 mm to maintain optimal braking performance and safety.

The rotor is coated with a UV resistant finish that protects against rust and corrosion, extending the service life of the part. This rotor is a private vented (Pvt) type, which enhances heat dissipation during braking cycles. Included fixing screws simplify the installation process, and the recommended torque specification for mounting is 175 Nm.

About the Premium UV Coated OE Equivalent Rotor Line

The Brembo Premium UV Coated OE Equivalent Rotor line is designed to meet or exceed original equipment standards while providing additional protection against environmental factors. The UV coating applied to these rotors helps prevent rust and corrosion, which is particularly beneficial for vehicles like the Dodge Sprinter 2500 and Sprinter 3500 that may be exposed to harsh weather conditions. This product line focuses on delivering consistent braking performance with durability comparable to OEM parts.

Applications and Problem Solving

• Replacement rotor for worn or warped disc brakes on Dodge Sprinter 2500 and Sprinter 3500
• Addresses brake pulsation caused by uneven rotor thickness
• Prevents rust-related rotor degradation with UV coating
• Improves braking consistency under heavy load or frequent stop conditions
• Suitable for restoring braking performance after rotor damage or scoring

Installation Notes and Tips

• Ensure rotor thickness meets minimum 25 mm specification before installation
• Use included fixing screws and torque to 175 Nm for secure mounting
• Clean hub surface and rotor mounting area to prevent misalignment
• Check brake pads for wear and replace if necessary during rotor installation
• Follow vehicle manufacturer guidelines for brake system maintenance

Quality Assurance and Warranty

Brembo rotors are manufactured to meet strict quality standards, ensuring reliable performance and safety. The Premium UV Coated OE Equivalent Rotor 09.9508.11 undergoes rigorous testing for material integrity and dimensional accuracy. While specific warranty details are not provided here, Brembo products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
