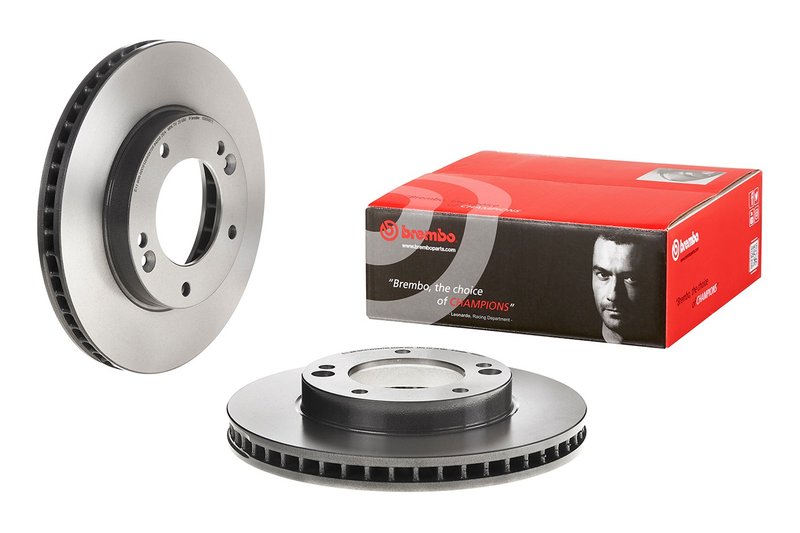

Brembo 09.9545.11 Disc Brake Rotor - Front
| Brand | Brembo 09.9545.11 |
|---|---|
| Position | Front |
| Material | High carbon |
| Centering Diameter (MM) | 96.3 |
| Height (MM) | 54 |
| Minimum Thickness (MM) | 26 |
| Nominal Thickness (MM) | 28 |
| Number of Holes | 5 |
| Outside Diameter (MM) | 302 |
| Rust Resistant Coating | Uv coated |
| Solid Or Vented Type Rotor | Vented |
| Torque Spec(NM) | 110 |
| Product line | PRIME UV Coated |
| Fits | Kia · 4 vehicles |
OE-style replacement. Direct-fit rotor for front brake service on select applications.
UV-coated surface. Helps protect exposed rotor areas from corrosion.
Vented high-carbon design. Supports heat control and quieter, smoother braking.
Cross-references DuraGo BR31386, Raybestos Brakes 980325 and Walker Exhaust 31386 for the same application. See all 12.
Front Brake Rotor for Kia Sorento
Brembo PRIME UV Coated rotor 09.9545.11 is a direct replacement disc brake rotor for select 2003-2006 Kia Sorento front applications. It combines a UV-coated surface with a vented, high-carbon cast iron design to support consistent braking performance and reduced noise and vibration.
Key Features
- Direct replacement disc brake rotor for front brake service
- UV-coated surface protects the disc and braking plate surfaces from corrosion
- High Carbon construction helps reduce noise and vibration where specified
- Vented rotor design supports heat management during braking
- Intelligent marking location shows the part number and minimum thickness
- Part number 09.9545.11 for easy identification and ordering
Detailed Description
Brembo PRIME UV Coated rotors are engineered as OE-style replacement parts for drivers who want a rotor that matches factory specifications while adding corrosion protection. This Brembo brake rotor uses a solvent-free UV coating and, where applicable, High Carbon cast iron to improve driving comfort and maintain stable braking feel. The 302 mm outside diameter, 5-hole bolt pattern, 96.3 mm centering diameter, and vented construction make this rotor a precise fit for the front axle on 2003-2006 Kia Sorento models. The Brembo 09.9545.11 rotor is also marked with minimum thickness information to simplify inspection and service decisions.
This part cross-references DuraGo BR31386 and Raybestos Brakes 980325 for the same application.
What It Helps Address
- Brake pulsation from worn or uneven front rotors
- Noise and vibration during normal braking
- Surface corrosion on exposed rotor areas
- Reduced braking consistency from heat buildup
- Service issues caused by rotors below minimum thickness
Installation Notes and Tips
Fits 2003-2006 Kia Sorento, front. Verify rotor dimensions, bolt pattern, and minimum thickness before installation. Brembo recommends replacing rotors and pads together to restore braking performance, and pairing this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations. Follow the vehicle torque specification of 110 Nm during wheel installation and confirm all brake components are clean and properly seated before returning the vehicle to service.
Quality Assurance
Brembo develops PRIME UV Coated rotors as direct replacement parts that meet or exceed OEM specifications. The UV coating is solvent free, and the rotor design is built around corrosion protection, serviceability, and consistent braking performance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Kia | Sorento | Front | PRIME UV Coated |
| 2005 | Kia | Sorento | Front | PRIME UV Coated |
| 2004 | Kia | Sorento | Front | PRIME UV Coated |
| 2003 | Kia | Sorento | Front | PRIME UV Coated |
| No rows match your filter. | ||||
