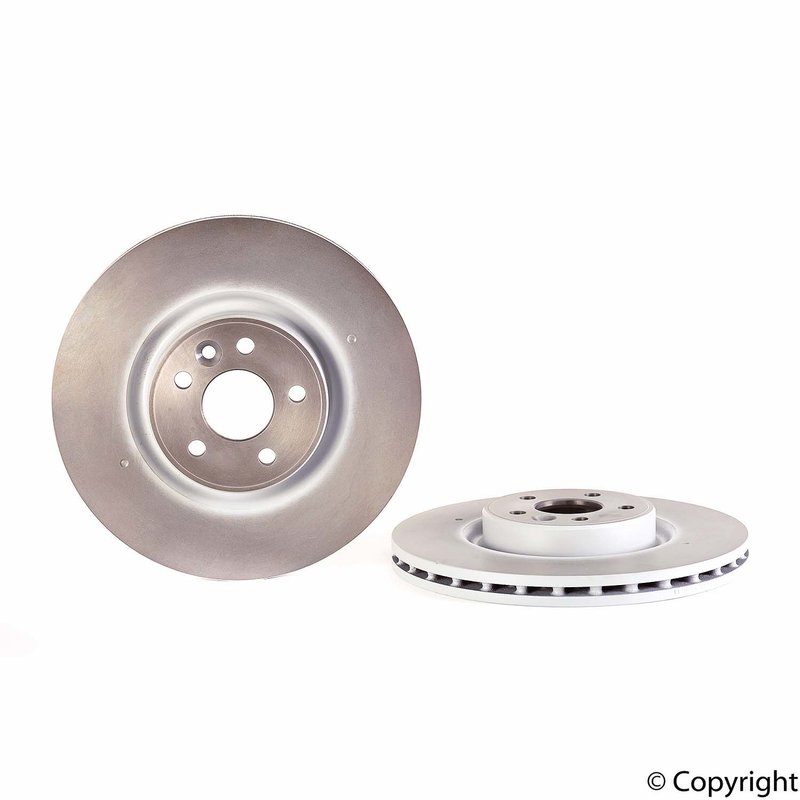

Brembo 09.9586.11 Disc Brake Rotor - Front

Overview of Brembo Premium UV Coated OE Equivalent Rotor

The Brembo 09.9586.11 disc brake rotor is engineered for Volvo models including the S60, S80, V60, V70, and XC70. Designed with high carbon material and a UV resistant coating, this rotor offers reliable performance and durability for your braking system.

• High carbon material for enhanced strength and heat dissipation
• UV coated rust-resistant finish to extend rotor life
• Solid vented (Pvt) rotor design for improved cooling
• 336 mm outside diameter with 5 mounting holes
• Centering diameter of 63.5 mm and height of 52 mm
• Nominal thickness of 28 mm with a minimum thickness of 26 mm
• Torque specification of 140 Nm for proper installation

Detailed Product Description

This Brembo disc brake rotor, part number 09.9586.11, is manufactured from high carbon steel to provide consistent braking performance and resistance to thermal stress. The rotor features a UV coated surface that protects against rust and corrosion, maintaining its integrity over time. Its solid vented (Pvt) design allows for effective heat dissipation, reducing the risk of brake fade during extended use. With an outside diameter of 336 mm and a precise centering diameter of 63.5 mm, this rotor is engineered to fit Volvo S60, S80, V60, V70, and XC70 models accurately. The rotor thickness specifications ensure it meets or exceeds OEM standards for safety and performance.

About the Premium UV Coated OE Equivalent Rotor Line

The Premium UV Coated OE Equivalent Rotor line by Brembo is designed to match original equipment specifications while providing enhanced corrosion resistance through a UV protective coating. This product line focuses on delivering rotors that maintain structural integrity and appearance over time, making them suitable replacements for Volvo vehicles requiring reliable braking components.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Volvo S60, S80, V60, V70, and XC70
• Addresses brake noise caused by uneven rotor surfaces
• Improves braking consistency by reducing heat-related fade
• Prevents rust and corrosion that can compromise rotor performance
• Restores proper rotor thickness for safe braking operation

Installation Notes and Tips

• Ensure rotor surface and hub are clean before installation
• Use the specified torque of 140 Nm when tightening mounting bolts
• Check rotor thickness before installation to confirm it meets minimum thickness of 26 mm
• Inspect brake pads for wear and replace if necessary during rotor installation
• Follow vehicle manufacturer guidelines for brake system maintenance

Quality Assurance and Warranty

Brembo rotors, including part number 09.9586.11, are manufactured to meet strict quality standards and OEM specifications. The high carbon material and UV coating contribute to durability and corrosion resistance. Warranty details should be confirmed with the point of purchase or Brembo directly, as coverage may vary by region.
